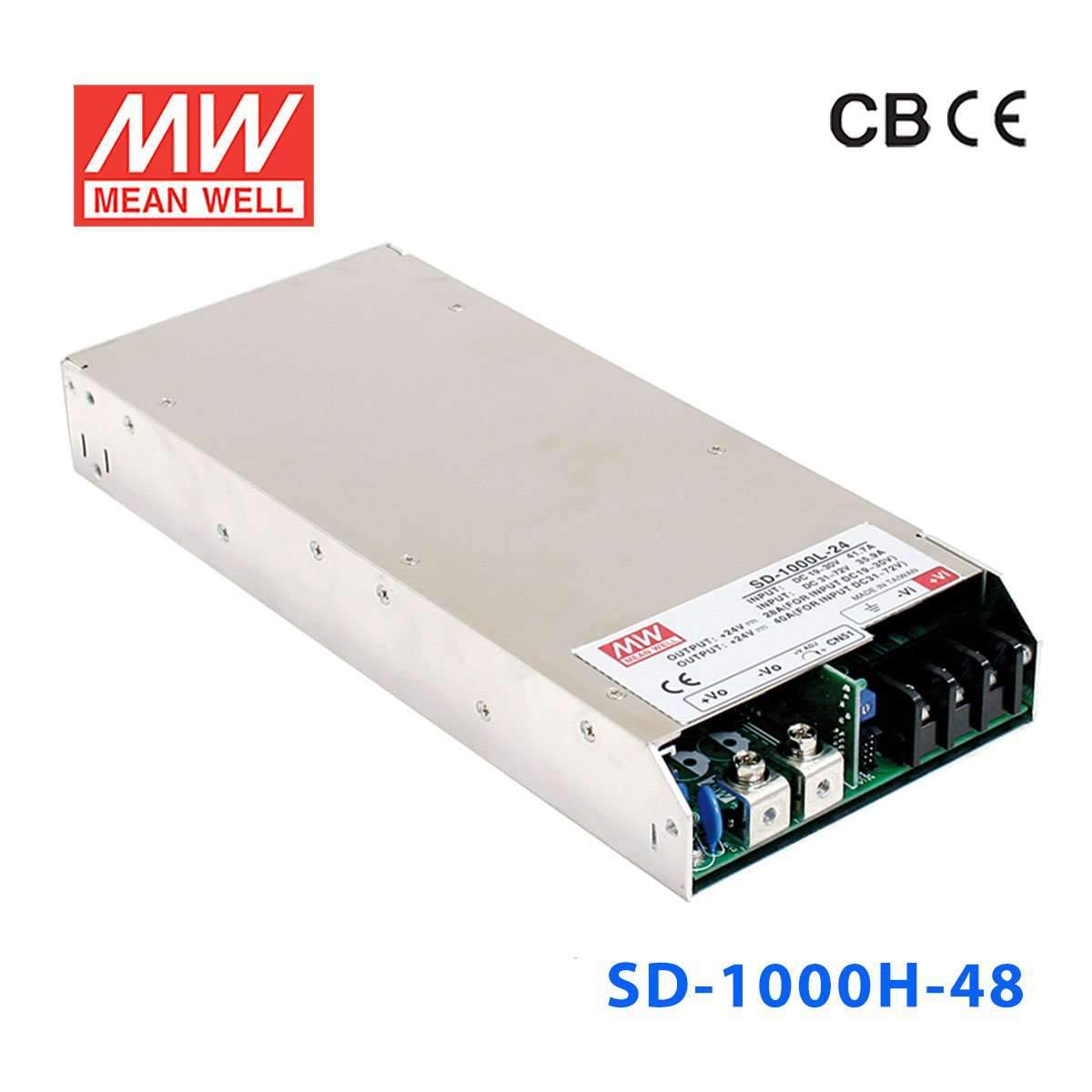

Mean Well SD-1000H-48 DC-DC Converter - 1000W - 72~144V in 48V out 21A
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well SD-1000H-48 DC-DC Converter - 1000W - 72~144V in 48V out 21A
Overview
SD-1000H-48 is the 48V output model of this series: rated current 21A, rated power 1008W, typical efficiency 92%.
Features
- 1U low profile 41mm
- High power density 10.7w/inch³
- 2000VAC I/O Isolation
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Output OK signal
- Built-in remote ON-OFF control
- Built-in remote sense function
- Forced air cooling by built-in DC fan with fan speed control
- 12V, 0.25A auxiliary output
- 3 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 48V
- RATED CURRENT
- 21A
- CURRENT RANGE
- 0 ~ 21A
- RATED POWER
- 1008W
- RIPPLE & NOISE (max.)Note.2
- 150mVp-p
- VOLTAGE ADJ. RANGE
- 46 ~ 60V
- VOLTAGE TOLERANCENote.3
- ±1.0%
- LINE REGULATION
- ±0.5%
- LOAD REGULATION
- ±0.5%
- SETUP, RISE TIME
- 500ms, 50ms at full load
INPUT
- VOLTAGE RANGENote.5
- 72 ~ 144VDC
- EFFICIENCY (Typ.)
- 92%
- DC CURRENT (Typ.)
- 11.6A/96VDC
- INRUSH CURRENT (Typ.)
- 100A/96VDC
PROTECTION
- OVERLOAD
- 105 ~ 125% rated output power Protection type : Constant current limiting, unit will shut down o/p voltage after about 5sec. Re-power on to recover
- OVER VOLTAGE
- 62 ~ 68V Protection type : Shut down o/p voltage, re-power on to recover
- OVER TEMPERATURE
- Shut down o/p voltage, recovers automatically after temperature goes down
FUNCTION
- REMOTE ON/OFF CONTROL
- Please refer to function manual
- OUTPUT OK SIGNAL
- Open collector signal low when PSU turns on, maximum, sink current :10mA
ENVIRONMENT
- WORKING TEMP.
- -20 ~ +60℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +85℃, 10 ~ 95% RH non-condensing
- TEMP. COEFFICIENT
- ±0.02%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- IEC62368-1 CB approved by TUV, TUV BS EN/EN62368-1, AS/NZS62368.1, EAC TP TC 004 approved
- WITHSTAND VOLTAGE
- I/P-O/P:2KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55032 (CISPR32), EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,6,8, light industry level, EAC TP TC 020
OTHERS
- MTBF
- 898.2K hrs min. Telcordia SR-332 (Bellcore) ; 106.7K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 295*127*41mm (L*W*H)
- PACKING
- 1.94Kg; 6pcs/12.6Kg/1.15CUFT
Test conditions and notes6
- 1. All parameters NOT specially mentioned are measured at 48, 96VDC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 720mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to "EMI testing of component power supplies." (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
- 5. Derating may be needed under low input voltages. Please check the derating curve for more details.
- 6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
Technical drawings
Downloads
FAQ
Can I use the SD-1000H-48 for 48V telecom or network power systems?
Yes, this model is a constant-voltage 48V converter with a 72-144V input range, which aligns with many 48V DC system architectures. Its 1008W output rating and 21A maximum output current suit higher-power 48V equipment loads.
Is the SD-1000H-48 suitable for industrial 48V automation or motion-control subsystems?
It can be used where the source voltage is within 72-144V and the downstream equipment requires regulated 48V DC. The 1008W capacity and 21A output make it appropriate for heavier 48V loads than smaller automation converters.
Can this converter support 48V IT or communications equipment in a rack-mounted setup?
Yes, the 41mm-high case (295 x 127 x 41mm) is relevant for rack or cabinet integration where a 48V DC rail is required. The output is 48V at up to 21A, and the feature set includes remote ON/OFF control, remote sense, and a 12V/0.25A auxiliary output.
How does the SD-1000H-48 differ from the other SD-1000H and SD-1000L models?
The listed high-power siblings split into 12V at 60A and 720W, 24V at 40A and 960W, and 48V at 21A and 1008W across both H and L versions. The SD-1000H-48 is the 48V, 21A, 1008W member of the H-input group with a 72-144V input range.
Can the SD-1000H-48 be used outdoors or in demanding temperature conditions?
Its operating temperature range is listed as -20°C to +60°C, so the temperature capability is defined within those limits. No IP rating appears in the provided specs, so this page does not indicate outdoor sealing or water ingress protection.
