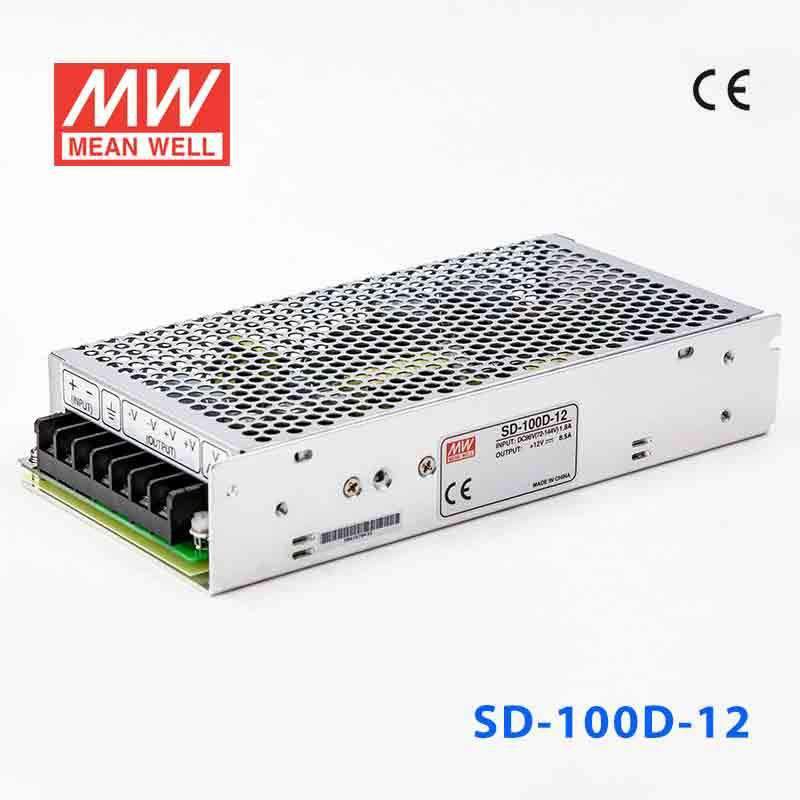

Mean Well SD-100D-12 DC-DC Converter - 100W - 72~144V in 12V out
The SD-100D is a 100W Mean Well power converter (input range: 9.5~18VDC).
Key Features
- ✓ Input voltage range: 9.5~18VDC
- ✓ DC output voltage adjustable ±10%
- ✓ 1.5KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage
- ✓ Safety approvals: IEC62368-1 CB
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesSD Series
-
Power Rating102 Watt
-
Output Voltage12 Volt
-
Rated Current8.5 Ampere
-
Input Voltage72V~144V
-
No of Output1
-
Dimming ControlNone
-
Standards MetEAC
-
Operation ModeConstant Voltage
-
Operating Temperature-15°C~60°C
-
Warranty3 Year
-
Length7.83 in
-
Width3.86 in
-
Height1.5 in
-
Weight1.43 lb
::specification::
Frequently Asked Questions
Can I use the SD-100D-12 to power a 12V PLC or HMI from a 72-144V DC source?
Yes. This converter accepts 72-144V input and delivers regulated 12V constant-voltage output. Its 102W, 8.5A rating suits many 12V PLC, HMI, and panel-control loads on high-voltage DC systems.
Is the SD-100D-12 appropriate for 12V communication or monitoring equipment in industrial cabinets?
It is intended for 12V electronics that need stable constant-voltage power from a 72-144V source. The 8.5A output current and 102W capacity make it suitable for moderate-power communication, monitoring, and control devices. The 2:1 input range helps when the upstream DC bus varies within that 72-144V window.
Can this model support 12V embedded or automation devices on a 96V or 110V DC bus?
It is designed for high-voltage DC inputs within 72-144V, so it fits systems built around that bus range. On the output side, it provides 12V at up to 8.5A with a total power limit of 102W. That makes it a practical match for 12V embedded controllers and automation electronics that stay within those limits.
Is the SD-100D-12 meant for indoor or outdoor use?
No IP rating is listed, so this model is better treated as a protected indoor chassis-mount converter rather than an exposed outdoor unit. Its operating temperature range is -15°C to +60°C. For outdoor cabinets, additional environmental protection would normally be required.
What is the main difference between the SD-100D-12 and the other SD-100D versions?
The SD-100D family shares the same high-voltage input class, but the outputs differ. SD-100D-12 is 102W at 12V and 8.5A, SD-100D-24 is 100.8W at 24V and 4.2A, and SD-100D-5 is 100W at 5V and 18A. That means the choice within this group is mainly output voltage and available current at roughly the same 100W class.
