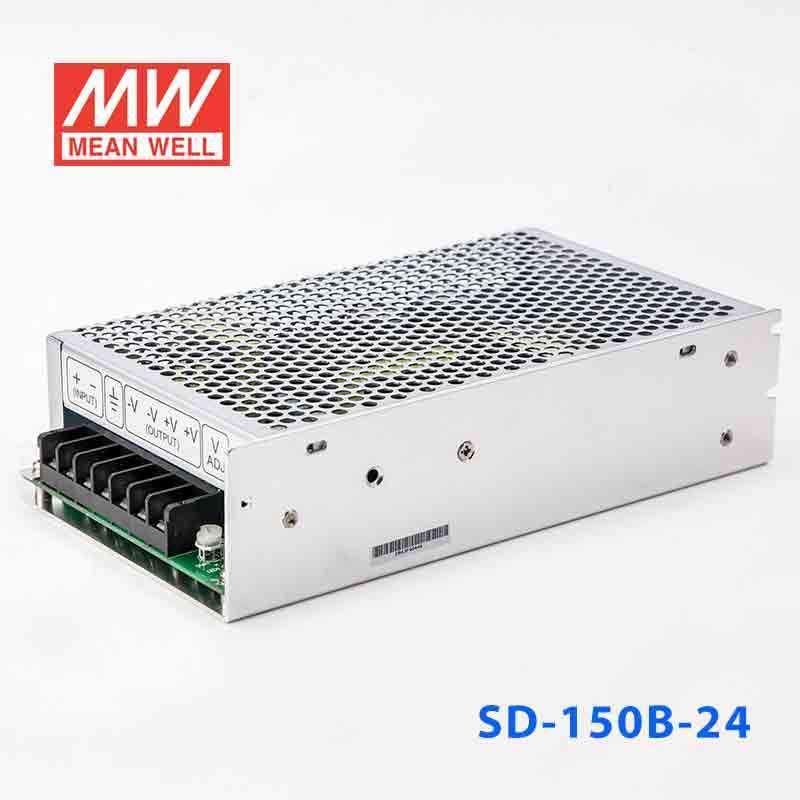

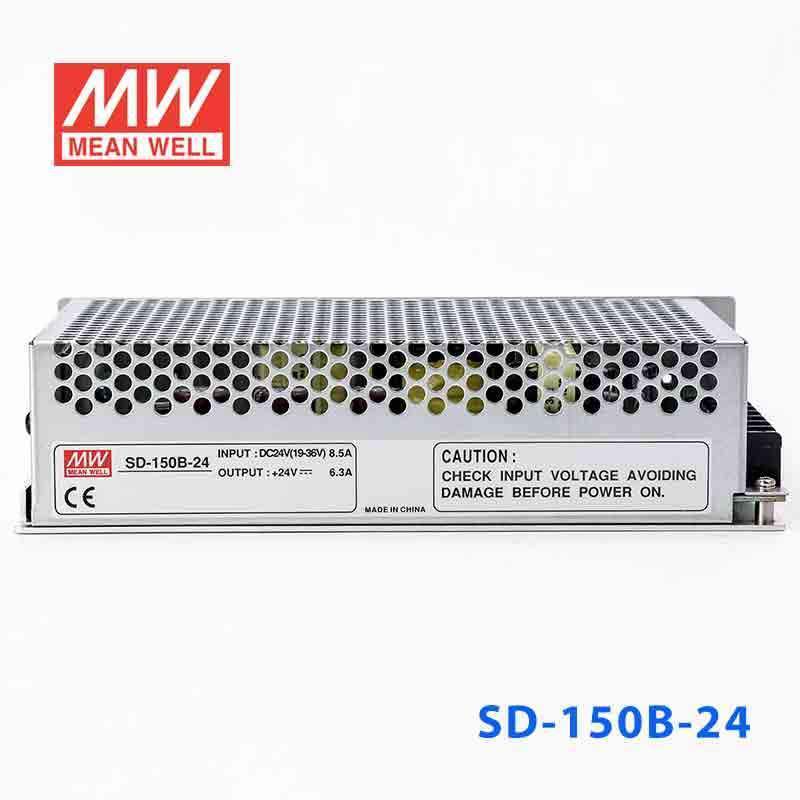

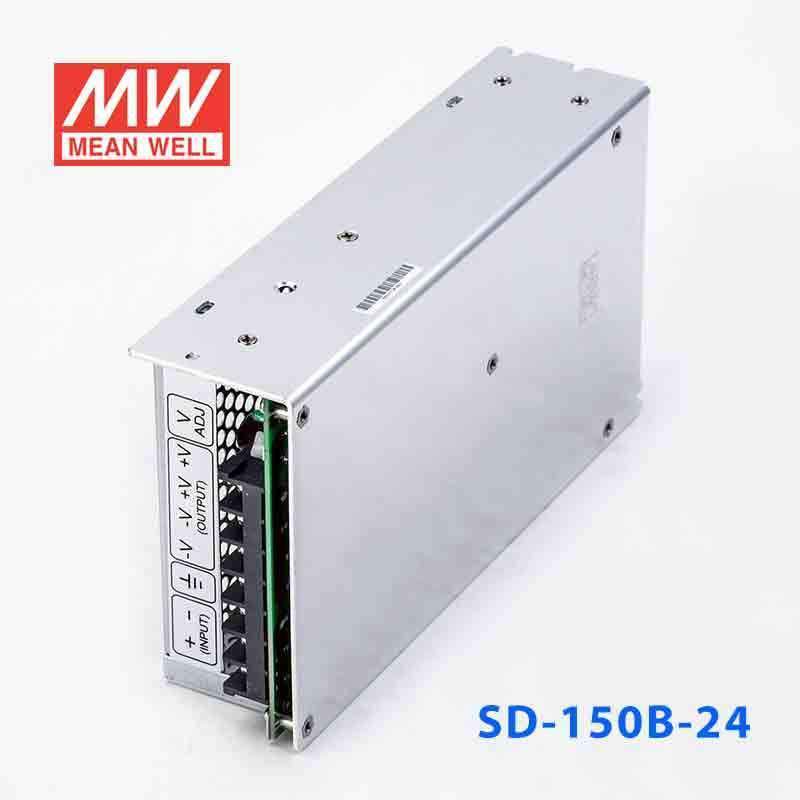

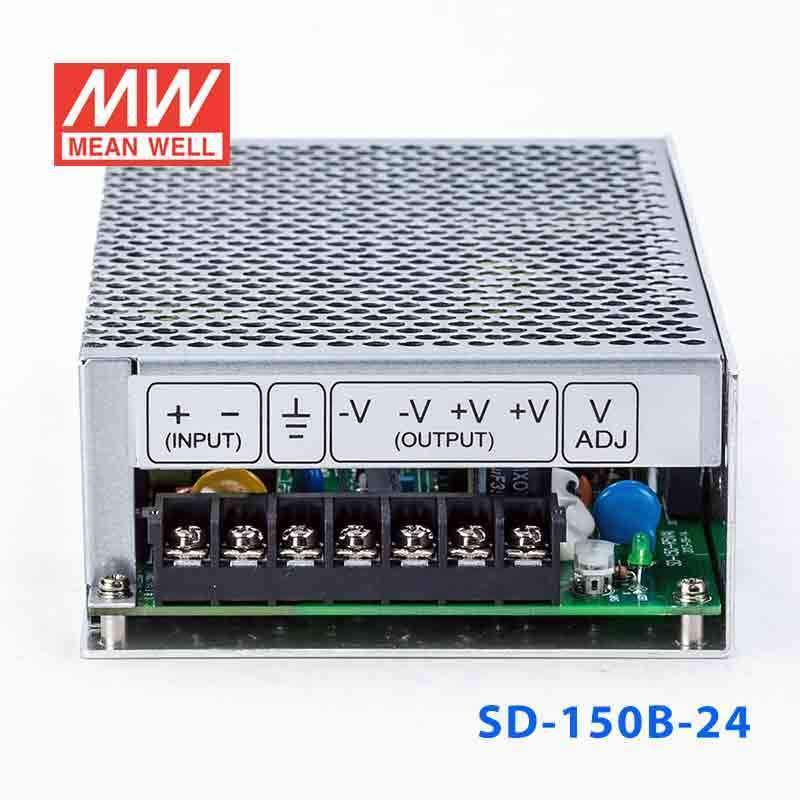

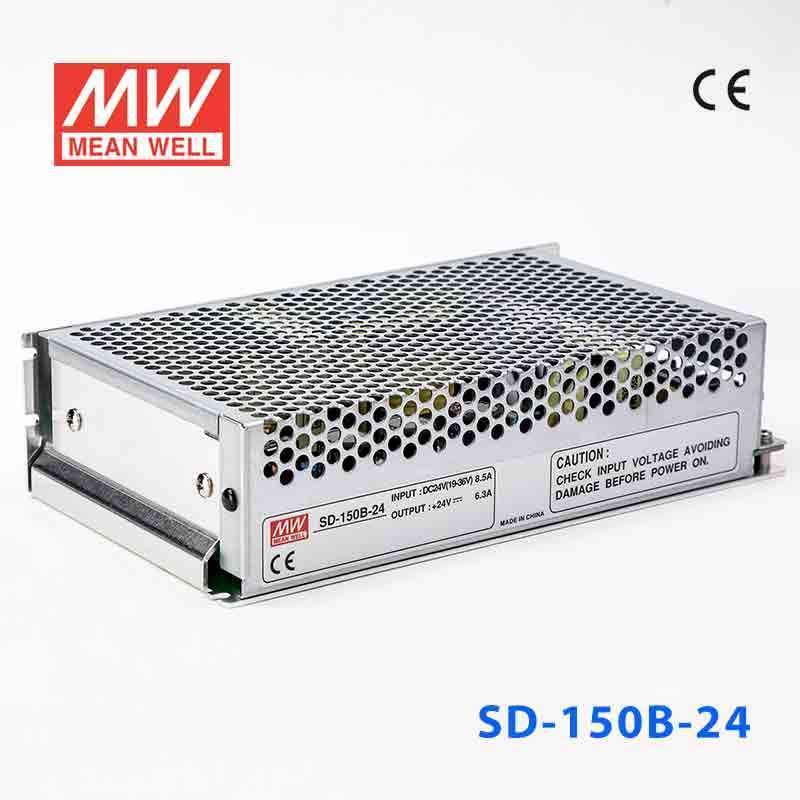

Mean Well SD-150B-24 DC-DC Converter - 150W - 19~36V in 24V out
Description
Description
· 2:1 wide input range
· Protections: Short circuit / Overload
/ Over voltage
· 1500VAC I/O isolation
· Built-in EMI filter, low ripple noise
· 100% full load burn-in test
· 24V and 48V input voltage design refer to LVD
· Low cost
· High reliability
· 2 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesSD Series
-
Power Rating151.2 Watt
-
Output Voltage24 Volt
-
Rated Current6.5 Ampere
-
Input Voltage19V~36V
-
No of Output1
-
Dimming ControlNone
-
Standards MetEAC
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~60°C
-
Warranty3 Year
-
Length7.83 in
-
Width4.33 in
-
Height1.97 in
-
Weight1.9 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the SD-150B-24 to power a 24V PLC or automation controller from a 19-36V DC system?
Yes, this model is a constant-voltage 24V DC-DC converter with a 19-36V input range. It can deliver up to 6.5A and 151.2W, which fits 24V control and automation loads that stay within those limits.
Is the SD-150B-24 suitable for 24V industrial sensors, relays, and HMI loads on a mobile or battery-based DC bus?
It is designed for 24V output from a 19-36V input range, so it fits DC systems operating in that window. With 6.5A output current and 151.2W available, it is appropriate for grouped 24V control loads that require regulated constant-voltage power.
Can this converter support a 24V embedded computer or communications device in a vehicle or equipment cabinet?
It can be used where the source is 19-36V and the load requires a regulated 24V output. The 151.2W rating and 6.5A output make it a fit for 24V embedded and communications equipment that stays within that power budget.
Is the SD-150B-24 rated for outdoor or washdown environments?
No IP rating is listed for this unit, so it is better suited to protected indoor enclosures rather than exposed outdoor or washdown locations. The published operating temperature range is -10°C to +60°C, which defines the stated environmental range.
How does the SD-150B-24 compare with the other SD-150 series models?
Within the SD-150 group, the 12V models are SD-150B-12, SD-150C-12, and SD-150D-12, each rated at 150W and 12.5A. The 24V models are SD-150B-24, SD-150C-24, and SD-150D-24, each rated at 151.2W and 6.5A. The main difference between B, C, and D versions is the input range: B is 19-36V, C is 36-72V, and D is 72-144V.
