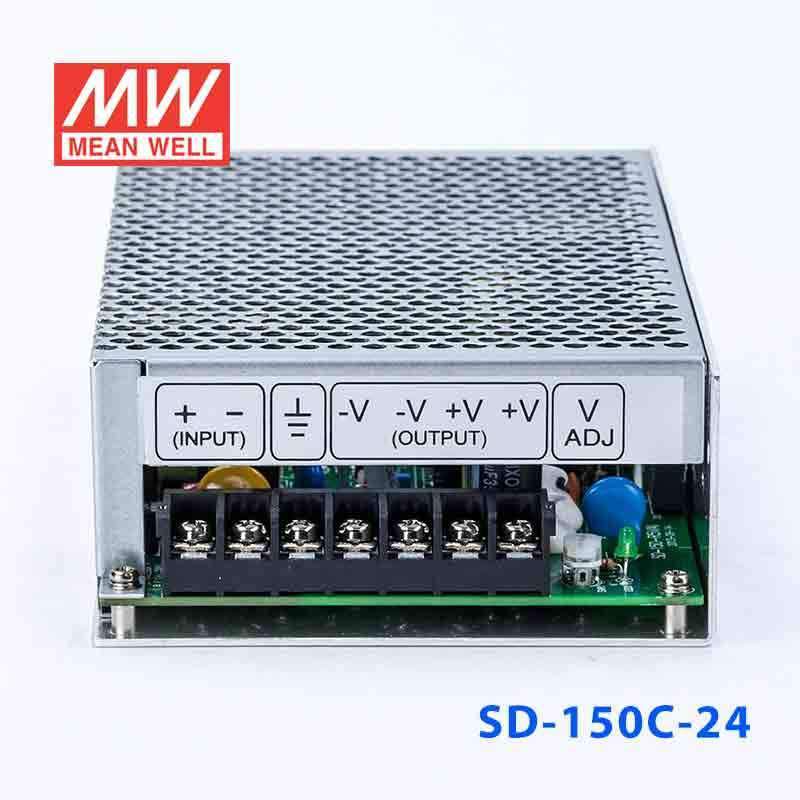

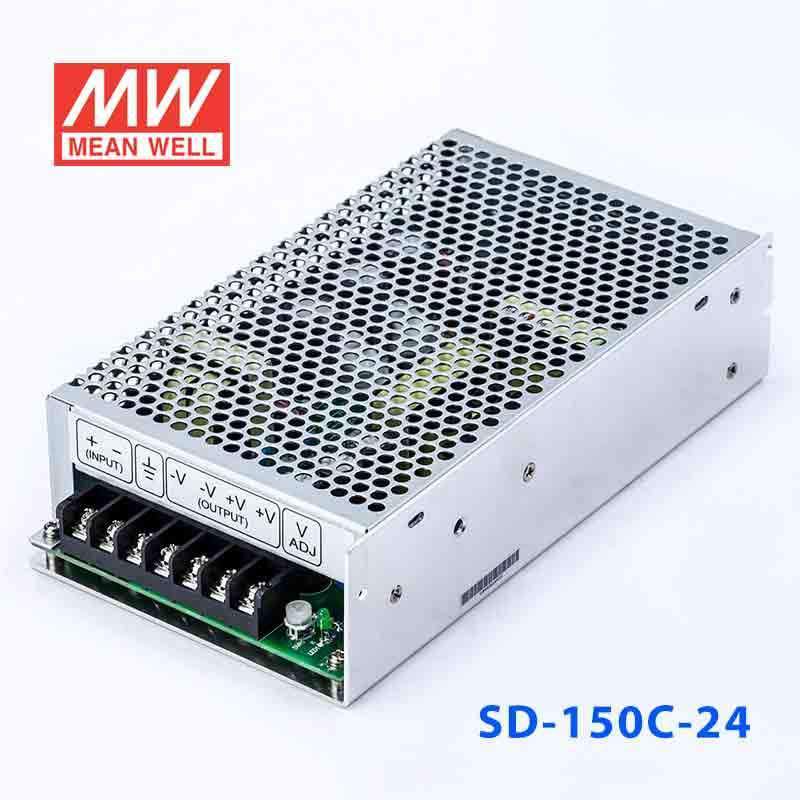

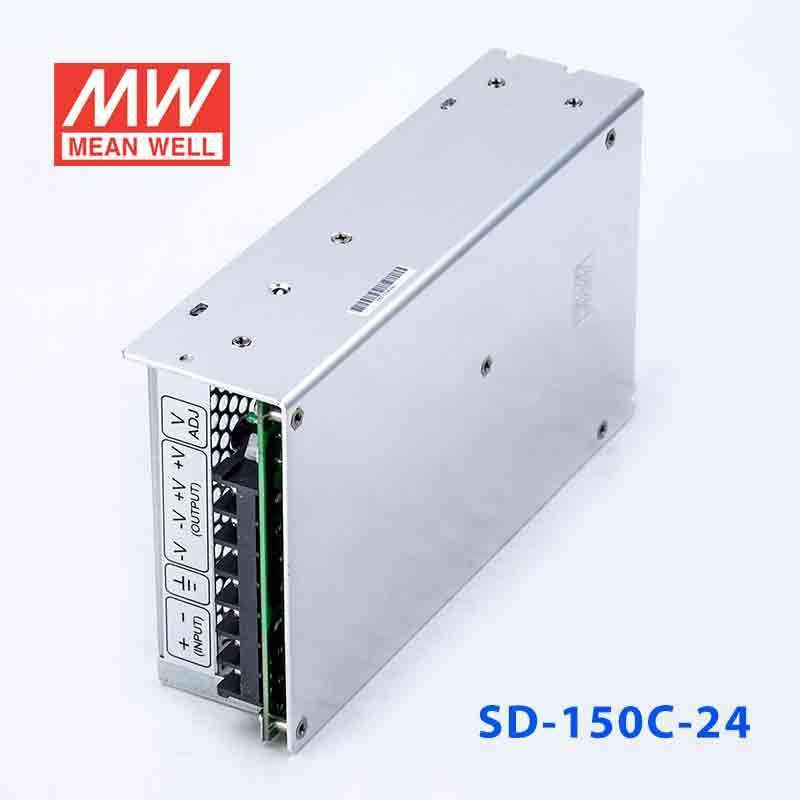

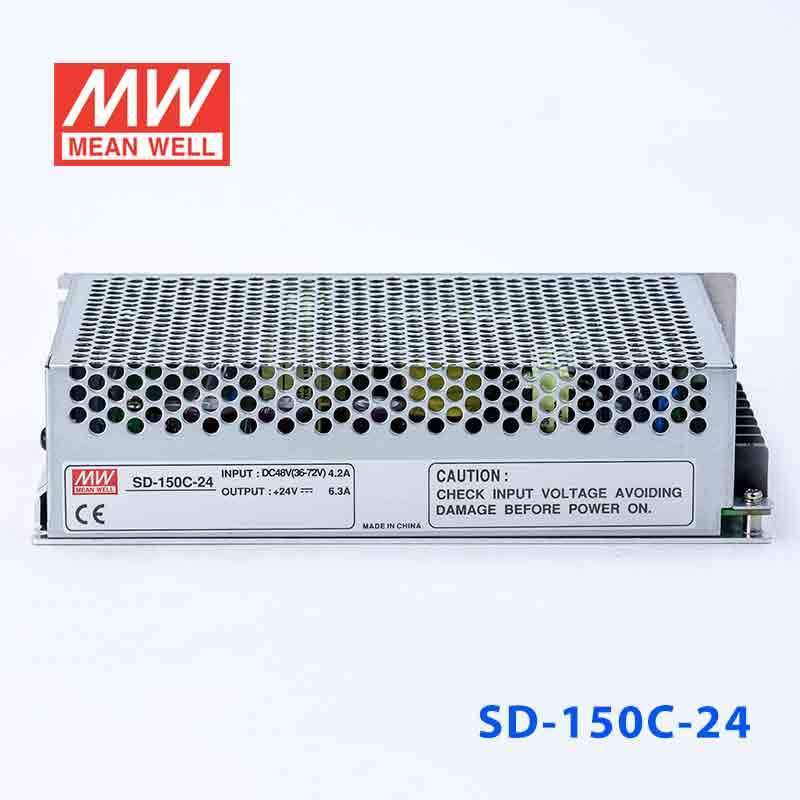

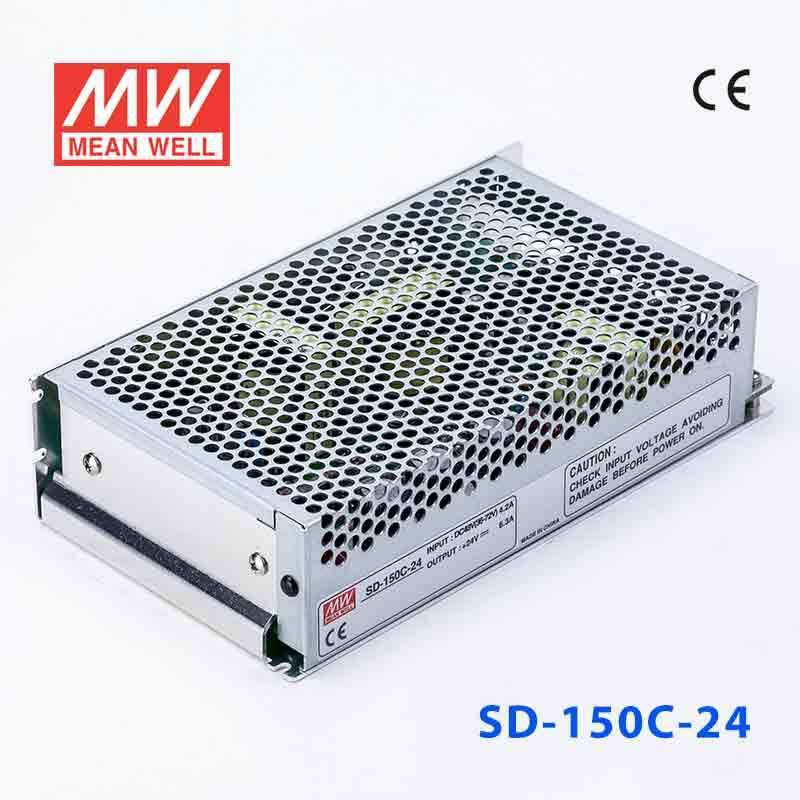

Mean Well SD-150C-24 DC-DC Converter - 150W - 36~72V in 24V out
·2:1wide inputrange
·Protections: Short circuit/Overload/Overvoltage
·1500VACI/Oisolation
·Built-inEMIfilter,lowripplenoise
·100% full load burn-intest
·24V and 48Vinput voltage design refertoLVD
·Lowcost
·Highreliability
·2yearswarranty
-
BrandMean Well
-
SeriesSD Series
-
Power Rating151.2 Watt
-
Output Voltage24 Volt
-
Rated Current6.5 Ampere
-
Input Voltage36V~72V
-
No of Output1
-
Dimming ControlNone
-
Standards MetEAC
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~60°C
-
Warranty3 Year
-
Length7.83 in
-
Width4.33 in
-
Height1.97 in
-
Weight1.9 lb
::specification::
Frequently Asked Questions
Can the SD-150C-24 power a 24V industrial control panel from a 36-72V DC source?
Yes, this unit is built for a 36-72V input range and provides a constant 24V output. It can deliver up to 6.5A and 151.2W for 24V control loads that stay within those ratings.
Is this converter a fit for 24V automation devices on a 48V-class battery or DC bus?
It is intended for higher-voltage DC sources in the 36-72V range and regulated 24V output loads. With 6.5A available at 24V, it suits automation and embedded equipment that requires constant-voltage 24V DC within 151.2W.
Can I use the SD-150C-24 for 24V communications or embedded electronics in an equipment rack or cabinet?
Yes, as long as the source is within 36-72V and the connected 24V load does not exceed 6.5A or 151.2W. Its constant-voltage output is intended for electronics that need regulated 24V DC.
Is the SD-150C-24 suitable for outdoor use?
No IP rating is provided in the listed specifications, so it is better treated as a protected indoor product. The stated operating temperature range is -10°C to +60°C.
How is the SD-150C-24 different from the other SD-150 converters?
The SD-150C-24 is the 24V, 151.2W, 6.5A version with a 36-72V input range. The other 24V SD-150 models are SD-150B-24 with 19-36V input and SD-150D-24 with 72-144V input, both also rated at 151.2W and 6.5A. The 12V versions are SD-150B-12, SD-150C-12, and SD-150D-12, each rated at 150W and 12.5A.
