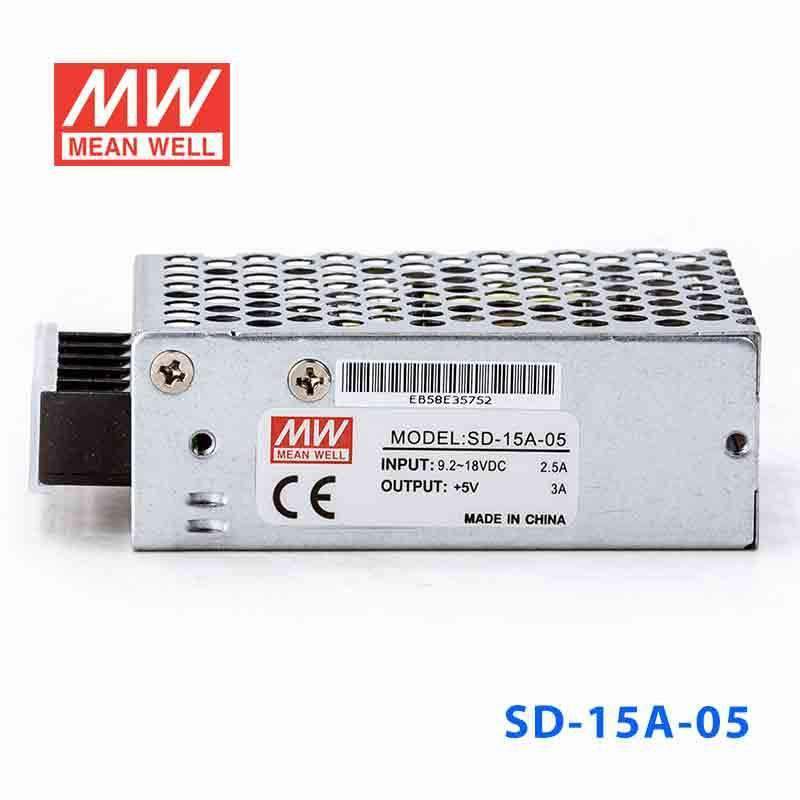

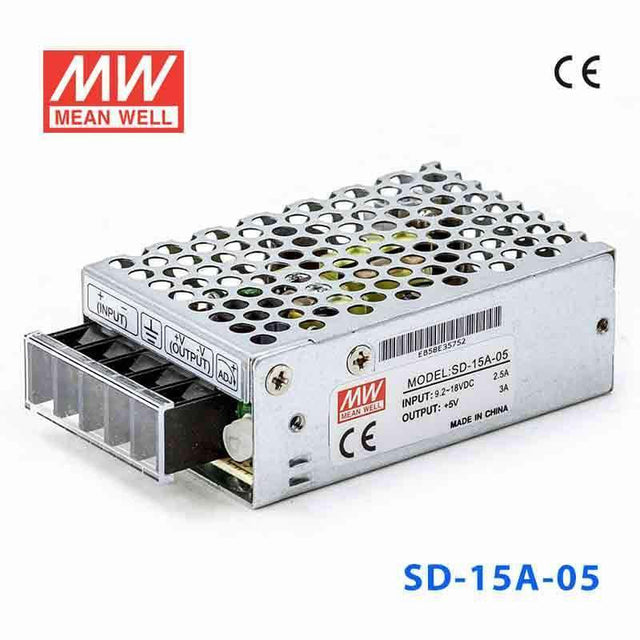

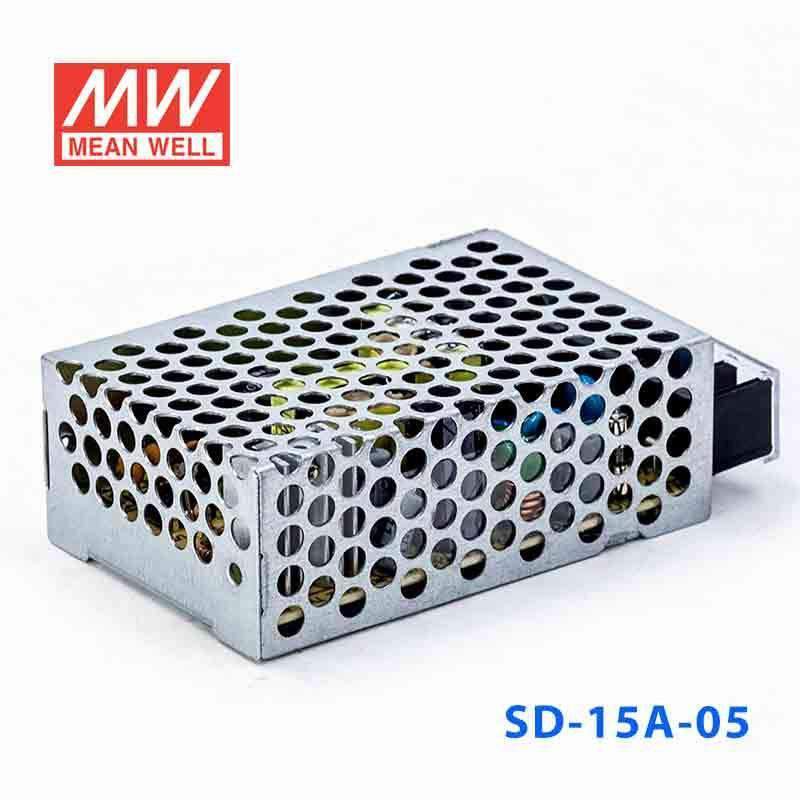

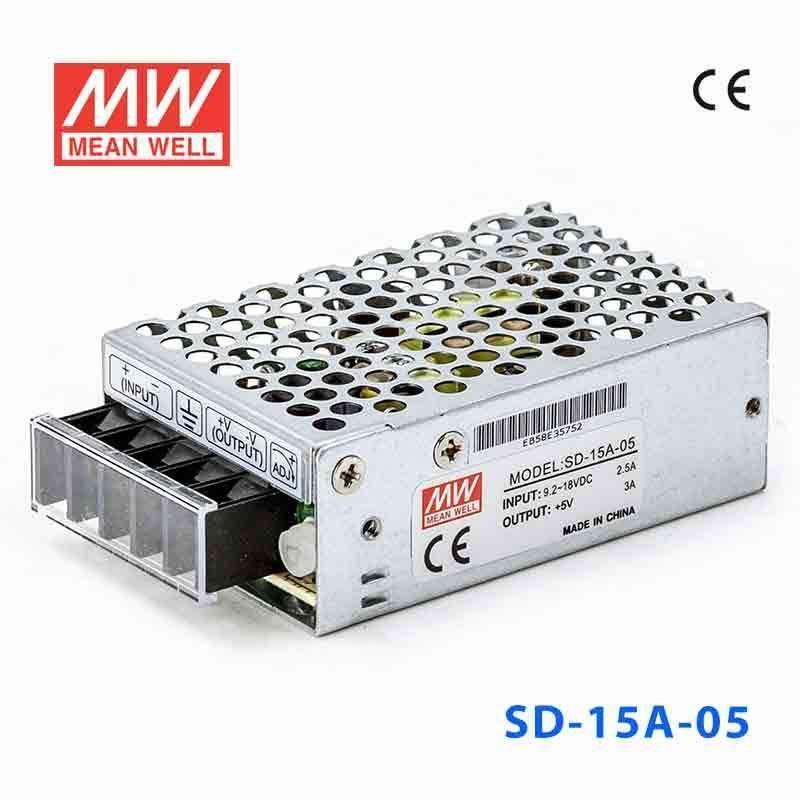

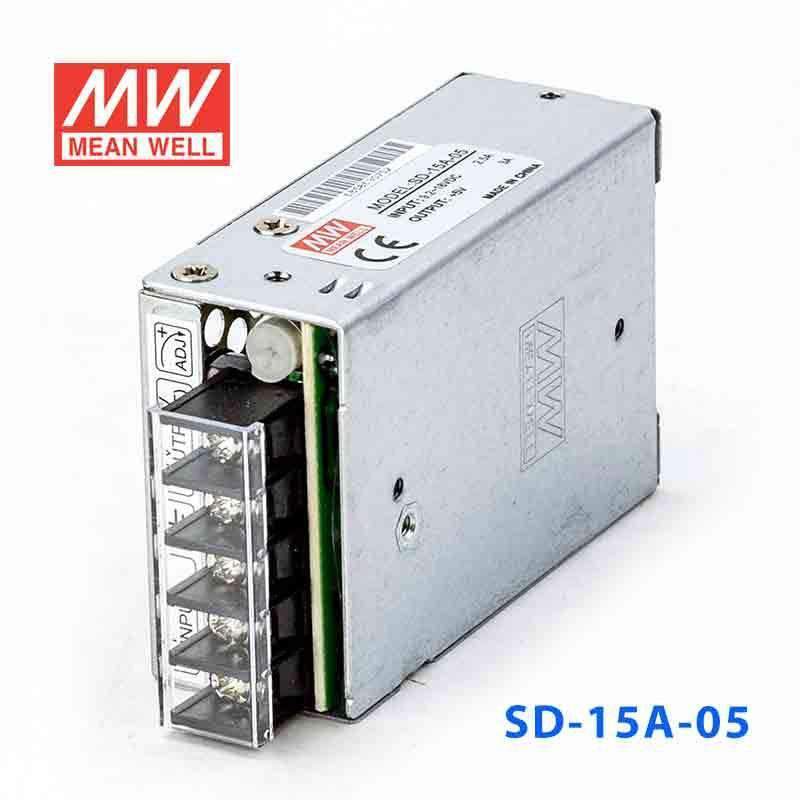

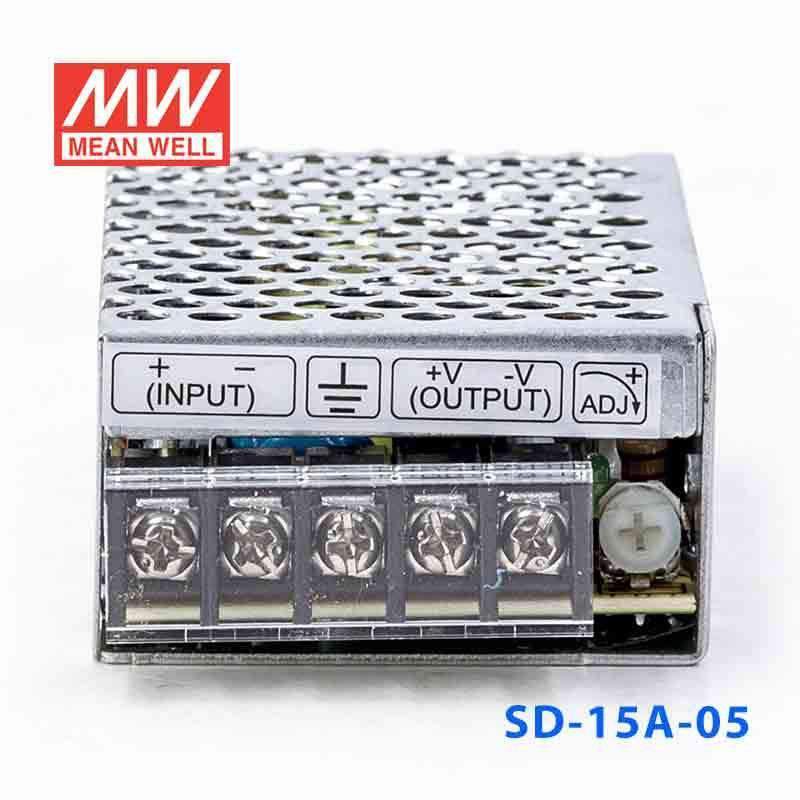

Mean Well SD-15A-5 DC-DC Converter - 15W - 9.2~18V in 5V out

2:1 wide input range, 1.5~2KVAC isolation by models
$15.71 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

2:1 wide input range
Protections: Short circuit / Overload / Over voltage / Over temperature / Input reverse polarity
Built-in EMI filter, low ripple noise
100% full load burn-in test
Low cost
High reliability
2 years warranty

General Specification

Over Load Protection 105 ~160% rated output power | Protection type: Hiccup mode recovers automatically after fault condition is removed
Over Voltage Protection

5.75 ~ 6.75V | 13.8~ 16.2V | 27.6 ~ 32.4V

Protection type: Shut off o/p voltage, clamping by Zener diode

REVERSE POLARITY By internal MOSFET, no damage recovers automatically after fault condition removed
Withstand voltage I/P-O/P:1.5KVAC | I/P-FG:1KVAC | O/P-FG:0.5KVAC
Working temperature -10 ~ +60 (Refer to "Derating Curve")
Safety standards EAC TP TC 004 approved, design refer to AS/NZS 62368.1
EMC standards With external components Compliance to EN55032 Class B;EN61000-3-,3,EN61000-4-2,3,4,5,6,8
Dimension (LxWxH)(mm) 78x51x28mm (LxWxH)

Specifications

  • Brand
    Mean Well
  • Series
    SD Series
  • Power Rating
    15 Watt
  • Output Voltage
    5 Volt
  • Rated Current
    3 Ampere
  • Input Voltage
    9.2V~18V
  • No of Output
    1
  • Dimming Control
    None
  • Standards Met
    EAC
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -20°C~85°C
  • Warranty
    3 Year
  • Length
    3.07 in
  • Width
    2.01 in
  • Height
    1.1 in
  • Weight
    0.4 lb

File Downloads

::specification::
