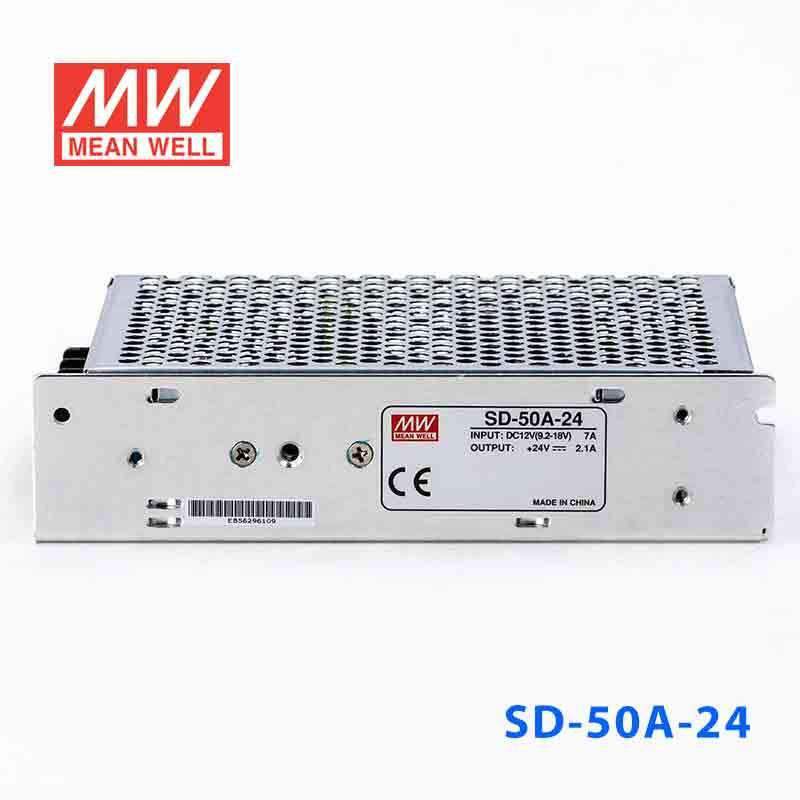

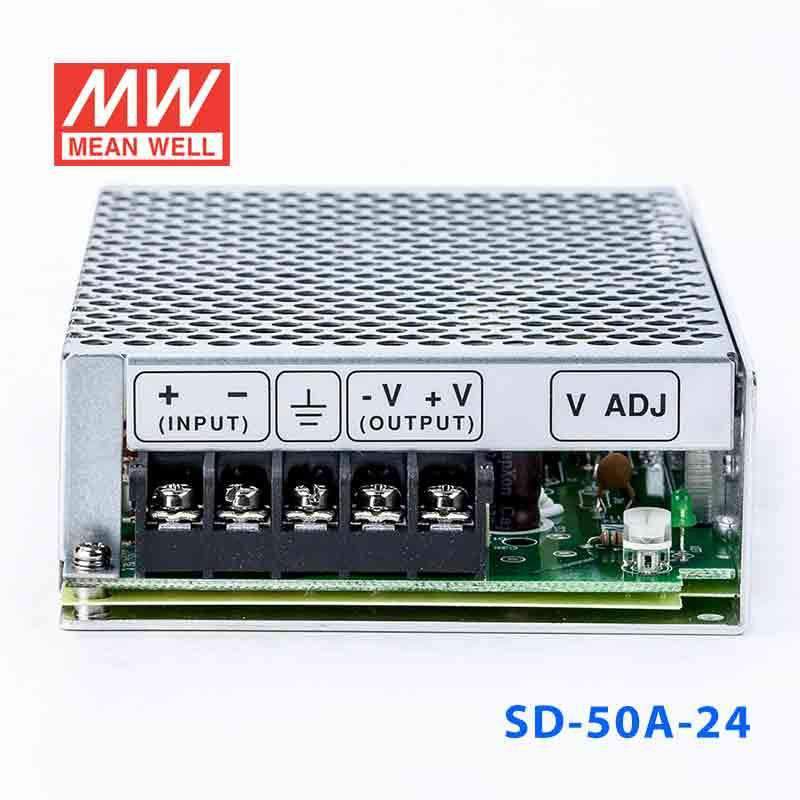

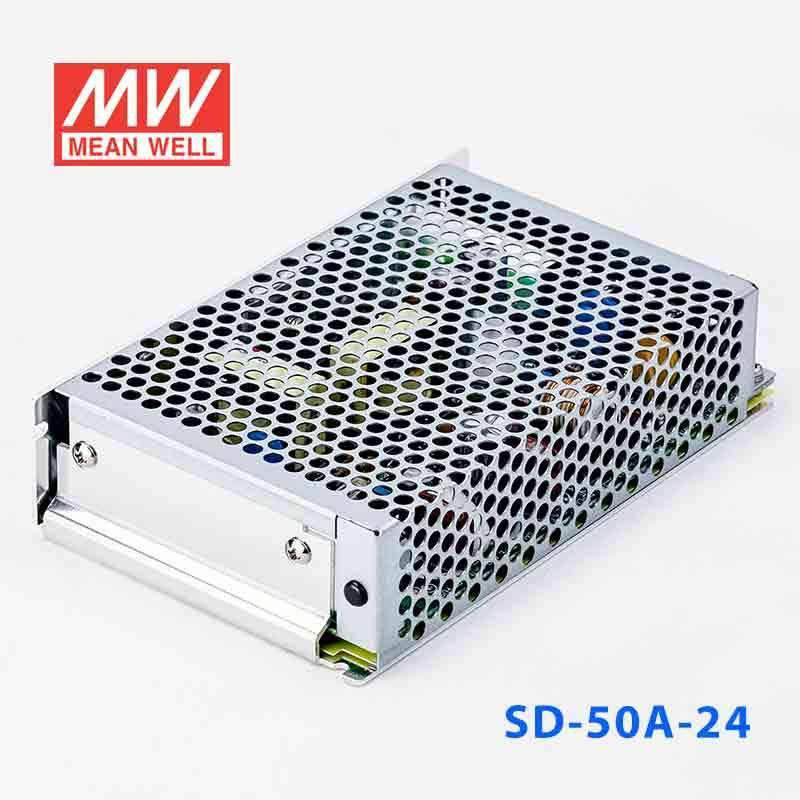

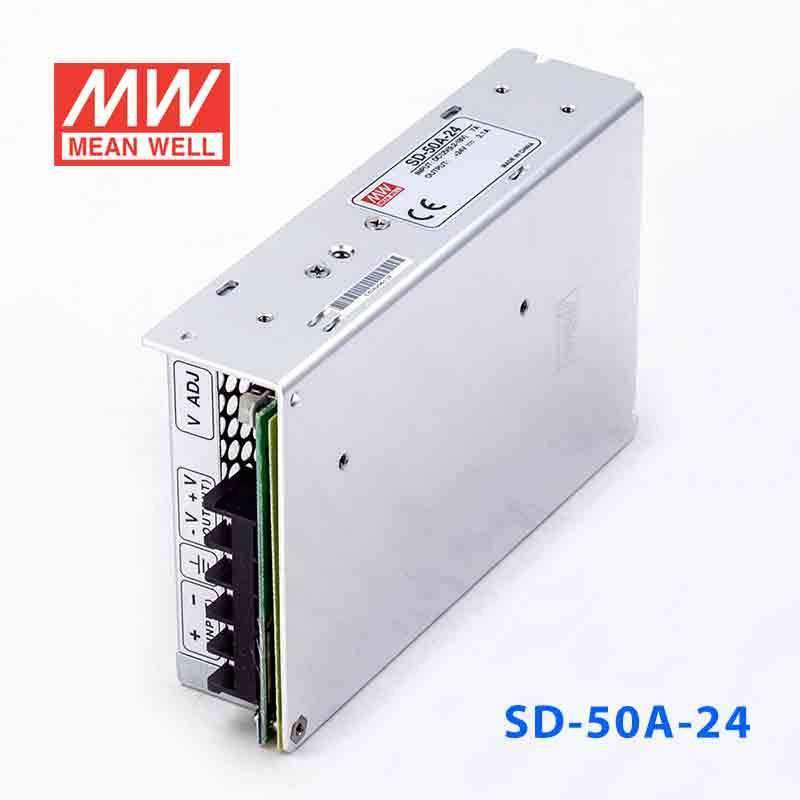

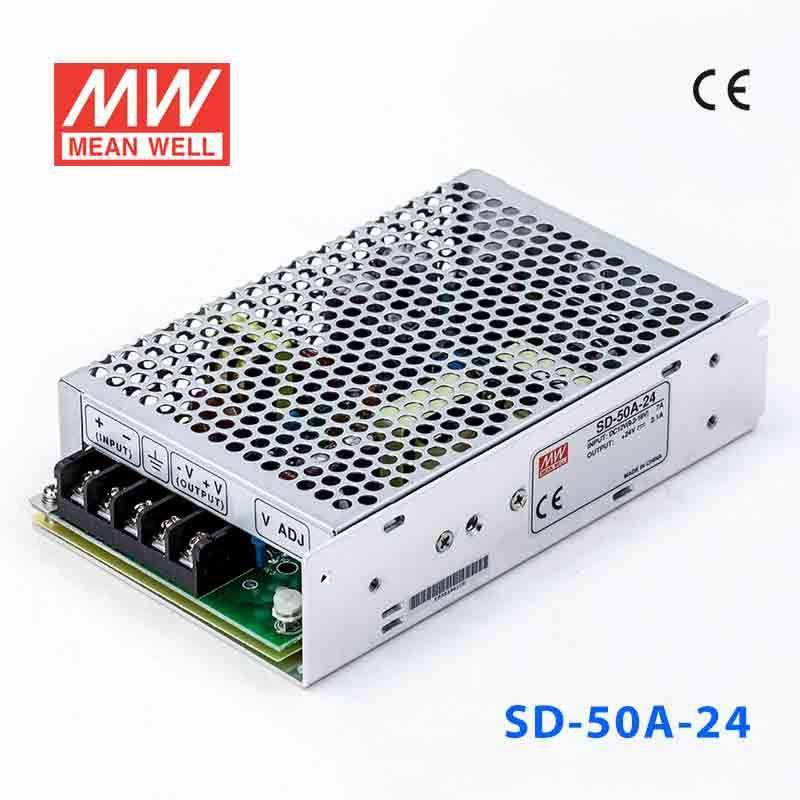

Mean Well SD-50A-24 DC-DC Converter - 50.4W - 9.2~18V in 24V out 2.1A
1.0 (1 review)Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well SD-50A-24 DC-DC Converter - 50.4W - 9.2~18V in 24V out 2.1A
The SD-50A is a 504W Mean Well DC-DC converter (input: 9.2~18VDC, operating temperature: -10~+60°C).
Key Features
- ✓ Input voltage: 9.2~18VDC
- ✓ Output voltage (max): 24V
- ✓ Rated output current: 2.1A
- ✓ I/O isolation: 1500V
- ✓ Operating temperature: -10~+60°C
- ✓ Safety certifications: CE, EAC, RCM
- ✓ 2 year warranty
-
BrandMean Well
-
SeriesSD Series
-
Power Rating504 Watt
-
Output Voltage24 Volt
-
Rated Current2.1 Ampere
-
Input Voltage9.2V~18V
-
No of Output1
-
Dimming ControlNon Dimmable
-
Standards MetCE,EAC,RCM
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~60°C
-
Warranty2 Year
-
Length6.26 in
-
Width3.82 in
-
Height1.5 in
-
Weight1.06 lb
::specification::
Frequently Asked Questions
Can I use the SD-50A-24 for a compact 24V automation controller?
Yes, it provides constant-voltage 24V output up to 2.1A. That makes it suitable for lower-current 24V automation and control electronics that can operate from a 9-18V source.
Is the SD-50A-24 suitable for 24V sensors, relays, or small industrial interfaces?
It can be used when those 24V loads stay within the 2.1A output rating. The converter is designed to regulate to 24V from a 9-18V input range for smaller 24V control subsystems.
Can this model power 24V embedded or communications hardware in a compact enclosure?
Yes, if the equipment needs constant 24V DC and draws no more than 2.1A. Its 159.0 × 97.0 × 38.0 mm dimensions and 0.48 kg weight are suited to more compact industrial or embedded housings.
Can the SD-50A-24 be used in mobile electronics that start from a 9-18V source but need 24V output?
It can, provided the source remains within the 9-18V range and the 24V load stays within 2.1A. The listed 2:1 wide input range is relevant for lower-voltage mobile or battery-fed systems that need a regulated 24V rail.
How does the SD-50A-24 compare with the other SD-50A versions?
The SD-50A-24 is rated for 24V output at 2.1A with a listed power figure of 504W. The SD-50A-12 is 12V at 4.2A with a listed 504W figure, and the SD-50A-5 is 5V at 10A with a listed 504W figure. All share the same 9-18V input range, 159.0 × 97.0 × 38.0 mm dimensions, 0.48 kg weight, and -10°C to +60°C operating temperature.
Can the SD-50A-24 be used in exposed indoor or outdoor environments?
The supplied specs define an operating temperature range of -10°C to +60°C. They do not provide an IP rating, so the specs do not establish resistance to dust or water exposure for outdoor use.
