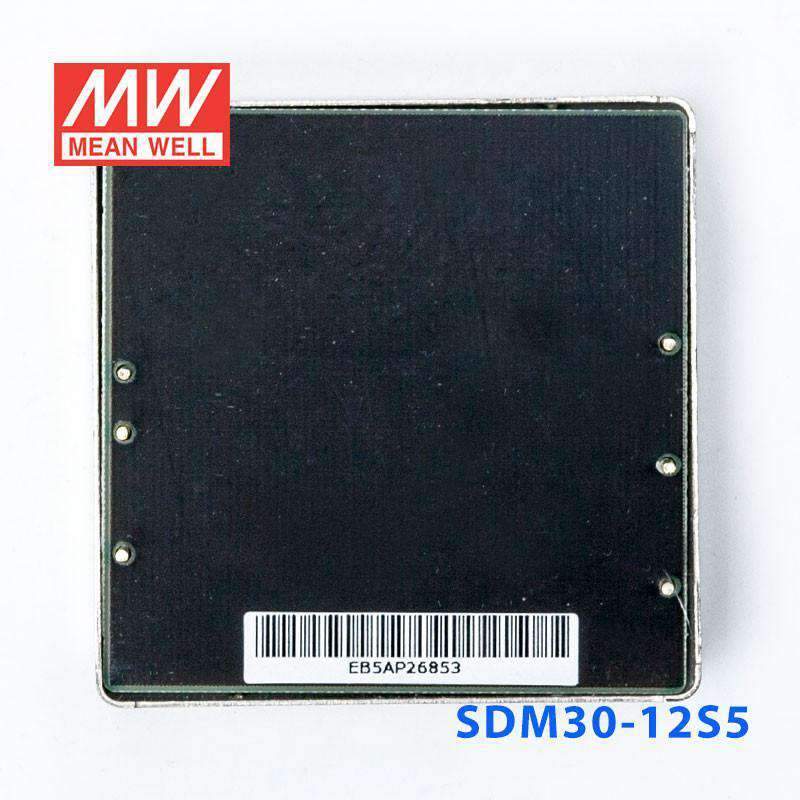

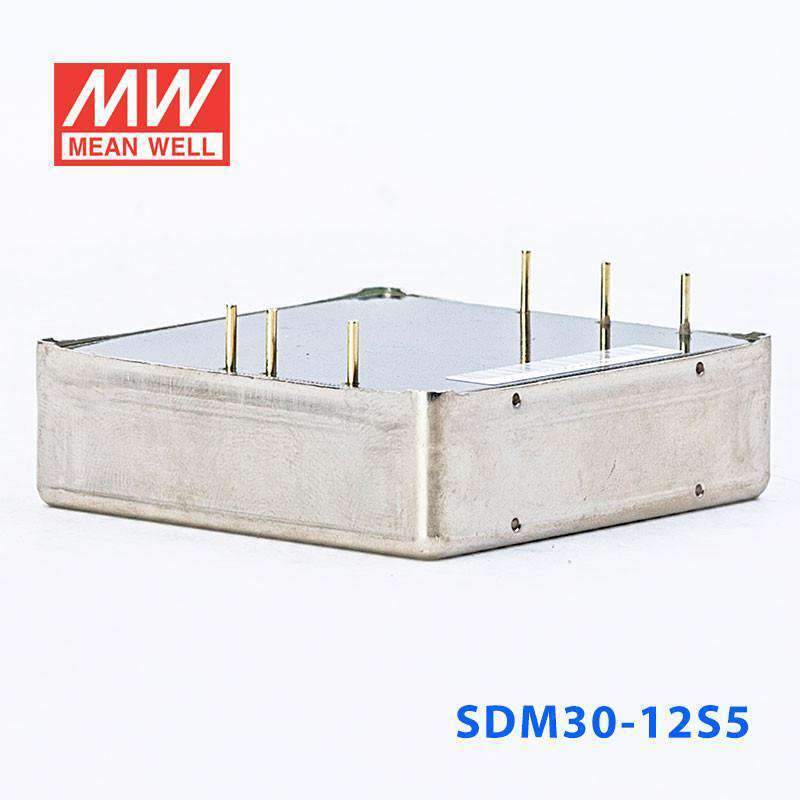

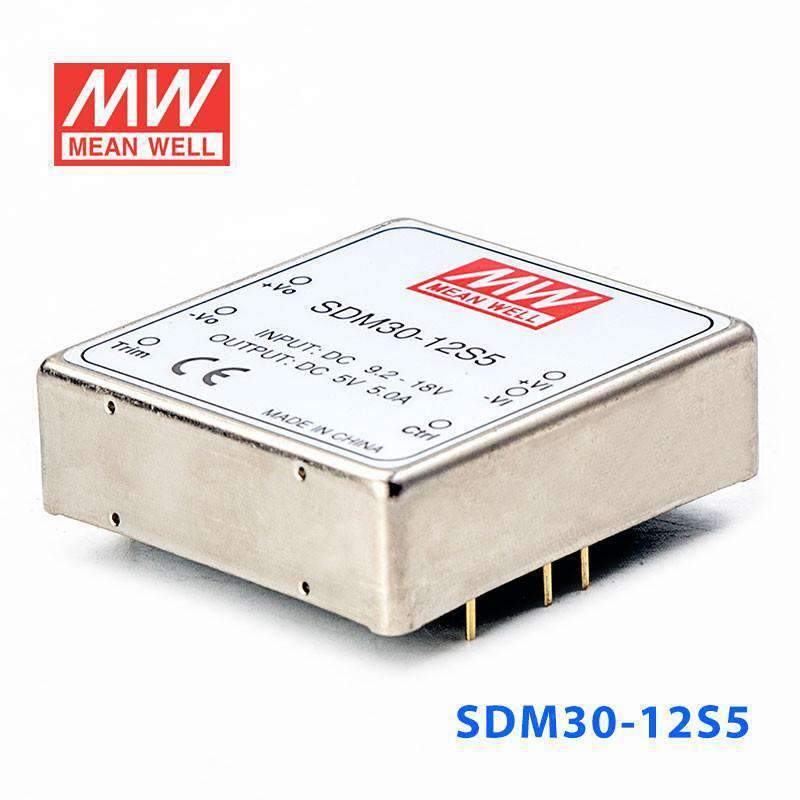

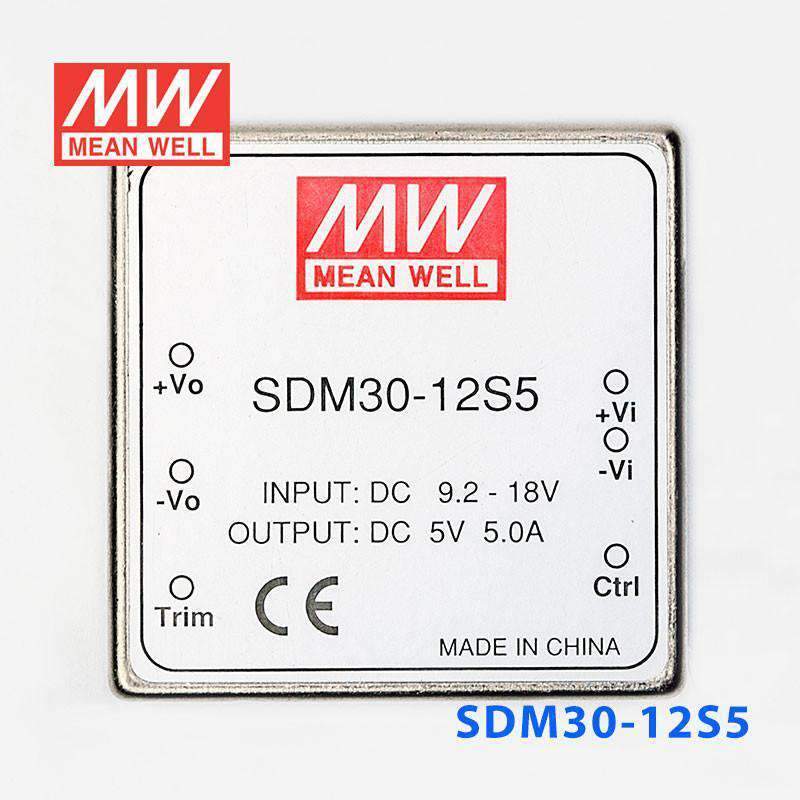

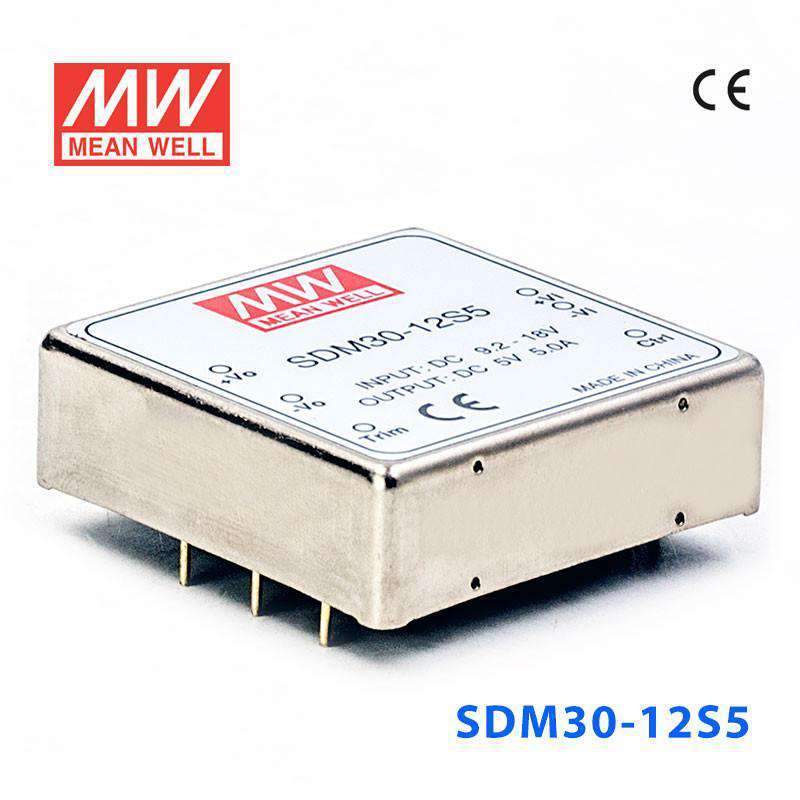

Mean Well SDM30-12S5 DC-DC Converter - 25W - 9.2~18V in 5V out
Description
Description
Features
- Wide 2:1 DC input range
- In/out capacitance 1000pF
- Protections: Short circuit / Over current / Over voltage / Over temperature
- 1000 DC I/O isolation for D/D
- Built-in remote ON/OFF control
- Cooling by free air convection
- 100% full load burn-in test
- Fixed switching frequency at 225KHz
- Low cost
- High relibility
- 2 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesSDM Series
-
Power Rating25 Watt
-
Output Voltage5 Volt
-
Rated Current5 Ampere
-
Input Voltage9.2V~18V
-
No of Output2
-
Dimming ControlNone
-
Standards MetCE,EMC
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~85°C
-
Warranty2 Year
-
Length2 in
-
Width2 in
-
Height0.63 in
-
Weight0.22 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the SDM30-12S5 to power 5V industrial control electronics from a 9-18VAC source?
Yes, if the load requires a constant 5V output and stays within 25W and 5A. This model is rated for 9-18VAC input and provides 5V constant-voltage output, which fits low-voltage industrial control and automation electronics within that power range.
Is the SDM30-12S5 suitable for 5V embedded computing or SBC loads in equipment that has 12V-class AC available?
It can be a fit when the available source is within the specified 9-18VAC input range and the 5V load does not exceed 25W or 5A. That makes it appropriate for 5V embedded boards and control logic that need regulated constant-voltage output in that range.
Can this converter be used for 5V automation peripherals that draw higher current?
This model supports up to 5A at 5V, so it suits 5V peripherals or control subsystems that need more current than lower-current 5V supplies can provide. The total load still needs to remain within the 25W output rating.
Is the SDM30-12S5 appropriate for outdoor or harsh-environment use?
The listed operating temperature range is -25°C to +85°C, so the temperature rating is broad. However, no IP rating is provided in the supplied specs, so these specs alone do not establish outdoor or washdown suitability and an enclosure decision would need to account for that.
How does the SDM30-12S5 compare with the other SDM30 series converters?
Within the listed siblings, outputs include 3.3V at 16.5W and 5A, 5V at 25W and 5A, 12V at 25.2W and 2.1A or 30W or 35W at 2.5A, and 15V at 25.5W and 1.7A or 30W at 2A. The series also spans three input groups: 9.2-18V in the 12S models, 18-36V in the 24S models, and 36-75V in the 48S models, with the SDM30-12S5 specifically being the 5V, 25W, 5A option in the 9.2-18V input group.
