Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

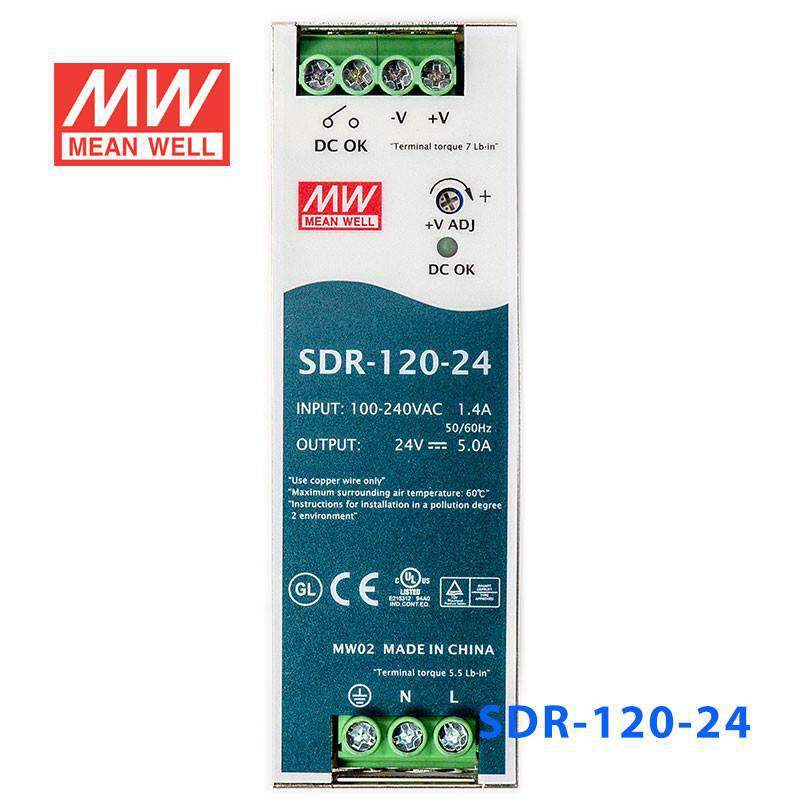

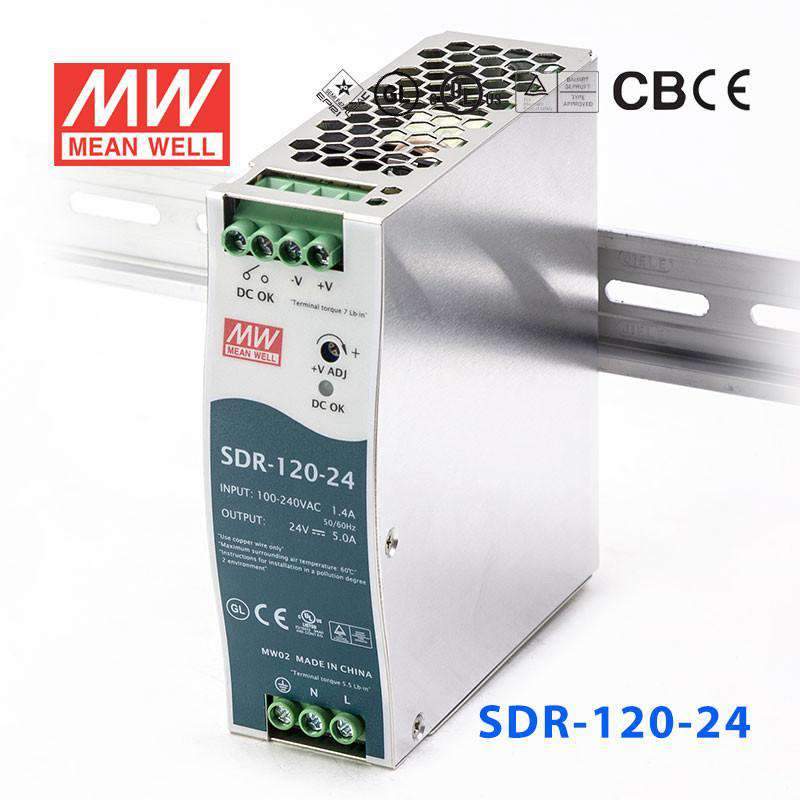

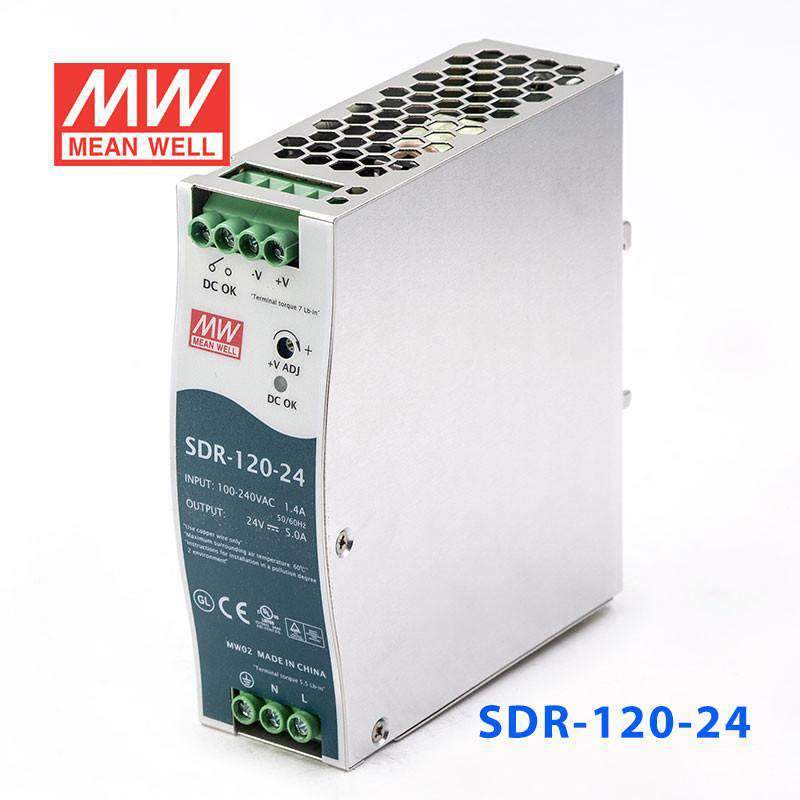

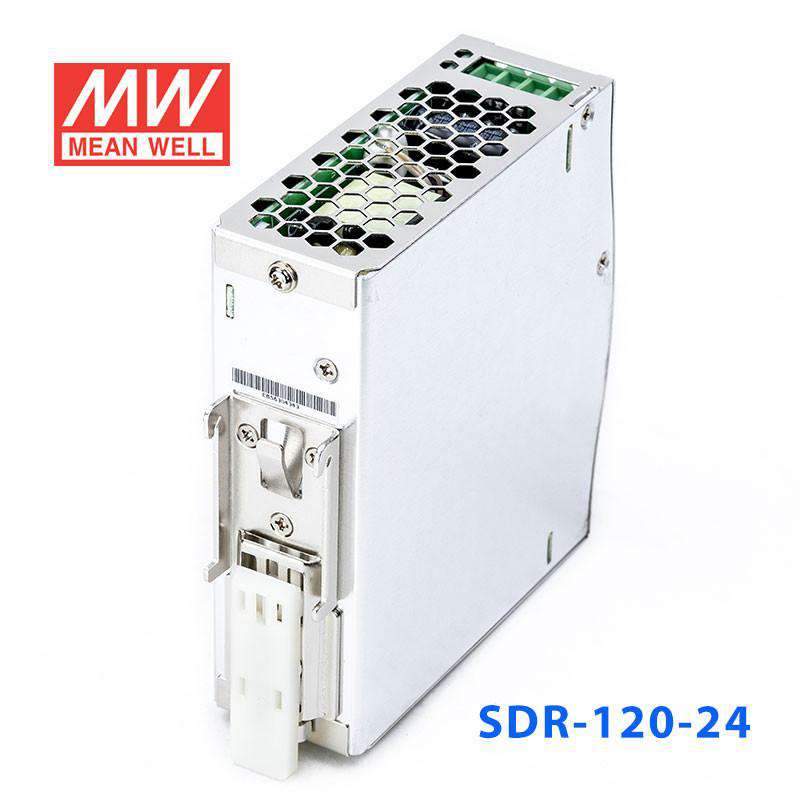

Mean Well SDR-120-24 Single Output Industrial Power Supply 120W 24V...
$55.54 USD
Unit price /
Unavailable
Description
Description
Features
| High efficiency up to 94% |
| Universal AC input / Full range |
| Built-in active PFC function |
| Built-in DC OK relay contact |
| Protections: Short circuit / Overload / Over voltage / Over temperature |
| Cooling by free air convection |

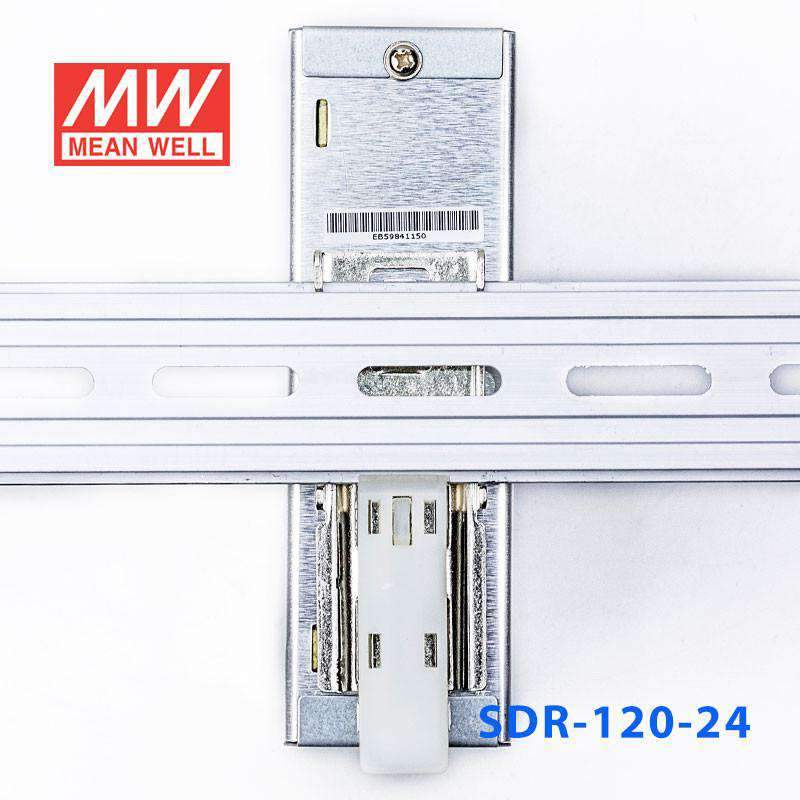

| Can be installed on DIN rail TS-35 / 7.5 or 15 |
| UL508(industrial control equipment) approved |
| EN61000-6-2(EN50082-2) industrial immunity level |
| 150% peak load capability |
| Comply with, Comply with SEMI F47 |
| 3 years warranty |
General Specification
| AC input voltage range | 88~264VAC; 124~370VDC |
| AC inrush current (max.) | Cold start, 70A at 230VAC |
| DC adjustment range | 12V: 12~14V (only for SDR-75/120), 24V: 24~28V, 48V: 48~55V |
| Overload protection | Normally works within 110%~150% rated output power for 3 seconds and then shut down output voltage with auto-recovery (re-power on to recover for SDR-75) |
| Overload protection | >150% rated power or short circuit, constant current limiting with auto-recovery within 2 seconds and may cause to shut down if over 2 seconds |
| Over voltage protection Range | 14~17V for 12V model |
| Over voltage protection Type | Shut down o/p voltage, re-power on to recover |
| Over temp. protection | Recovers automatically after temperature goes down |
| Withstand voltage | I/P-O/P:3kVAC, I/P-FG:1.5kVAC, O/P-FG:0.5kVAC, O/P-DC OK:0.5kVAC |
| Working temperature | -25~+70°C (refer to output derating curve) |
| Safety standards | UL508, TUV EN60950-1, GL approved |
| EMC standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 (EN50082-2), EN61204-3; SEMI, GL |
| Connection | I/P: 3 poles, O/P: 4 poles screw DIN terminal |
| Dimension (WxHxD)(mm) | 40x125.2x113.5 |
Specifications
Specifications
-
BrandMean Well
-
SeriesSDR Series
-
Power Rating120 Watt
-
Output Voltage24 Volt
-
Rated Current5 Ampere
-
Input Voltage88V~264V
-
No of Output1
-
Standards MetBSMI,CB,CE,cUL,EAC,GL,TUV
-
Operating Temperature-25°C~70°C
-
Warranty3 Year
-
Length4.93 in
-
Width4.47 in
-
Height1.57 in
-
Weight1.48 lb
