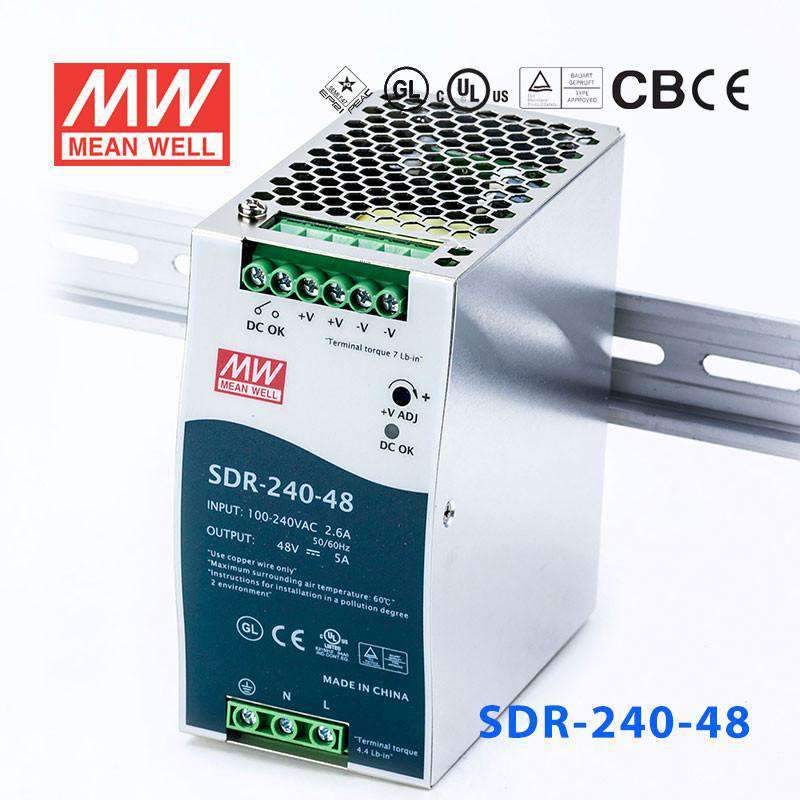

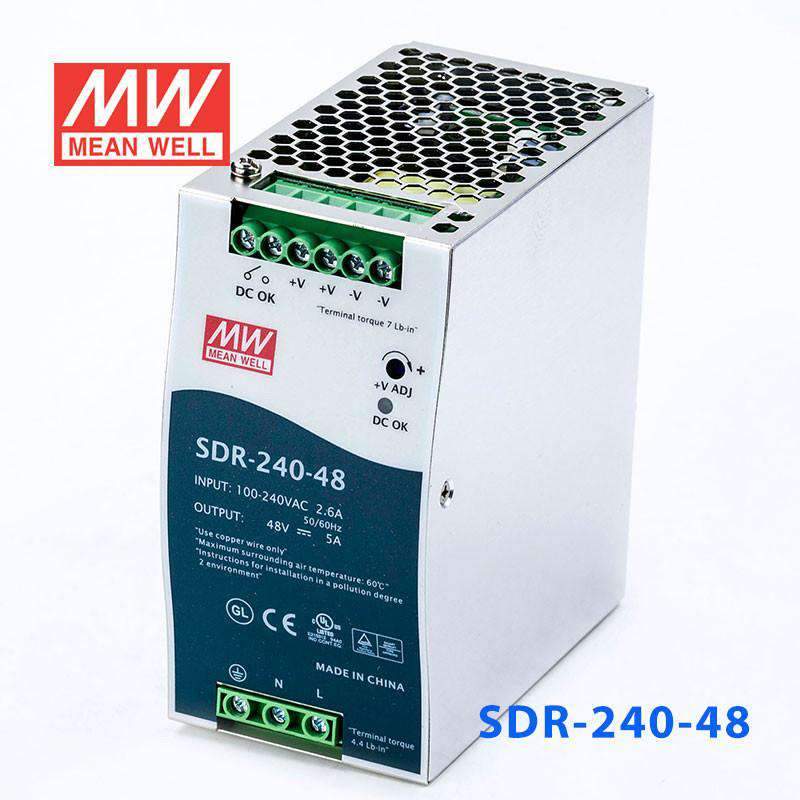

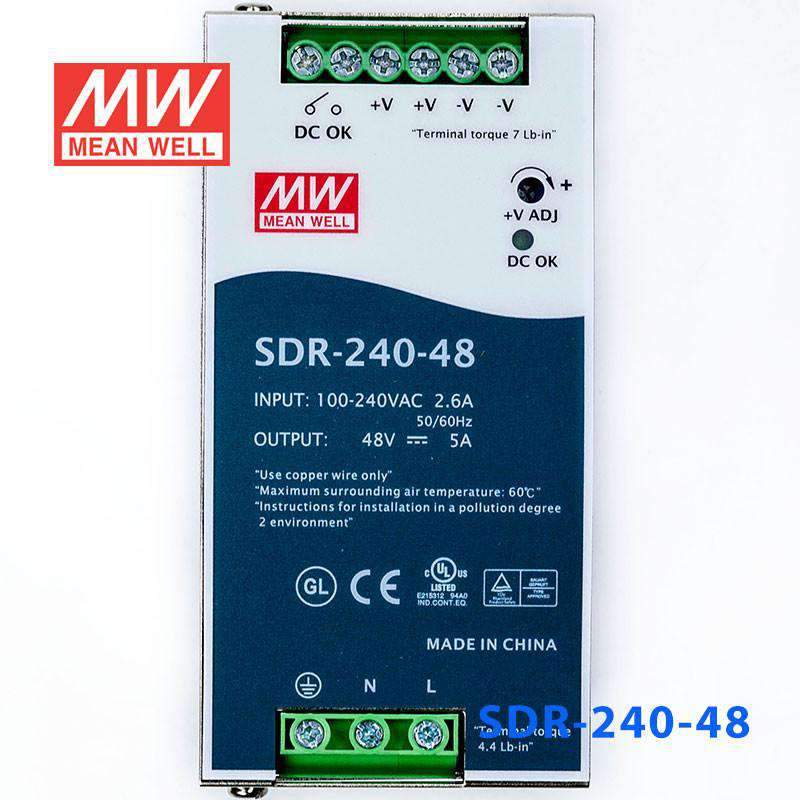

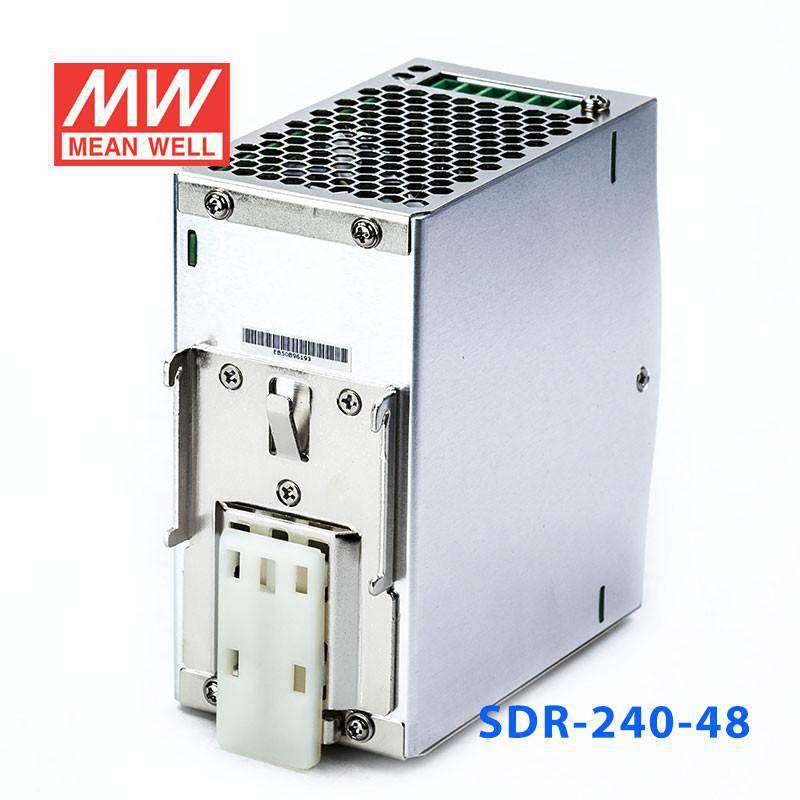

Mean Well SDR-240-48 Single Output Industrial Power Supply 240W 48V...
Description
Description
Features
| High efficiency up to 94% |
| Universal AC input / Full range |
| Built-in active PFC function |
| Built-in DC OK relay contact |
| Protections: Short circuit / Overload / Over voltage / Over temperature |
| Cooling by free air convection |

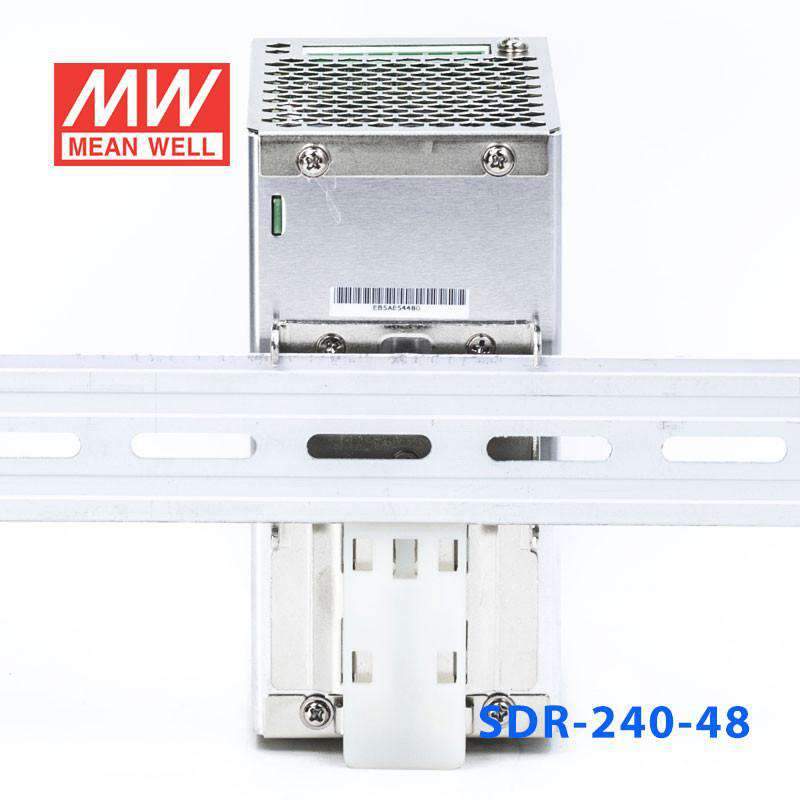

| Can be installed on DIN rail TS-35 / 7.5 or 15 |
| UL508(industrial control equipment) approved |
| EN61000-6-2(EN50082-2) industrial immunity level |
| 150% peak load capability |
| Comply with, Comply with SEMI F47 |
| 3 years warranty |
General Specification
| AC input voltage range | 88~264VAC; 124~370VDC |
| AC inrush current (max.) | Cold start, 65A at 230VAC |
| DC adjustment range | 24V: 24~28V, 48V: 48~55V |
| Overload protection | Normally works within 110%~150% rated output power for 3 seconds and then shut down output voltage with auto-recovery (re-power on to recover for SDR-75) |
| Overload protection | >150% rated power or short circuit, constant current limiting with auto-recovery within 2 seconds and may cause to shut down if over 2 seconds |
| Over voltage protection Range | 29~33V for 24V model, 56~65V for 48V model |
| Over voltage protection Type | Shut down o/p voltage, re-power on to recover |
| Over temp. protection | Recovers automatically after temperature goes down |
| Withstand voltage | I/P-O/P:3kVAC, I/P-FG:1.5kVAC, O/P-FG:0.5kVAC, O/P-DC OK:0.5kVAC |
| Working temperature | -25~+70°C (refer to output derating curve) |
| Safety standards | UL508, TUV EN60950-1, GL approved |
| EMC standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 (EN50082-2), EN61204-3; SEMI, GL |
| Connection | I/P: 3 poles, O/P: 6 poles screw DIN terminal |
| Dimension (WxHxD)(mm) | 63x125.2x113.5 |
Specifications
Specifications
-
BrandMean Well
-
SeriesSDR Series
-
Power Rating240 Watt
-
Output Voltage48 Volt
-
Rated Current5 Ampere
-
Input Voltage88V~264V
-
No of Output1
-
Standards MetBSMI,CB,CE,cUL,EAC,GL,TUV
-
Operating Temperature-25°C~70°C
-
Warranty3 Year
-
Length4.93 in
-
Width4.47 in
-
Height2.48 in
-
Weight2.27 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the SDR-240-48 for a 48V industrial control cabinet with higher load demand?
Yes, this model provides 48V output up to 5A, with 240W total capacity, so it fits 48V control cabinet loads that need more power than a 120W supply. It is designed as a DIN rail power supply for industrial panels.
Is the SDR-240-48 suitable for 48V building management or automation systems in an enclosure?
It is appropriate for enclosed 48V building management or automation systems when the total connected load does not exceed 240W or 5A. The 88-264VAC input range supports use across a broad span of standard AC supply conditions.
Can this unit be used where a 48V DIN rail supply is needed but panel space is still a concern?
Yes, it combines 240W capacity with a DIN rail form factor measuring 125.2 x 113.5 x 63.0 mm. That makes it useful for 48V cabinet applications needing more output without moving to the larger 480W class.
Should the SDR-240-48 be mounted in a protected control cabinet?
Yes, this power supply is best used inside an enclosure or control cabinet rather than in an exposed environment. Its rated operating temperature is -25°C to +70°C, and it is certified to BSMI, CB, CE, cUL, EAC, c_gl, and TÜV.
What is the difference between the SDR-240-48 and other SDR models in the same family?
The listed related models are SDR-120-12 at 120W, 12V, 10A; SDR-120-24 at 120W, 24V, 5A; SDR-120-48 at 120W, 48V, 2.5A; SDR-240-24 at 240W, 24V, 10A; SDR-480-24 at 480W, 24V, 20A; SDR-480-48 at 480W, 48V, 10A; SDR-480P-24 at 480W, 24V, 20A; and SDR-480P-48 at 480W, 48V, 10A. The same family list also includes SDR-75-12 at 75.6W, 12V, 6.3A; SDR-75-24 at 76.8W, 24V, 3.2A; SDR-75-48 at 76.8W, 48V, 1.6A; SDR-960-24 at 960W, 24V, 40A; and SDR-960-48 at 960W, 48V, 20A.
