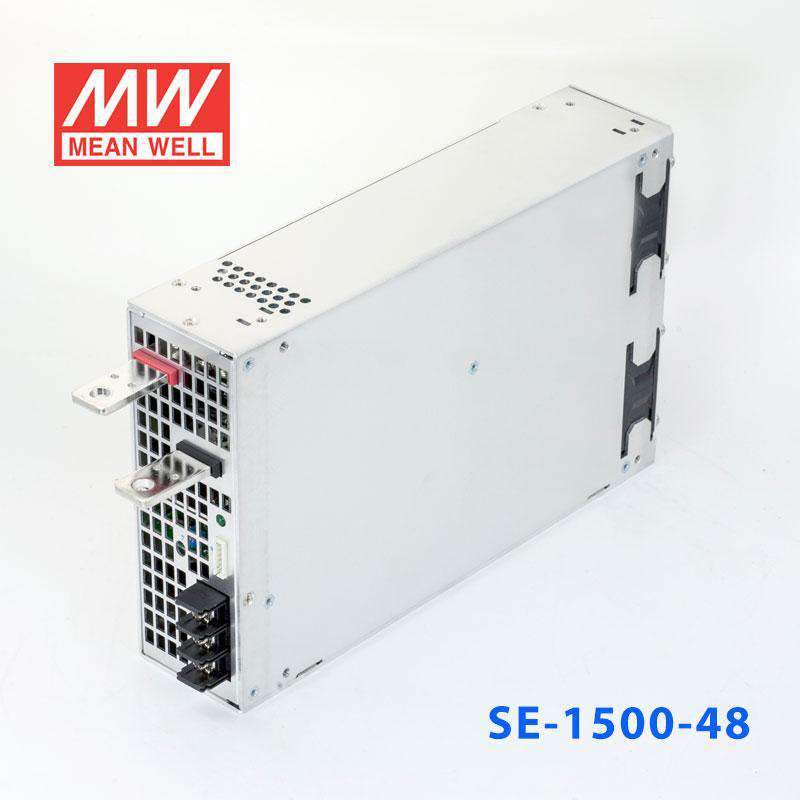

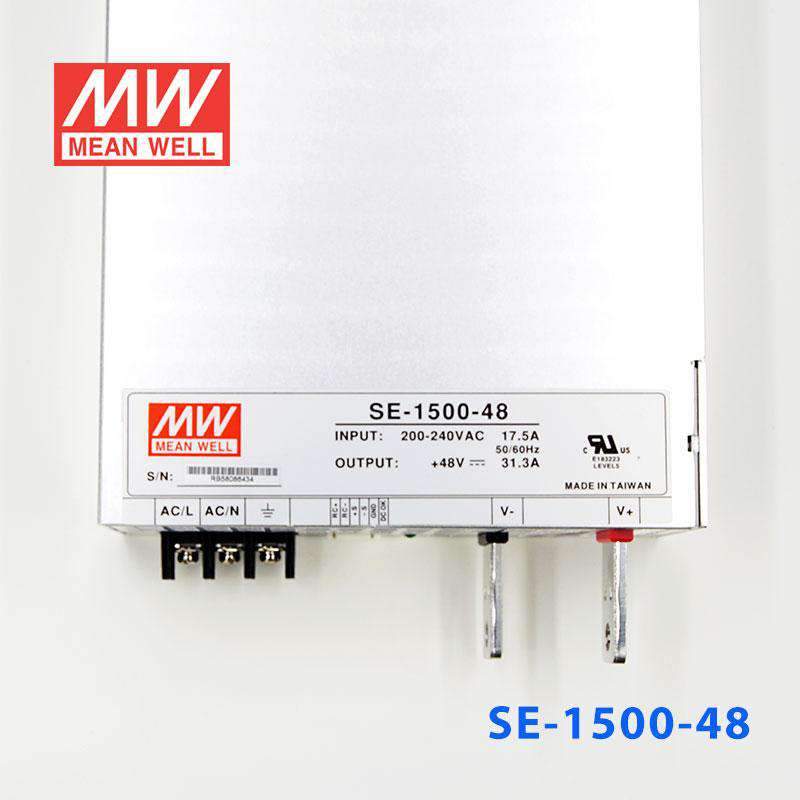

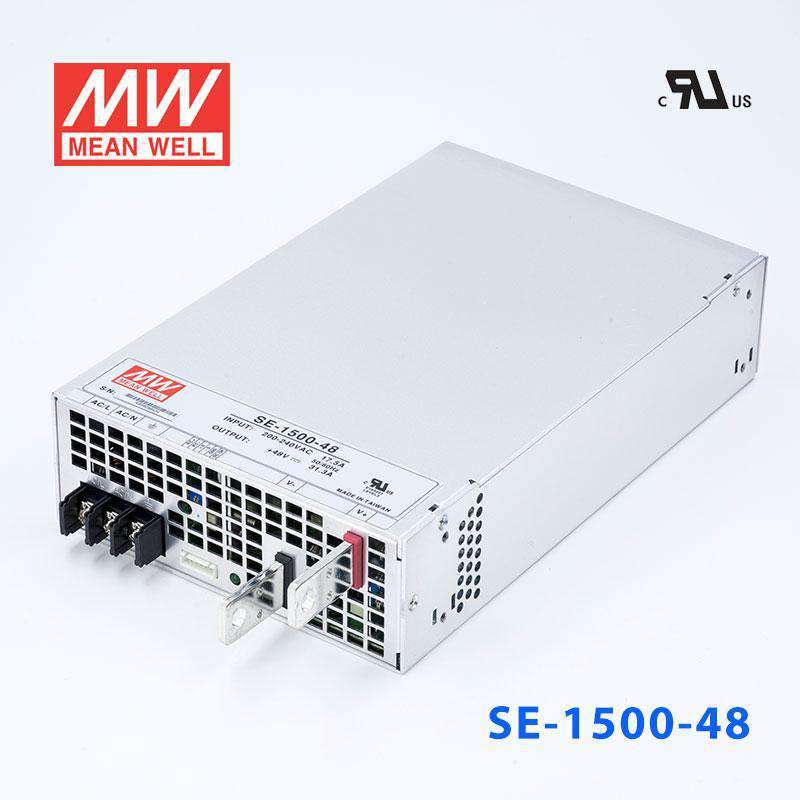

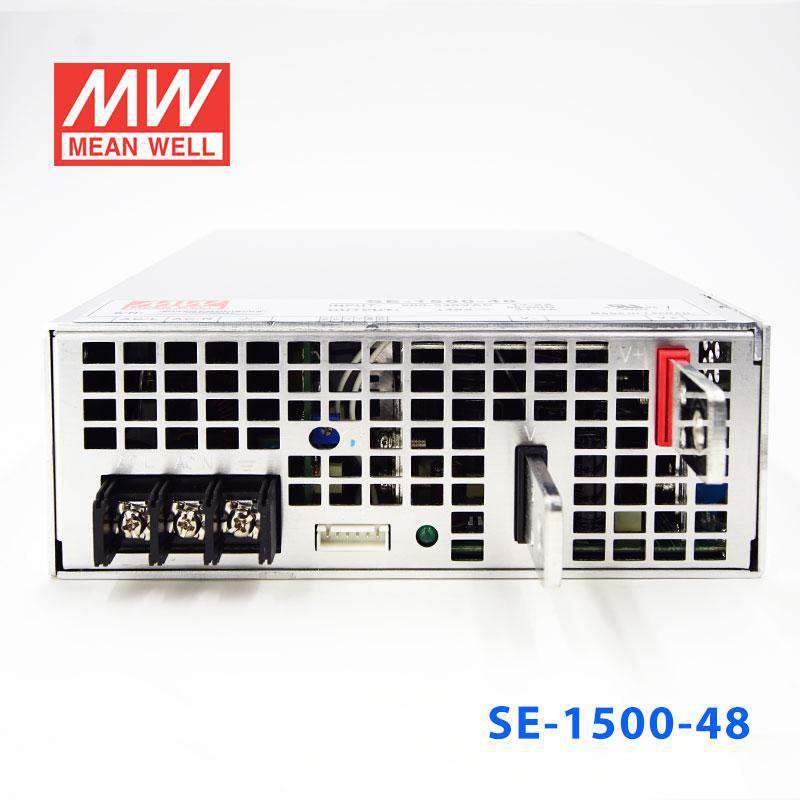

Mean Well SE-1500-48 Power Supply 1500W 48V 31.3A
Overview
SE-1500-48 is the 48V output model of this series: rated current 31.3A, rated power 1502.4W, typical efficiency 89%.
Features
- AC input 180 ~ 264VAC
- AC input active surge current limiting
- Protections: Short circuit / Overload / Over voltage / Over temperature

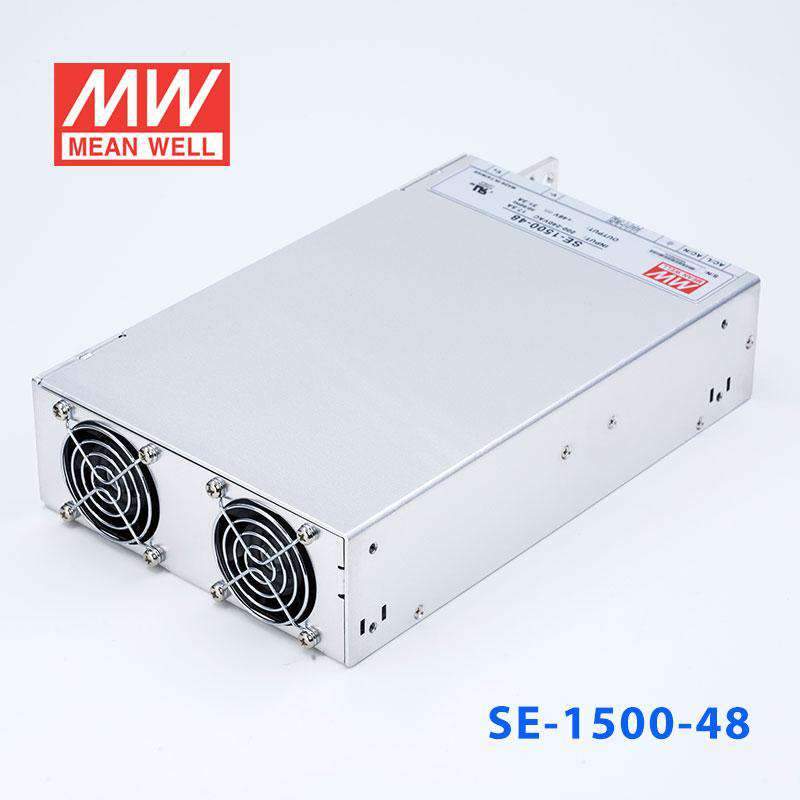

- Forced air cooling by built-in DC ball bearing fan
- High power density 7.8w/inch³
- With DC OK signal output
- Built-in remote ON-OFF control
- Built-in remote sense function
- UL / CUL approved
- Low cost
- 2 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 48V
- RATED CURRENT
- 31.3A
- CURRENT RANGE
- 0 ~ 31.3A
- RATED POWER
- 1502.4W
- RIPPLE & NOISE (max.)Note.2
- 150mVp-p
- VOLTAGE ADJ. RANGE
- 43.2 ~ 56V
- VOLTAGE TOLERANCENote.3
- ±1.0%
- LINE REGULATION
- ±0.5%
- LOAD REGULATION
- ±0.5%
- SETUP, RISE TIME
- 150ms, 12ms / 230VAC at full load
- HOLD UP TIME (Typ.)
- 26ms / 230VAC at full load
INPUT
- VOLTAGE RANGE
- 180 ~ 264VAC 254 ~ 370VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- EFFICIENCY (Typ.)
- 89%
- AC CURRENT (Typ.)
- 17.5A / 230VAC
- INRUSH CURRENT (Typ.)
- 60A / 230VAC
- LEAKAGE CURRENT
- <3.5mA / 240VAC
PROTECTION
- OVERLOAD
- 105 ~ 125% rated output power Protection type : Shut down o/p voltage, re-power on to recover
- OVER VOLTAGE
- 57.6 ~ 67.2V Protection type : Shut down o/p voltage, re-power on to recover
- OVER TEMPERATURE
- Shut down o/p voltage, recovers automatically after temperature goes down
FUNCTION
- DC_OK SIGNAL
- PSU turn on:3.3V ~ 5.6V PUS turn off:0 ~ 1V
- REMOTE CONTROL
- RC+/RC-: 0 ~ 0.8V power on; 4 ~ 10V power off
ENVIRONMENT
- WORKING TEMP.
- -20 ~ +70℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +85℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.05%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- UL62368-1 , BSMI CNS15598-1, EAC TP TC 004 approved; Design refer to BS EN/EN62368-1
- WITHSTAND VOLTAGE
- I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
-
Parameter Standard Test Level Conducted BS EN/ EN55032 (CISPR32),CNS15936 Class A Radiated BS EN/ EN55032 (CISPR32),CNS15936 Class A Harmonic Current BS EN/ EN61000-3-2 Voltage Flicker BS EN/ EN61000-3-3 - EMC IMMUNITYNote 4
-
BS EN/ EN55035, BS EN/ EN61000-6-2
Parameter Standard Test Level ESD BS EN/ EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact Radiated BS EN/ EN61000-4-3 Level 3 EFT / Burst BS EN/ EN61000-4-4 Level 3 Surge BS EN/ EN61000-6-2 1KV/Line-Line 2KV/Line-Earth Conducted BS EN/ EN61000-4-6 Level 3 Magnetic Field BS EN/ EN61000-4-8 Level 4 Voltage Dips and Interruptions BS EN/ EN61000-4-11 >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods
OTHERS
- MTBF
- 999.9K hrs min. Telcordia SR-332 (Bellcore) ; 134.5K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 278*177.8*63.5mm (L*W*H)
- PACKING
- 3.3Kg; 4pcs/14.2Kg/1.14CUFT
Test conditions and notes6
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 720mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
- 5. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 6. This power supply does not meet the harmonic current requirements outlined by EN61000-3-2. Please do not use this power supply under the following conditions: a) the end-devices is used within the European Union, and b) the end-devices is connected to public mains supply with 220Vac or greater rated nominal voltage, and c) the power supply is: - installed in end-devices with average or continuous input power greater than 75W, or - belong to part of a lighting system Exception: Power supplies used within the following end-devices do not need to fulfill EN61000-3-2 a) professional equipment with a total rated input power greater than 1000W; b) symmetrically controlled heating elements with a rated power less than or equal to 200W
Technical drawings
Downloads
FAQ
Can I use the SE-1500-48 for 48V industrial networking or telecom equipment?
Yes, if the equipment is designed for a constant-voltage 48V DC input, this supply is in the right class. It provides 48V output at up to 31.3A with a total rating of 1502.4W.
Is the SE-1500-48 suitable for a 48V automation or control power bus?
It can be used where a system is built around a regulated 48V DC bus and needs higher centralized power. The rated output is 31.3A at 48V, with 1502.4W available.
Can this power supply support a 48V embedded or communications rack?
It is appropriate for embedded, communications, or industrial rack systems that require constant-voltage 48V input. The supply's published capacity is 31.3A and 1502.4W, so the total rack load has to stay within that limit.
Is the SE-1500-48 suitable for outdoor cabinets?
The listed specifications do not include an IP rating, so the product data does not establish outdoor or weather-exposed use. It is rated to operate from -20°C to +70°C, but that temperature range does not define ingress protection.
What is different about the SE-1500-48 versus the other SE-1500 versions?
The SE-1500 family shown here includes 5V 300A 1500W, 12V 125A 1500W, 15V 100A 1500W, 24V 62.5A 1500W, 27V 55.6A 1501.2W, and 48V 31.3A 1502.4W models. The SE-1500-48 is the highest-voltage version in that group and has the lowest listed output current at 31.3A.
