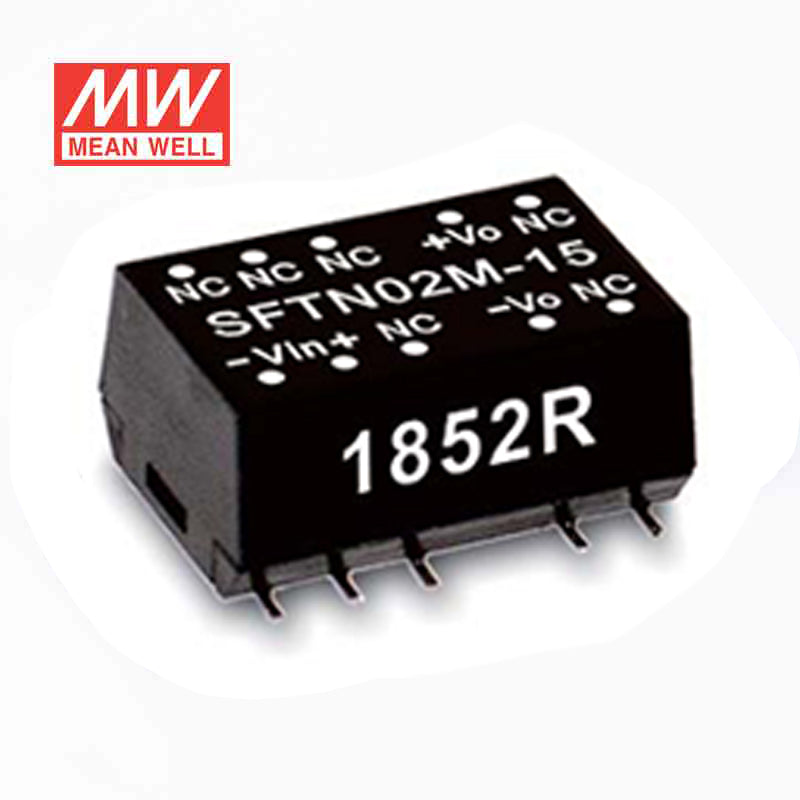

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well SFTN02L-15 DC-DC Converter - 2W - 4.5~5.5V in 15V out

SKU:

SFTN02L-15

$5.35 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

SMD package with industry-standard pinout

Wide operating temperature range -40~+100°C

Comply to BS EN/EN55032 radiated Class A without additional components

High efficiency up to 82%

Protections: Short circuit

3KVDC I/O isolation

Low cost

Optional reel packing

3 years warranty

General Specification

Voltage accuracy	±2.0%
Vibration	10~500Hz, 2G 10min./1 cycle, a period of 60 min, each along the X, Y, and Z axes
Cooling	Free-air convection
Short circuit protection	0.5-second max. Optional models (SC-suffix): Continuous
Working temperature	-40 ~ +90℃ (Refer to "Derating Curve") ; Optional models (SC-suffix): -40 ~ +105℃
EMC	Compliance to EN55032 class B, EN61000-4-2,3,4,5,6,8
Temp. Coefficient	0.03% / ℃ (0 ~ 85℃)
Dimension (LxWxH) (mm)	15.2410.97.1mm (0.60.430.28 inch)
Potting material	UL 94V-0 rated

Specifications

Brand

Mean Well
Series

SFTN Series
Power Rating

2 Watt
Output Voltage

15 Volt
Rated Current

0.13 Ampere
Input Voltage

4.5V~5.5V
No of Output

1
Dimming Control

None
Standards Met

CE,EMC
Operation Mode

Constant Voltage
Operating Temperature

-40°C~100°C
Warranty

3 Year
Length

0.6 in
Width

0.43 in
Height

0.28 in
Weight

0 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the SFTN02L-15 to create a 15V rail from a 4-5VAC source?

Yes, this converter is designed for a 4-5VAC input and gives a constant 15V output. With a 2W power rating and a listed 133A output current, it is intended for small 15V loads rather than higher-power devices.

Is this converter appropriate for low-power 15V sections in industrial or automation electronics?

It fits low-power applications that need a regulated 15V output from a 4-5VAC source. The 2W rating makes it suitable for compact control, signal, or interface electronics that stay within the converter's output limits.

Can the SFTN02L-15 be used in embedded systems that need a small constant-voltage 15V supply?

Yes, if the embedded design needs a constant 15V output and the available input falls within 4-5VAC. This model is better suited to light electronic loads because its total output power is 2W.

What kind of space claim does this model have in compact equipment?

The body size is 15.24 × 10.9 × 7.1 mm and the weight is 0.0012 kg. Those dimensions support use in dense assemblies where a small isolated power component is needed.

Is the SFTN02L-15 rated for indoor only or for outdoor use too?

The specifications show an operating temperature range of -40°C to +100°C. However, there is no IP rating listed, so the provided data does not establish outdoor exposure or water and dust protection.
