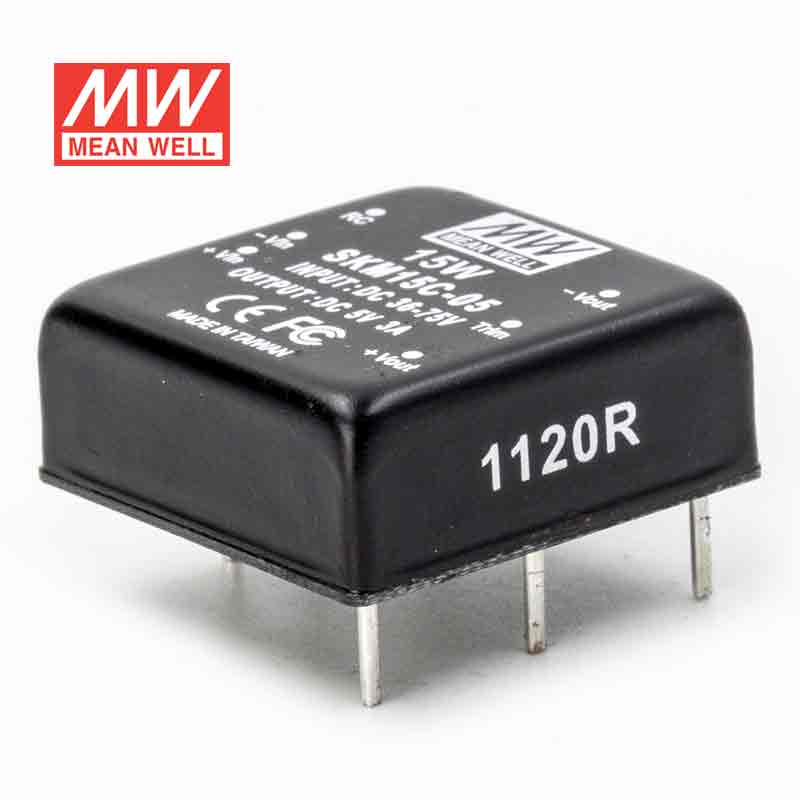

Mean Well SKM15C-05 DC-DC Converter - 15W - 36~75V in 5V out 3A
$27.49 USD
Unit price /
Unavailable
Overview
SKM15C-05 is the 5V output model of this series: rated power 15W, typical efficiency 86%.
Features
- 1"x1" compact size
- 2:1 wide input range
- High efficiency up to 88%
- 1500VDC I/O isolation
- Built-in remote ON/OFF control
- Built-in trimming output(±10%)
- Built-in EMI filter
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- Six-sided shield metal case
- 100% burn-in test
- Low cost / High reliability
- Approvals: FCC / EAC / CE / UKCA
- 2 years warranty
Specifications
SKM15C-05Specifications from the official datasheet (2021-12-01 edition)
OUTPUT
- DC VOLTAGE
- 5V
- CURRENT RANGE
- 300 ~ 3000mA
- RATED POWER
- 15W
- RIPPLE & NOISE (max.)Note.2
- 50mVp-p
- LINE REGULATIONNote.3
- ±0.5%
- LOAD REGULATIONNote.4
- ±0.5%
- VOLTAGE ACCURACY
- ±2.0%
- SWITCHING FREQUENCY
- 400KHz typ.
- EXTERNAL CAPACITANCE LOAD (max.)
- 1000uF
- EXTERNAL TRIM Adj. RANGE(Typ.)
- ±10%
INPUT
- VOLTAGE RANGE
- 36 ~ 75VDC
- EFFICIENCY (Typ.)
- 86%
- DC CURRENT Full load
- 380mA
- DC CURRENT No load
- 35mA
- FILTER
- Pi network
- REMOTE CONTROL
- Power ON : R.C ~ -Vin > 2.5VDC or open circuit ; Power OFF : R.C ~ -Vin < 0.5VDC or short
- PROTECTION
- Fuse recommended
PROTECTION (Note. 5)
- OVER CURRENT
- 110% ~ 180% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- SHORT CIRCUIT
- All output equipped with short circuit Protection type : Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 115% ~ 150% rated output voltage Protection type : Clamp by diode, recovers automatically after fault condition is removed
ENVIRONMENT
- WORKING TEMP.
- -40 ~ +80℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20% ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -55 ~ +100℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03% / ℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- EAC TP TC 020/2011 (EAC TP TC 004 for 48Vin type only) approved
- WITHSTAND VOLTAGE
- I/P-O/P:1.5KVDC
- ISOLATION RESISTANCE
- I/P-O/P: 100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55032 Class A, FCC part 15 Class A, EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8, light industry level, criteria A, EAC TP TC 020
OTHERS
- MTBF
- 400Khrs min. MIL-HDBK-217F(25℃)
- DIMENSION
- 25.4*25.4*9.9 mm or 1"*1"*0.39" inch (L*W*H)
- WEIGHT
- 15g
Test conditions and notes5
- 1.All parameters are specified at normal input, rated load, 25℃ 70% RH ambient.
- 2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1uf & 47uf capacitor.
- 3.Line regulation is measured from low line to high line at rated load.
- 4.Load regulation is measured from 10% to 100% rated load.
- 5.Please prevent the converter from operating in overload or short circuit condition for more than 30 seconds.
