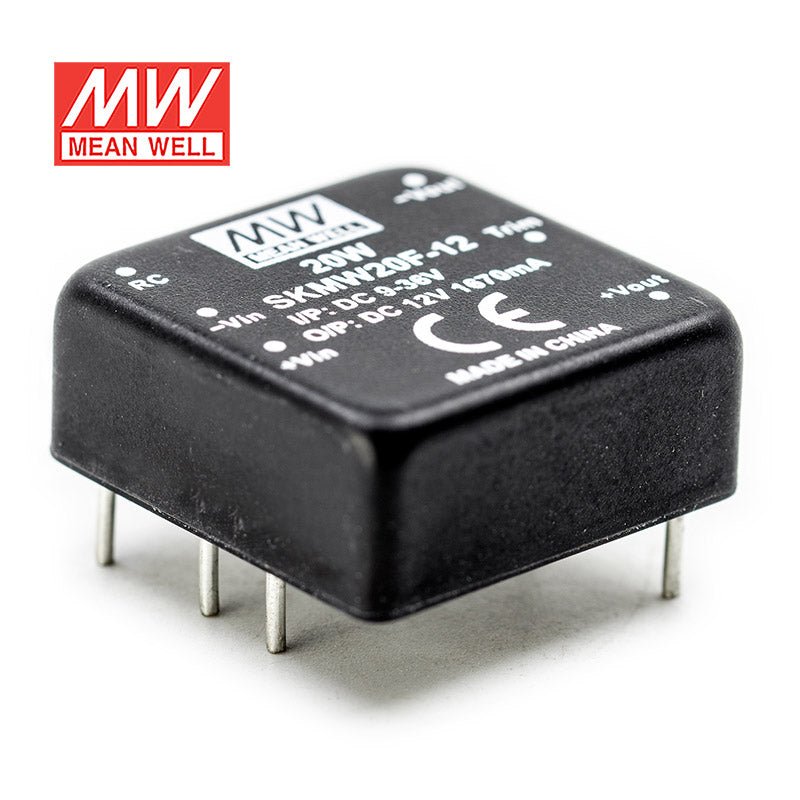

Mean Well SKMW20F-12 DC-DC Converter - 20W - 9~36V in 12V out

SKU:

SKMW20F-12

$34.40 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

DIP 1"x1" package with industry-standard pinout

Operating temperature range -40~+85°C

4:1 ultrawide input range

No minimum load required

Comply to BS EN/EN55032 radiated Class A without additional components

High efficiency up to 89%

Protection: Short circuit(continuous)/Overload/Over voltage/Input under voltage

1.5KVDC I/O isolation

Remote ON/OFF control and trimming output (±10%)

3 years warranty

General Specification

Voltage accuracy	±1.5%
Vibration	10~500Hz, 2G 10min./1 cycle, the period for 60 min, each along X, Y, and Z axes
Cooling	Free-air convection
Short circuit protection	Continuous, automatic recovery
Working temperature	-40°C to +85°C
EMC	Compliance to EN55032 Class A, EN61000-4-2,3,4,5,6
Temp. Coefficient	0.03% / ℃ (0 ~ 60℃)
Dimension (LxWxH) (mm)	25.425.410.2mm (110.4 inch)
Potting material	Black coated copper with a non-conductive base

Specifications

Brand

Mean Well
Series

SKMW Series
Power Rating

20 Watt
Output Voltage

12 Volt
Rated Current

1.67 Ampere
Input Voltage

9V~36V
No of Output

1
Dimming Control

None
Standards Met

CE
Operation Mode

Constant Voltage
Operating Temperature

-40°C~85°C
Warranty

3 Year
Length

1 in
Width

1 in
Height

0.4 in
Weight

0.04 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the SKMW20F-12 for a 12V PLC accessory or industrial interface module?

Yes, if the load requires constant 12V and stays at or below 1.67A. This converter is rated for 20W and accepts a 9-36V input range.

Is the SKMW20F-12 a good fit for 12V embedded or edge-computing hardware inside industrial equipment?

It is suitable when the hardware needs a regulated 12V output rather than a variable supply. The unit provides constant-voltage 12V output, and its 25.4 × 25.4 × 10.2 mm size supports compact embedded designs.

Can this model be used for 12V control electronics on a 9-36V power bus?

Yes, that is the kind of voltage conversion this model is specified for. It takes 9-36V input and delivers 12V output up to 1.67A, with a total power limit of 20W.

Is the SKMW20F-12 suitable for outdoor equipment or only protected enclosures?

The operating temperature range is -40°C to +85°C, which supports use in equipment exposed to wide temperature swings. No IP rating is listed in the specs, so the environmental sealing level is not defined for outdoor exposure.

How does the SKMW20F-12 compare with the other SKMW20F output options?

Each model in the SKMW20F group is rated at 20W, but the output differs by version. The sibling models are 3.3V at 4.5A, 5V at 4A, and 15V at 1.33A, while this version provides 12V at 1.67A.
