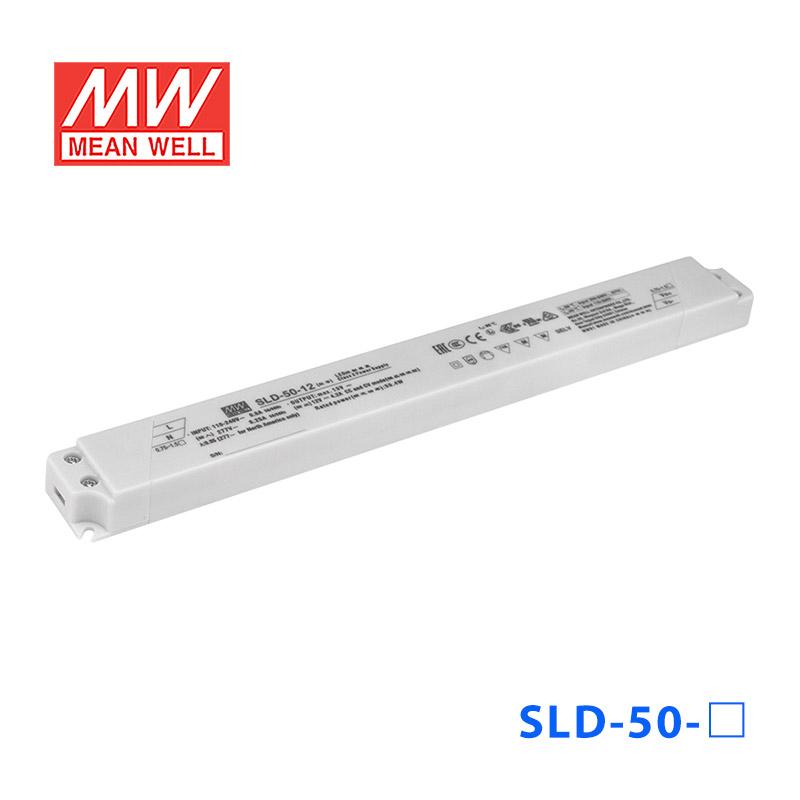

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well SLD-50-12 Linear LED Driver 50.4W 12V 4200mA - Slim

Name: Mean Well SLD-50-12 Linear LED Driver 50.4W 12V 4200mA - Slim
Brand: Mean Well
SKU: SLD-50-12
Price: 27.2 USD
Availability: InStock

$27.20 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

Constant Voltage + Constant Current mode output

Wide input range 110-305VAC with PFC function

Compliance with EN6 1347 regulation

Class 2/ Ⅱ power unit

Slim and Liner housing Design

No load power consumption ＜ 0.5W

3 years warranty

General Specification

AC input voltage range	110~305VAC 155~431VDC(Please refer to "STATIC CHARACTERISTIC" section)
AC inrush current	COLD START 50A (width=270μs measured at 50% peak) at 230VAC ; Per NEMA 410
DC Voltage	12V
Over current protection	95 ~ 108% Constant current limiting or Hiccup mode, recovers automatically after fault condition is removed
Over voltage protection	14 ~ 17V Shut down and latch off o/p voltage, re-power on to recover
Short circuit protection	Hiccup mode, recovers automatically after fault condition is removed
Over temperature protection	Shut down output voltage, re-power on to recover
Setup, rise, hold up time	500ms, 80ms 115VAC / 230VAC
Withstand voltage	I/P-O/P:3.75KVAC
Working temperature	case=-20 ~ +90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
Safety standards	UL8750(type ”HL”),CSA C22.2 No. 250.13-12, ENEC EN61347-1, EN61347-2-13 independent, EN62384, EAC TP TC 004 , GB19510.1,GB19510.14
EMC standards	EN55015(CISPR15) ,GB/T17743, EN61000-3-2 ,GB/T17625.1,EN61000-3-3;EN61000-4-2,3,4,5,6,8,11
Dimension (LxWxH)	280x30x16.8mm
Packing	64pcs / 12.4kg

Specifications

Brand

Mean Well
Series

SLD Series
Power Rating

50.4 Watt
Output Voltage

12 Volt
Rated Current

4.2 Ampere
Input Voltage

110V~305V
No of Output

1
Dimming Control

None
Standards Met

CB,CCC,CE,EAC,ENEC,RCM,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-20°C~90°C
Warranty

3 Year
Length

11.02 in
Width

1.18 in
Height

0.66 in
Weight

0.39 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

General Specification

AC input voltage range

110~305VAC 155~431VDC(Please refer to "STATIC CHARACTERISTIC" section)

AC inrush current

COLD START 50A (width=270μs measured at 50% peak) at 230VAC ; Per NEMA 410

DC Voltage

12V

Over current protection

95 ~ 108% Constant current limiting or Hiccup mode, recovers automatically after fault condition is removed

Over voltage protection

14 ~ 17V Shut down and latch off o/p voltage, re-power on to recover

Short circuit protection

Hiccup mode, recovers automatically after fault condition is removed

Over temperature protection

Shut down output voltage, re-power on to recover

Setup, rise, hold up time

500ms, 80ms 115VAC / 230VAC

Withstand voltage

I/P-O/P:3.75KVAC

Working temperature

case=-20 ~ +90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)

Safety standards

UL8750(type ”HL”),CSA C22.2 No. 250.13-12, ENEC EN61347-1, EN61347-2-13 independent, EN62384,
EAC TP TC 004 , GB19510.1,GB19510.14

EMC standards

EN55015(CISPR15) ,GB/T17743, EN61000-3-2 ,GB/T17625.1,EN61000-3-3;EN61000-4-2,3,4,5,6,8,11

Dimension (LxWxH)

280x30x16.8mm

Packing

64pcs / 12.4kg
