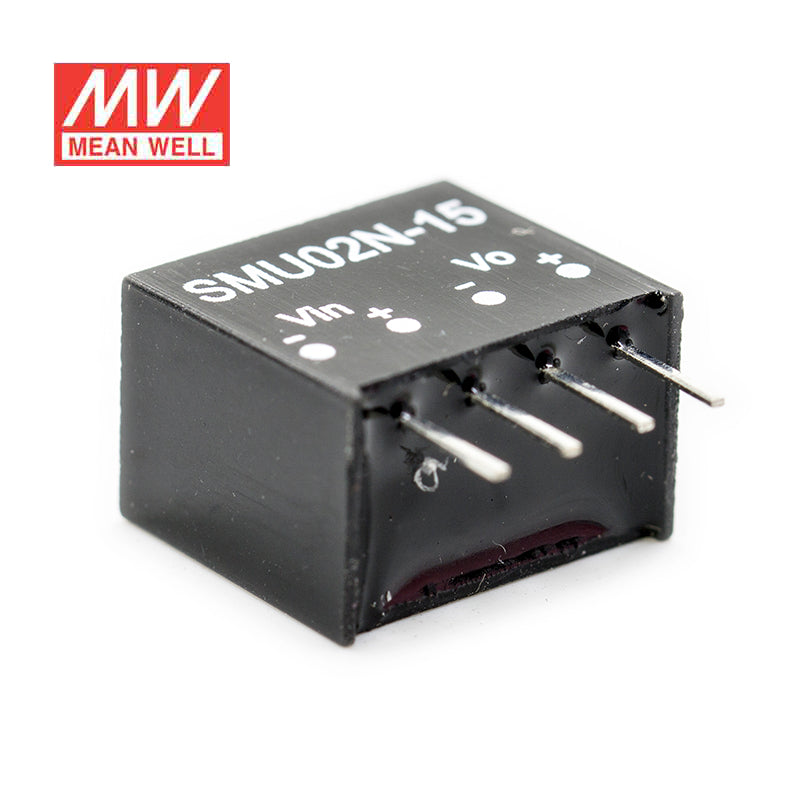

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well SMU02N-15 DC-DC Converter - 2W - 21.6~26.4V in 15V out

SKU:

SMU02N-15

$5.34 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

SIP package

Industry standard pinout

1500VDC I/O isolation

Built-in EMI filter without external components

Cooling by free air convection

Non-conductive plastic case

100% full load burn-in test

Low cost, high reliability

Dual in-line package for SMA01

2 years warranty

General Specification

Voltage set point accuracy	±2.0% (max.)
Line regulation	±1.2% (max.) for 1% input variation
Load regulation	±8.0% (max.)@20~100% load
Input reflected ripple	80mVp-p
Efficiency	85% (typical)
Short circuit protection	Momentary
Switching frequency	100kHz (min.)
I/O isolation voltage	1500VDC (min.)
I/O isolation resistance	100MQ(min.)@500DC
Working temperature	-40°C to +85°C
Storage temperature	-55°C to +125°C
EMC	Compliance to EN55022 class B, EN61000-4-2,3,4,5,6,8, FCC part15 class B
Isolation capacitance	80pF (max.)
Dimension (LxWxH) (mm)	11.6 x 7.5 x 10.14mm or 0.46" x 0.30" x 0.40" inch
Safety standards	UL60950-1 approved

Specifications

Brand

Mean Well
Series

SMU Series
Power Rating

2 Watt
Output Voltage

15 Volt
Rated Current

0.13 Ampere
Input Voltage

21.6V~26.4V
No of Output

1
Dimming Control

None
Standards Met

CE,EMC,FCC
Operation Mode

Constant Voltage
Operating Temperature

-40°C~85°C
Warranty

2 Year
Length

0.46 in
Width

0.4 in
Height

0.3 in
Weight

0 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the SMU02N-15 in a 24V industrial system to create a 15V auxiliary rail?

Yes, it is meant for 21-26VAC input systems that need a 15V constant voltage output. At 2W with 133A listed output current, it fits low-power 15V auxiliary electronics rather than heavier 15V loads.

Is the SMU02N-15 suitable for 15V analog or interface circuits in automation equipment?

It is a reasonable fit for small 15V interface, analog, or control subcircuits when the source is 21-26VAC. The 2W power level keeps it in the low-power embedded and automation category.

Can this converter be used in compact embedded hardware where board space matters?

Its 11.6 × 10.14 × 7.5 mm dimensions and 0.0013 kg weight make it well suited to very compact electronics assemblies. That form factor is useful when a low-power 15V rail is needed inside dense industrial or embedded designs.

Does the SMU02N-15 work in cold or hot operating conditions?

The specified operating temperature is -40°C to +85°C, so it supports a wide ambient range. Since no IP rating is listed, it should still be used in protected indoor enclosures instead of exposed outdoor conditions.

What is the difference between the SMU02N-15 and the other SMU02N converters?

The listed sibling set includes SMU02N-05 at 2W, 5V, and 400A listed output current, SMU02N-12 at 2W, 12V, and 167A listed output current, and SMU02N-15 at 2W, 15V, and 133A listed output current. Across this group, the output voltage and listed output current change while the 2W power class stays the same.

Model	Power	Voltage	Current	IP Rating	Price
Mean Well SMU02N-12 DC-DC Converter - 2W - 21.6~26.4V in 12V out	2W	12V	0.16A	Indoor	$5.34	View
Mean Well SMU02N-05 DC-DC Converter - 2W - 21.6~26.4V in 5V out	2W	5V	0.4A	Indoor	$5.34	View
Mean Well SMU02M-15 DC-DC Converter - 2W - 10.8~13.2V in 15V out	2W	15V	0.13A	Indoor	$5.34	View
Mean Well SMU02M-12 DC-DC Converter - 2W - 10.8~13.2V in 12V out	2W	12V	0.16A	Indoor	$5.34	View
Mean Well SMU02M-05 DC-DC Converter - 2W - 10.8~13.2V in 5V out	2W	5V	0.4A	Indoor	$5.34	View
Mean Well SMU02L-15 DC-DC Converter - 2W - 4.5~5.5V in 15V out	2W	15V	0.13A	Indoor	$5.34	View
Mean Well SMU02L-12 DC-DC Converter - 2W - 4.5~5.5V in 12V out	2W	12V	0.16A	Indoor	$5.34	View
Mean Well SMU02L-05 DC-DC Converter - 2W - 4.5~5.5V in 5V out	2W	5V	0.4A	Indoor	$5.34	View
