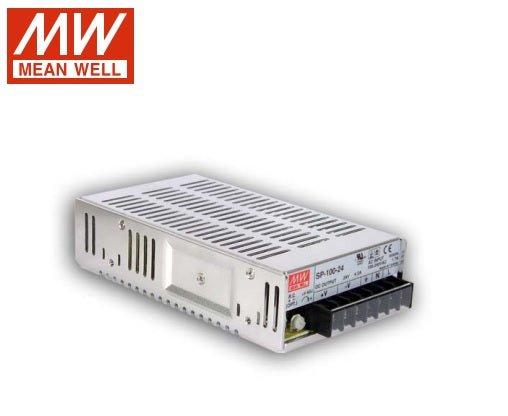

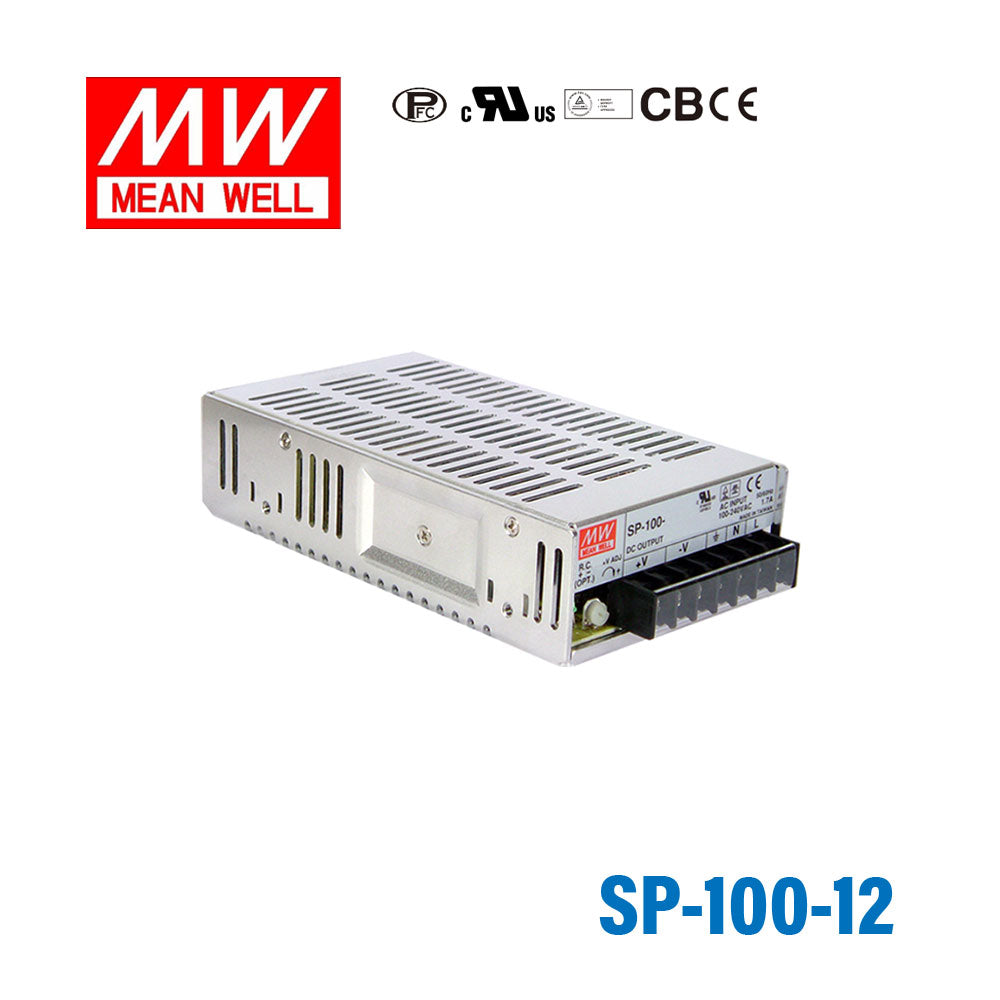

Mean Well SP-100-12 Power Supply 100W 12V 8.5A
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well SP-100-12 Power Supply 100W 12V 8.5A
Overview
SP-100-12 is the 12V output model of this series: rated current 8.5A, rated power 102W, typical efficiency 82.5%.
Features
- Universal AC input / full range
- Built-in active PFC function, PF>0.93
- Protections: Short circuit / Overload / Over voltage
- Built-in constant current limiting circuit
- Remote ON-OFF control(Optional)
- LED indicator for power on
- 100% full load burn-in test
- Fixed switching frequency at PFC:67KHz PWM:134KHz
- 3 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 12V
- RATED CURRENT
- 8.5A
- CURRENT RANGE
- 0 ~ 8.5A
- RATED POWER
- 102W
- RIPPLE & NOISE (max.)Note.2
- 100mVp-p
- VOLTAGE ADJ. RANGE
- 11.4 ~ 13.2V
- VOLTAGE TOLERANCENote.3
- ±2.0%
- LINE REGULATION
- ±0.5%
- LOAD REGULATION
- ±0.5%
- SETUP, RISE TIME
- 600ms, 30ms at full load
- HOLD UP TIME (Typ.)
- 20ms at full load
INPUT
- VOLTAGE RANGE
- 85 ~ 264VAC 120 ~ 370VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR (Typ.)
- PF>0.93/230VAC PF>0.97/115VAC at full load
- EFFICIENCY (Typ.)
- 82.5%
- AC CURRENT (Typ.)
- 1.7A/115VAC 0.8A/230VAC
- INRUSH CURRENT (Typ.)
- COLD START 35A/230VAC
- LEAKAGE CURRENT
- <2mA / 240VAC
PROTECTION
- OVERLOAD
- 105 ~ 150% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 13.2 ~ 16.2V Protection type : Shut down o/p voltage, re-power on to recover
FUNCTION
- REMOTE CONTROL(OPTION)
- CN1:4 ~ 10VDC POWER ON, <0 ~ 0.8VDC POWER OFF
ENVIRONMENT
- WORKING TEMP.
- -10 ~ +60℃ (Refer to output load derating curve)
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -20 ~ +85℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.05%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- UL60950-1 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 / 70% RH
- EMC EMISSION
- Compliance to EN55032 (CISPR32) Class B,EN61000-3-2,-3
- EMC IMMUNITY
- Compliance to EN61000-4-2,3,4,5,6,8,11; ENV50204, EN55024, light industry level, criteria A
OTHERS
- MTBF
- 211.3K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 179*99*45mm (L*W*H)
- PACKING
- 0.66Kg; 20pcs/14.3Kg/1.17CUFT
Test conditions and notes4
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com)
Technical drawings
Downloads
Datasheet1
FAQ
Can I use the SP-100-12 for a 12V industrial control panel?
Yes, it is a constant voltage 12V power supply with 102W output and 8.5A output current. That makes it suitable for 12V control panels, automation accessories, and other 12V industrial loads that stay within 8.5A.
Is the SP-100-12 suitable for 12V HMI, fan, or relay loads in equipment cabinets?
It can support 12V cabinet devices that need a stable constant voltage source, provided the total load does not exceed 102W or 8.5A. The 85-264VAC input range also fits facilities that need wide AC input compatibility.
Can this power supply run 12V embedded or IT hardware with moderate current draw?
It is appropriate for 12V embedded and IT hardware when the system requires constant voltage and remains within the 8.5A output limit. With 102W available, it fits moderate-power 12V electronics better than small plug-in adapters.
How do I know if the SP-100-12 is large enough for my 12V load?
Size it against both the 12V output and the 8.5A or 102W maximum output rating. If your equipment stays within those limits, this model is in the correct output class.
Can the SP-100-12 be used outdoors or in unprotected areas?
Its operating temperature range is -10°C to +60°C, so ambient temperature should stay within that range. No IP rating is listed, which means it is better suited to protected indoor enclosures than exposed outdoor locations.
