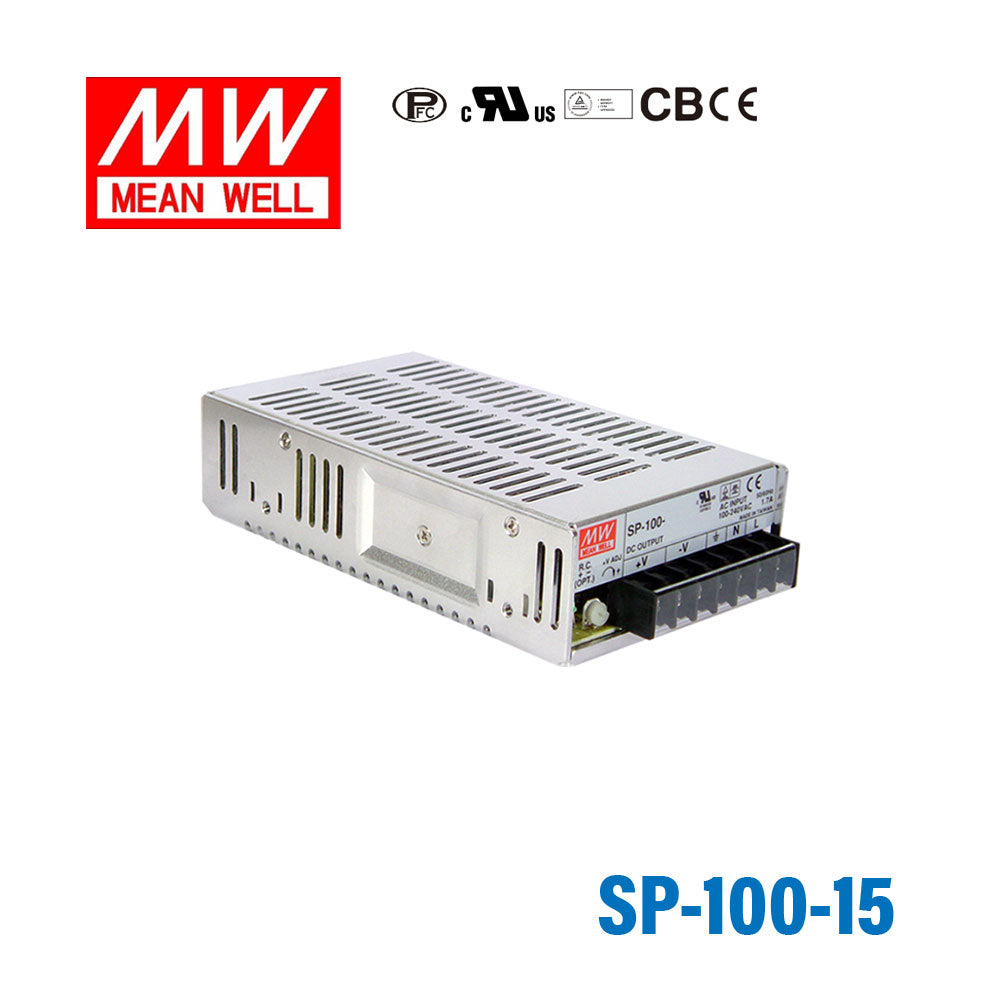

Mean Well SP-100-15 Power Supply 100W 15V 6.7A
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well SP-100-15 Power Supply 100W 15V 6.7A
Overview
SP-100-15 is the 15V output model of this series: rated current 6.7A, rated power 100.5W, typical efficiency 84%.
Features
- Universal AC input / full range
- Built-in active PFC function, PF>0.93
- Protections: Short circuit / Overload / Over voltage
- Built-in constant current limiting circuit
- Remote ON-OFF control(Optional)
- LED indicator for power on
- 100% full load burn-in test
- Fixed switching frequency at PFC:67KHz PWM:134KHz
- 3 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 15V
- RATED CURRENT
- 6.7A
- CURRENT RANGE
- 0 ~ 6.7A
- RATED POWER
- 100.5W
- RIPPLE & NOISE (max.)Note.2
- 100mVp-p
- VOLTAGE ADJ. RANGE
- 14.3 ~ 16.5V
- VOLTAGE TOLERANCENote.3
- ±2.0%
- LINE REGULATION
- ±0.5%
- LOAD REGULATION
- ±0.5%
- SETUP, RISE TIME
- 600ms, 30ms at full load
- HOLD UP TIME (Typ.)
- 20ms at full load
INPUT
- VOLTAGE RANGE
- 85 ~ 264VAC 120 ~ 370VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR (Typ.)
- PF>0.93/230VAC PF>0.97/115VAC at full load
- EFFICIENCY (Typ.)
- 84%
- AC CURRENT (Typ.)
- 1.7A/115VAC 0.8A/230VAC
- INRUSH CURRENT (Typ.)
- COLD START 35A/230VAC
- LEAKAGE CURRENT
- <2mA / 240VAC
PROTECTION
- OVERLOAD
- 105 ~ 150% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 16.5 ~ 20.25V Protection type : Shut down o/p voltage, re-power on to recover
FUNCTION
- REMOTE CONTROL(OPTION)
- CN1:4 ~ 10VDC POWER ON, <0 ~ 0.8VDC POWER OFF
ENVIRONMENT
- WORKING TEMP.
- -10 ~ +60℃ (Refer to output load derating curve)
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -20 ~ +85℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.05%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- UL60950-1 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 / 70% RH
- EMC EMISSION
- Compliance to EN55032 (CISPR32) Class B,EN61000-3-2,-3
- EMC IMMUNITY
- Compliance to EN61000-4-2,3,4,5,6,8,11; ENV50204, EN55024, light industry level, criteria A
OTHERS
- MTBF
- 211.3K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 179*99*45mm (L*W*H)
- PACKING
- 0.66Kg; 20pcs/14.3Kg/1.17CUFT
Test conditions and notes4
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com)
Technical drawings
Downloads
Datasheet1
FAQ
Can I use the SP-100-15 for a 15V industrial or automation power rail?
Yes, it is a constant voltage 15V supply rated for 100.5W and 6.7A. That makes it suitable for 15V industrial, automation, and embedded loads that fit within 6.7A.
Is the SP-100-15 a good fit for 15V test, control, or interface equipment?
It fits equipment that needs a regulated 15V output and can be powered from an 85-264VAC input. The 100.5W capacity supports moderate-power 15V devices in cabinets, benches, and control assemblies.
Can this model power 15V analog or communications hardware in an equipment enclosure?
It can, as long as the total demand stays within 6.7A at 15V. The constant voltage output is appropriate for electronics that require a fixed 15V rail rather than a variable or constant current source.
How do I check whether the SP-100-15 is the right size for my load?
Match your load to the unit's 15V output and confirm the total draw is no more than 6.7A or 100.5W. If your required current or wattage is higher than those values, you need a larger 15V model.
Is the SP-100-15 meant for indoor or outdoor environments?
The specified operating temperature is -10°C to +60°C, so the site temperature should remain within that band. Because no IP rating is listed, it is better used in protected indoor equipment or enclosures instead of exposed outdoor areas.
