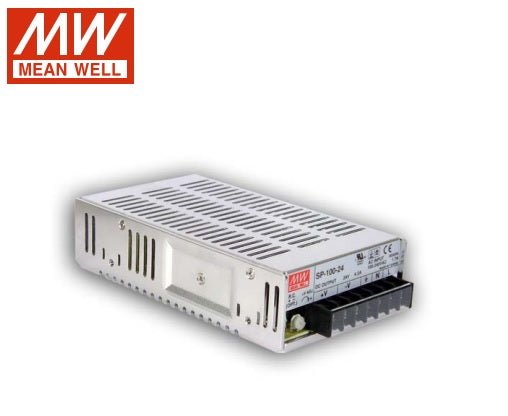

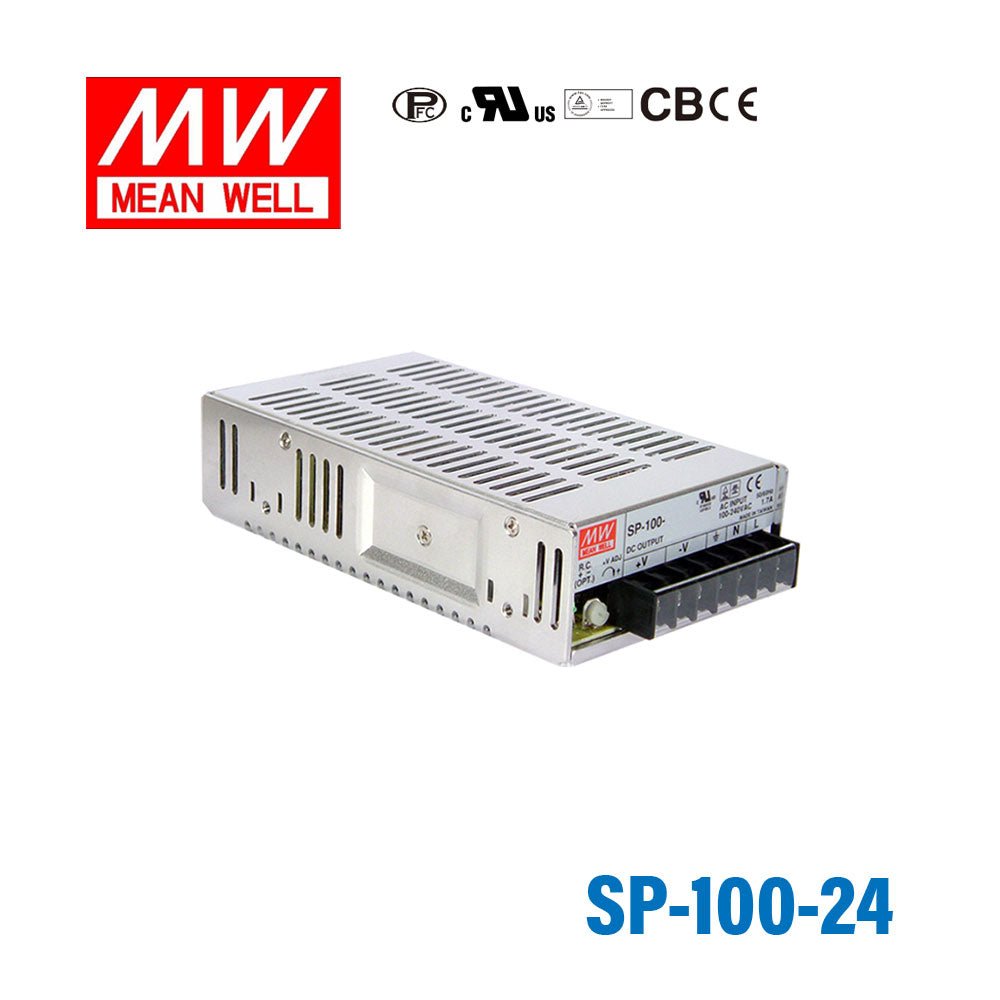

Mean Well SP-100-24 Power Supply 100W 24V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well SP-100-24 Power Supply 100W 24V
Description
Description
EN55022(CISPR22) Class B,EN61000-3-2,-3, GB9254 class B,EN61000-4-2,3,4,5,6,8,11,EN55024
Key Features
- ✓Universal AC input / Full range
- ✓Built-in active PFC function PF>0.93
- ✓Protections:Short circuit/ Overload / Over voltage
- ✓Built-in constant current limiting circuit
- ✓Remote ON-OFF control(Optional)
- ✓LED indicator for power on
- ✓100% full load burn-in test
- ✓Fixed switching frequency at PFC:67KHz PWM:134KHz
- ✓3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well SHP Series
-
Power Rating100.8 Watt
-
Output Voltage24 Volt
-
Rated Current4.2 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~60°C
-
Warranty3 Year
-
Length7.05 in
-
Width3.9 in
-
Height1.77 in
-
Weight1.46 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the SP-100-24 for a 24V PLC or industrial control panel?
Yes, if the control system requires a 24V constant-voltage supply and the total load stays within 4.2A and 100.8W. That makes it suitable for many 24V industrial control, automation, and embedded panel applications that run from a universal 85-264VAC input.
Is the SP-100-24 suitable for 24V sensors, relays, and HMI-related control loads?
It can be a fit for grouped 24V control loads when the combined demand does not exceed 4.2A or 100.8W. Because it is a constant-voltage model, it is intended for equipment designed to run from a regulated 24V rail.
Can this 24V power supply be used for embedded or automation test benches?
Yes, for embedded or automation benches built around a 24V DC bus, provided the load remains within 100.8W and 4.2A. Its 85-264VAC input also makes it practical in labs or service areas where the AC source may vary.
Is the SP-100-24 meant for outdoor or harsh-environment use?
The listed specs include an operating temperature range of -10°C to +60°C, but no IP rating is provided. Based on the published specs, it is better treated as an indoor power supply unless the final enclosure provides the required environmental protection.
How does the SP-100-24 compare with nearby 24V models in the SP series?
Within the listed siblings, the SP-100-24 is 100.8W at 24V and 4.2A, the SP-150-24 is 151.2W at 24V and 6.3A, the SP-200-24 is 200W at 24V and 8.4A, and the SP-480-24 is 480W at 24V and 20A. The main differences are available output power and current at the same 24V output.
Other SP-100 Models
4 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well SP-100-15 Power Supply 100W 15V | 100.5W | 15V | 6.7A | Indoor | $33.05 | View |
| Mean Well SP-100-7.5 Power Supply 100W 7.5V | 101.25W | 7.5V | 13.5A | Indoor | $33.05 | View |
| Mean Well SP-100-5 Power Supply 100W 5V | 100W | 5V | 20A | Indoor | $33.05 | View |
| Mean Well SP-100-12 Power Supply 100W 12V | 102W | 12V | 8.5A | Indoor | $33.05 | View |
