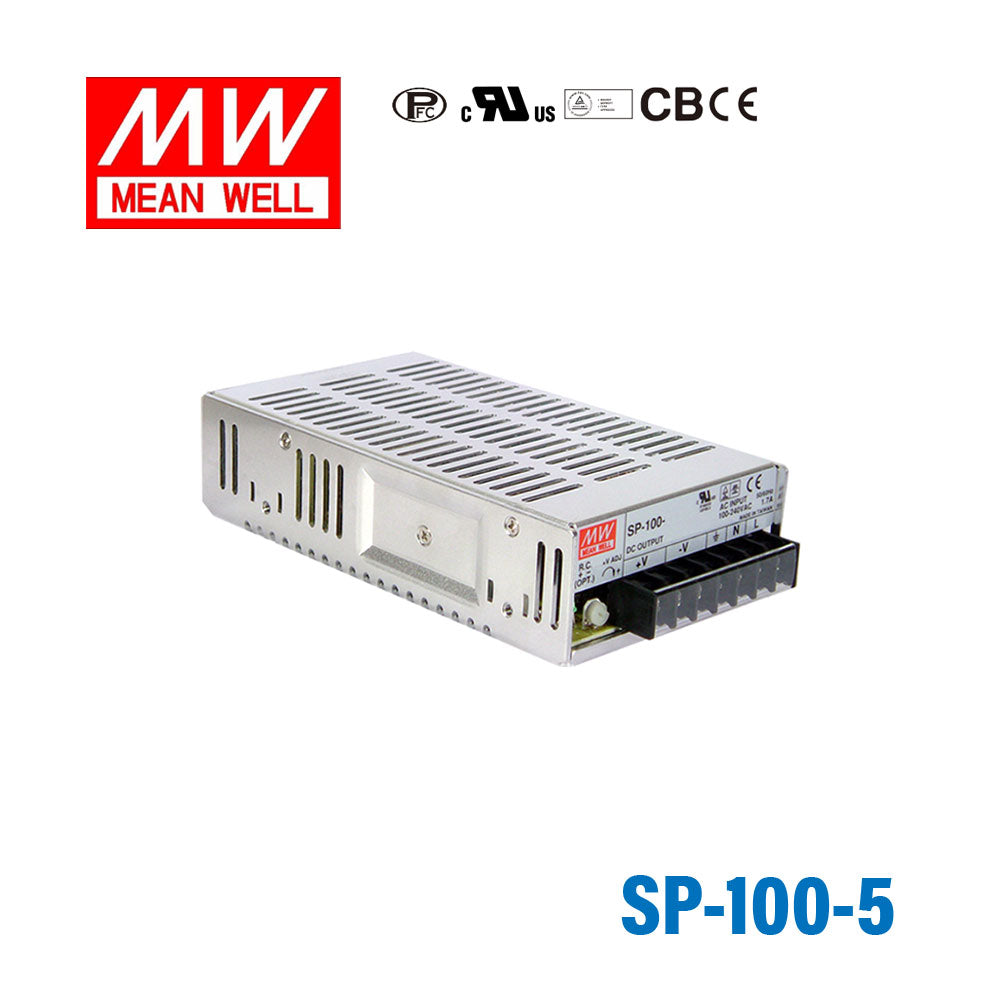

Mean Well SP-100-5 Power Supply 100W 5V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well SP-100-5 Power Supply 100W 5V
Description
Description
EN55022(CISPR22) Class B,EN61000-3-2,-3, GB9254 class B,EN61000-4-2,3,4,5,6,8,11,EN55024
Key Features
- ✓Universal AC input / Full range
- ✓Built-in active PFC function PF>0.93
- ✓Protections:Short circuit/ Overload / Over voltage
- ✓Built-in constant current limiting circuit
- ✓Remote ON-OFF control(Optional)
- ✓LED indicator for power on
- ✓100% full load burn-in test
- ✓Fixed switching frequency at PFC:67KHz PWM:134KHz
- ✓3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well SHP Series
-
Power Rating100 Watt
-
Output Voltage5 Volt
-
Rated Current20 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~60°C
-
Warranty3 Year
-
Length7.05 in
-
Width3.9 in
-
Height1.77 in
-
Weight1.46 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the SP-100-5 for a 5V embedded controller or single-board computer setup?
Yes, if the system is designed for a 5V constant-voltage input and the total load stays within 20A and 100W. That makes it relevant for high-current 5V embedded, industrial computing, and controller applications powered from 85-264VAC.
Is the SP-100-5 a good fit for multiple 5V logic boards or peripherals in one cabinet?
It can be, because this model provides 5V at up to 20A with a total output of 100W. It is best suited to grouped 5V loads where the combined current and wattage remain inside those limits.
Can the SP-100-5 be used in IT or industrial electronics that run on a heavy 5V rail?
Yes, for equipment that specifically calls for a regulated 5V DC supply and needs no more than 20A or 100W. Its constant-voltage output is appropriate for electronics built around a 5V bus rather than higher-voltage control power.
Is this power supply suitable for outdoor use or washdown areas?
The published specs show an operating temperature range of -10°C to +60°C, but they do not list an IP rating. On that basis, it should be treated as an indoor unit unless the surrounding enclosure is designed to provide the environmental protection.
How does the SP-100-5 compare with other 5V SP-series options?
Among the listed siblings, the SP-75-5 is 49.5W, the SP-100-5 is 100W at 5V and 20A, the SP-150-5 is 99W, the SP-240-5 is 240W at 5V and 45A, the SP-320-5 is 181.5W, the SP-320-5PNC is 181.5W, and the SP-480-5 is 280.5W. The practical difference between them is the available 5V output capacity.
Other SP-100 Models
4 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well SP-100-15 Power Supply 100W 15V | 100.5W | 15V | 6.7A | Indoor | $33.05 | View |
| Mean Well SP-100-7.5 Power Supply 100W 7.5V | 101.25W | 7.5V | 13.5A | Indoor | $33.05 | View |
| Mean Well SP-100-24 Power Supply 100W 24V | 100.8W | 24V | 4.2A | Indoor | $33.05 | View |
| Mean Well SP-100-12 Power Supply 100W 12V | 102W | 12V | 8.5A | Indoor | $33.05 | View |
