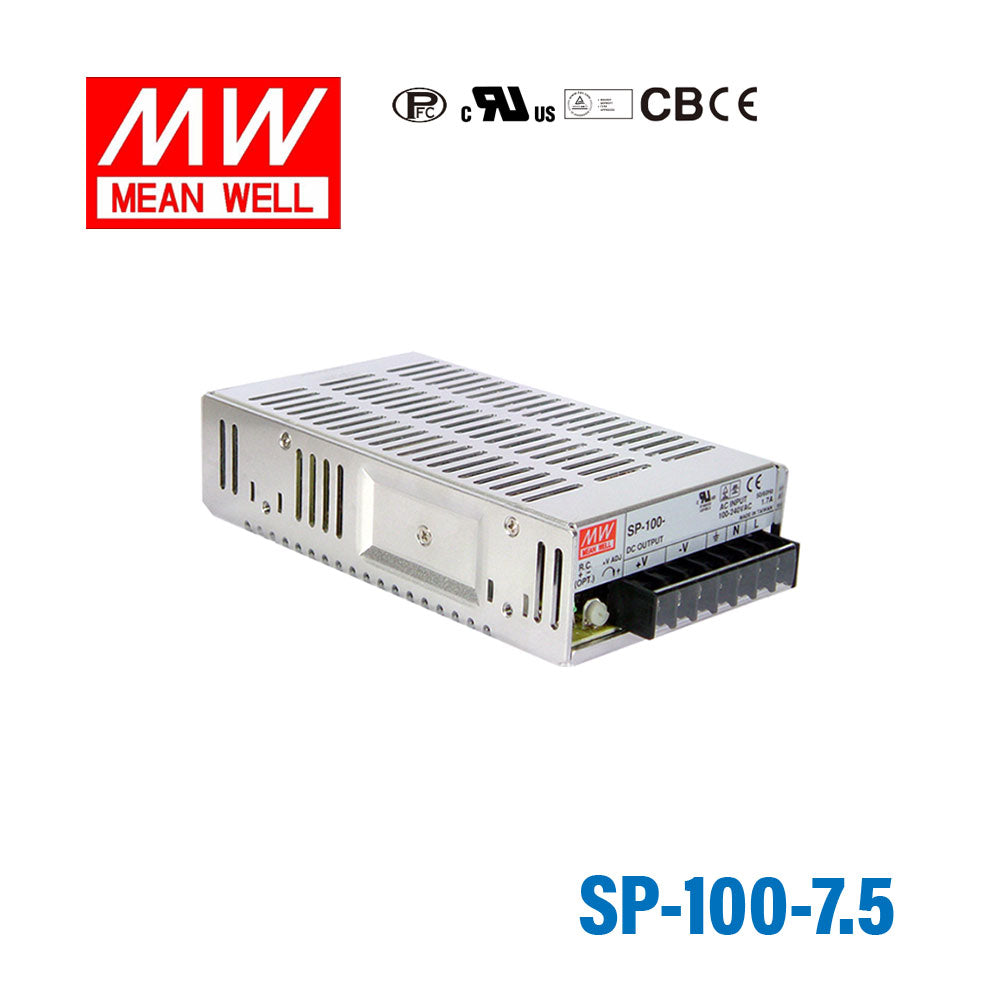

Mean Well SP-100-7.5 Power Supply 100W 7.5V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well SP-100-7.5 Power Supply 100W 7.5V
Description
Description
EN55022(CISPR22) Class B,EN61000-3-2,-3, GB9254 class B,EN61000-4-2,3,4,5,6,8,11,EN55024
Key Features
- ✓Universal AC input / Full range
- ✓Built-in active PFC function PF>0.93
- ✓Protections:Short circuit/ Overload / Over voltage
- ✓Built-in constant current limiting circuit
- ✓Remote ON-OFF control(Optional)
- ✓LED indicator for power on
- ✓100% full load burn-in test
- ✓Fixed switching frequency at PFC:67KHz PWM:134KHz
- ✓3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well SHP Series
-
Power Rating101.25 Watt
-
Output Voltage7.5 Volt
-
Rated Current13.5 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~60°C
-
Warranty3 Year
-
Length7.05 in
-
Width3.9 in
-
Height1.77 in
-
Weight1.46 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the SP-100-7.5 for equipment that requires a 7.5V DC rail?
Yes, if the equipment is specified for a 7.5V constant-voltage input and the load does not exceed 13.5A or 101.25W. This makes it relevant for embedded, industrial, or automation hardware built around a 7.5V bus.
Is the SP-100-7.5 suitable for older control electronics or specialty embedded systems?
It can be suitable when those systems are designed for 7.5V DC and their combined demand stays within 101.25W and 13.5A. The key match point is the required output voltage, since this is a fixed constant-voltage 7.5V model.
Can this model support a 7.5V automation test fixture or service bench?
Yes, for a bench or fixture built around 7.5V loads, provided the total requirement stays at or below 13.5A and 101.25W. The wide 85-264VAC input also helps when the AC source is not limited to one mains range.
Should the SP-100-7.5 be used outdoors?
The listed environmental data gives an operating range of -10°C to +60°C, but no IP rating is shown. From the published specs alone, it is more appropriate for indoor use unless a separate enclosure handles outdoor exposure.
How does the SP-100-7.5 compare with other 7.5V models in the same family?
In the listed siblings, the SP-75-7.5 is 49.5W, the SP-100-7.5 is 101.25W at 7.5V and 13.5A, the SP-150-7.5 is 150W at 7.5V and 20A, the SP-200-7.5 is 132W, the SP-240-7.5 is 225W, and the SP-320-7.5 is 181.5W. The main distinction is how much 7.5V output power and current each model can provide.
