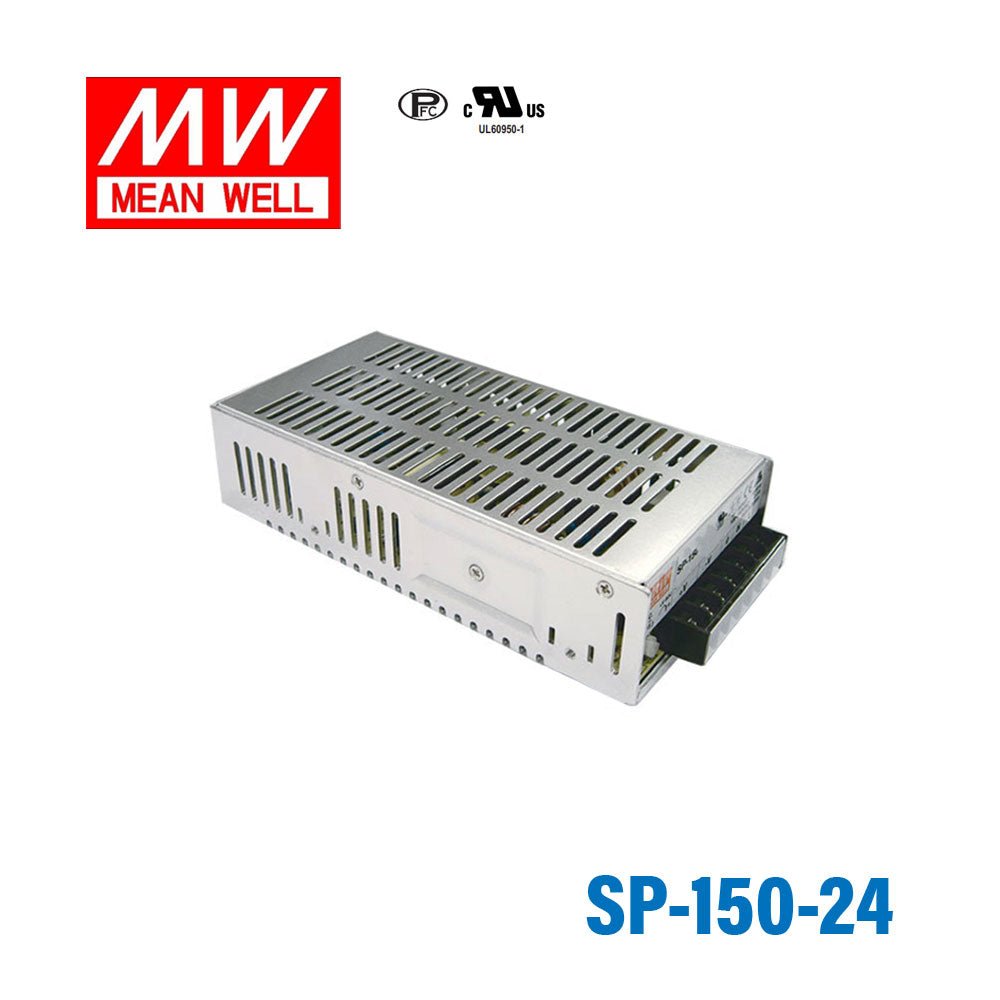

Mean Well SP-150-24 Power Supply 150W 24V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well SP-150-24 Power Supply 150W 24V
Description
Description
EN55022(CISPR22) Class B,EN61000-3-2,-3, GB9254 class B,EN61000-4-2,3,4,5,6,8,11,EN55024
Key Features
- ✓Universal AC input / Full range
- ✓Built-in active PFC function PF>0.93
- ✓Protections:Short circuit/ Overload / Over voltage
- ✓Built-in constant current limiting circuit
- ✓Remote ON-OFF control(Optional)
- ✓LED indicator for power on
- ✓100% full load burn-in test
- ✓Fixed switching frequency at PFC:67KHz PWM:134KHz
- ✓3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well SHP Series
-
Power Rating151.2 Watt
-
Output Voltage24 Volt
-
Rated Current6.3 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~55°C
-
Warranty3 Year
-
Length7.83 in
-
Width3.9 in
-
Height1.97 in
-
Weight1.68 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the SP-150-24 for a larger 24V PLC or automation panel than a 100W supply can handle?
Yes, if the system requires 24V constant voltage and the total load stays within 6.3A and 151.2W. That gives it more 24V output headroom than the 100.8W, 4.2A SP-100-24 for higher-load automation panels.
Is the SP-150-24 suitable for 24V industrial control equipment with several DC loads?
It can be a fit for 24V control equipment when the combined demand remains at or below 151.2W and 6.3A. This is appropriate for applications built around a regulated 24V bus rather than lower-voltage logic rails.
Can the SP-150-24 power a 24V embedded rack or test station?
Yes, for 24V embedded or industrial test setups that need no more than 6.3A and 151.2W from a constant-voltage source. The 85-264VAC input also helps in facilities with different AC mains standards.
Is this model appropriate for indoor or outdoor environments?
The operating temperature range is -10°C to +55°C, but no IP rating is listed in the published specs. Based on that information, it should be considered an indoor power supply unless the enclosure adds the needed environmental protection.
How does the SP-150-24 compare with other 24V models listed in the SP family?
The listed 24V siblings are SP-100-24 at 100.8W and 4.2A, SP-150-24 at 151.2W and 6.3A, SP-200-24 at 200W and 8.4A, and SP-480-24 at 480W and 20A. They share the same nominal 24V output, with the main difference being available power and current.
Other SP-150 Models
2 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well SP-150-7.5 Power Supply 150W 7.5V | 150W | 7.5V | 20A | Indoor | $37.12 | View |
| Mean Well SP-150-27 Power Supply 150W 27V | 151.2W | 27V | 5.6A | Indoor | $37.12 | View |
