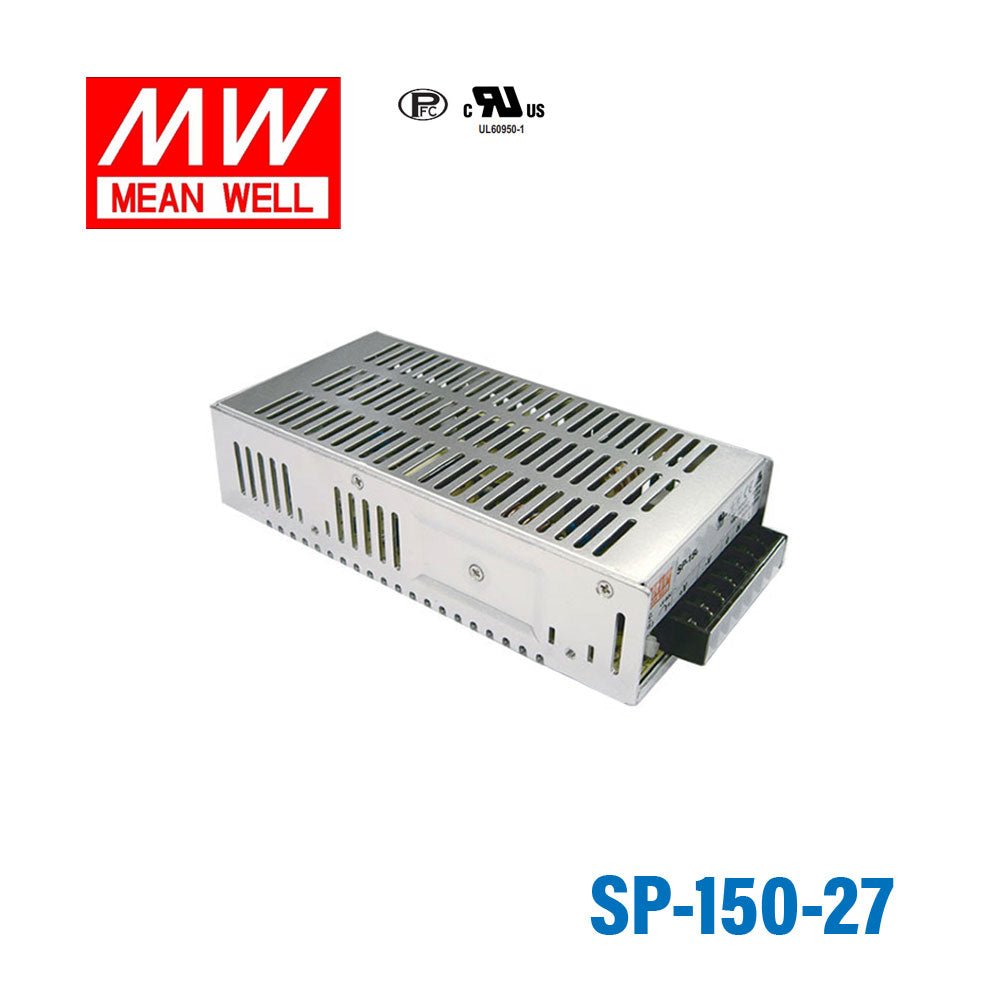

Mean Well SP-150-27 Power Supply 150W 27V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well SP-150-27 Power Supply 150W 27V
Description
Description
EN55022(CISPR22) Class B,EN61000-3-2,-3, GB9254 class B,EN61000-4-2,3,4,5,6,8,11,EN55024
Key Features
- ✓Universal AC input / Full range
- ✓Built-in active PFC function PF>0.93
- ✓Protections:Short circuit/ Overload / Over voltage
- ✓Built-in constant current limiting circuit
- ✓Remote ON-OFF control(Optional)
- ✓LED indicator for power on
- ✓100% full load burn-in test
- ✓Fixed switching frequency at PFC:67KHz PWM:134KHz
- ✓3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well SHP Series
-
Power Rating151.2 Watt
-
Output Voltage27 Volt
-
Rated Current5.6 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~55°C
-
Warranty3 Year
-
Length7.83 in
-
Width3.9 in
-
Height1.97 in
-
Weight1.68 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the SP-150-27 for equipment that specifically requires 27V DC?
Yes, if the equipment is designed for a 27V constant-voltage supply and its load does not exceed 5.6A or 151.2W. It is intended for systems that actually call for 27V, not for loads specified only for 24V or another voltage.
Is the SP-150-27 suitable for industrial or automation subsystems built around a 27V rail?
It can be suitable for industrial, embedded, or automation equipment that uses a regulated 27V DC bus and stays within 151.2W and 5.6A. The wide 85-264VAC input also supports use across different AC input environments.
Can this power supply be used on a 27V development bench or validation fixture?
Yes, for a bench or validation setup that requires 27V constant voltage and draws no more than 5.6A or 151.2W. It is a better match for 27V-specific testing than a nearby 24V model when the target load is rated for 27V.
Is the SP-150-27 rated for outdoor conditions?
The published specs state an operating temperature range of -10°C to +55°C, but they do not provide an IP rating. That means the datasheet information supports indoor use unless an external enclosure is used for environmental protection.
How does the SP-150-27 compare with other 27V models in the listed SP range?
The listed 27V siblings are SP-75-27 at 49.5W, SP-100-27 at 66W, SP-150-27 at 151.2W and 5.6A, SP-200-27 at 132W, SP-320-27 at 320W and 11.9A, and SP-500-27 with specs not shown here. The main differences are output power and, where provided, available current at 27V.
Other SP-150 Models
2 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well SP-150-7.5 Power Supply 150W 7.5V | 150W | 7.5V | 20A | Indoor | $37.12 | View |
| Mean Well SP-150-24 Power Supply 150W 24V | 151.2W | 24V | 6.3A | Indoor | $37.12 | View |
