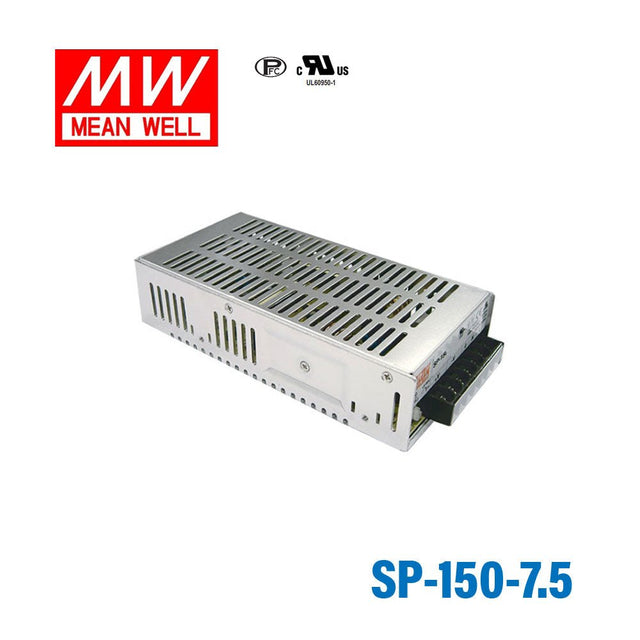

Mean Well SP-150-7.5 Power Supply 150W 7.5V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well SP-150-7.5 Power Supply 150W 7.5V
Description
Description
EN55022(CISPR22) Class B,EN61000-3-2,-3, GB9254 class B,EN61000-4-2,3,4,5,6,8,11,EN55024
Key Features
- ✓Universal AC input / Full range
- ✓Built-in active PFC function PF>0.93
- ✓Protections:Short circuit/ Overload / Over voltage
- ✓Built-in constant current limiting circuit
- ✓Remote ON-OFF control(Optional)
- ✓LED indicator for power on
- ✓100% full load burn-in test
- ✓Fixed switching frequency at PFC:67KHz PWM:134KHz
- ✓3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well SHP Series
-
Power Rating150 Watt
-
Output Voltage7.5 Volt
-
Rated Current20 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~55°C
-
Warranty3 Year
-
Length7.83 in
-
Width3.9 in
-
Height1.97 in
-
Weight1.68 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the SP-150-7.5 for a 7.5V industrial controller or logic board assembly?
Yes, this model is a constant-voltage 7.5V supply rated for 150W and 20A. It fits 7.5V industrial, embedded, or control loads that need a stable 7.5V source and stay within that output range.
Is the SP-150-7.5 suitable for a 7.5V embedded test bench or production fixture?
It can be a fit for a 7.5V bench or fixture setup when the connected load requires constant 7.5V and draws no more than 20A. The 150W output gives more headroom than lower-power 7.5V units in the same series.
Can this power supply be used for 7.5V automation peripherals that draw higher current?
Yes, the SP-150-7.5 is intended for constant-voltage 7.5V loads and can supply up to 20A. That makes it relevant for higher-current 7.5V peripherals or subsystems used in automation and industrial electronics.
Would the SP-150-7.5 work for a 7.5V OEM electronics assembly inside equipment?
It is suited to OEM equipment that needs a regulated 7.5V output, provided the total load remains within 150W and 20A. The universal 85-264VAC input also supports use across a wide AC input range.
Is the SP-150-7.5 meant for indoor or outdoor environments?
The listed operating temperature is -10°C to +55°C, so temperature suitability is defined within that range. No IP rating is provided in the specs, so outdoor or washdown suitability is not stated by the product data shown here.
Other SP-150 Models
2 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well SP-150-27 Power Supply 150W 27V | 151.2W | 27V | 5.6A | Indoor | $37.12 | View |
| Mean Well SP-150-24 Power Supply 150W 24V | 151.2W | 24V | 6.3A | Indoor | $37.12 | View |
