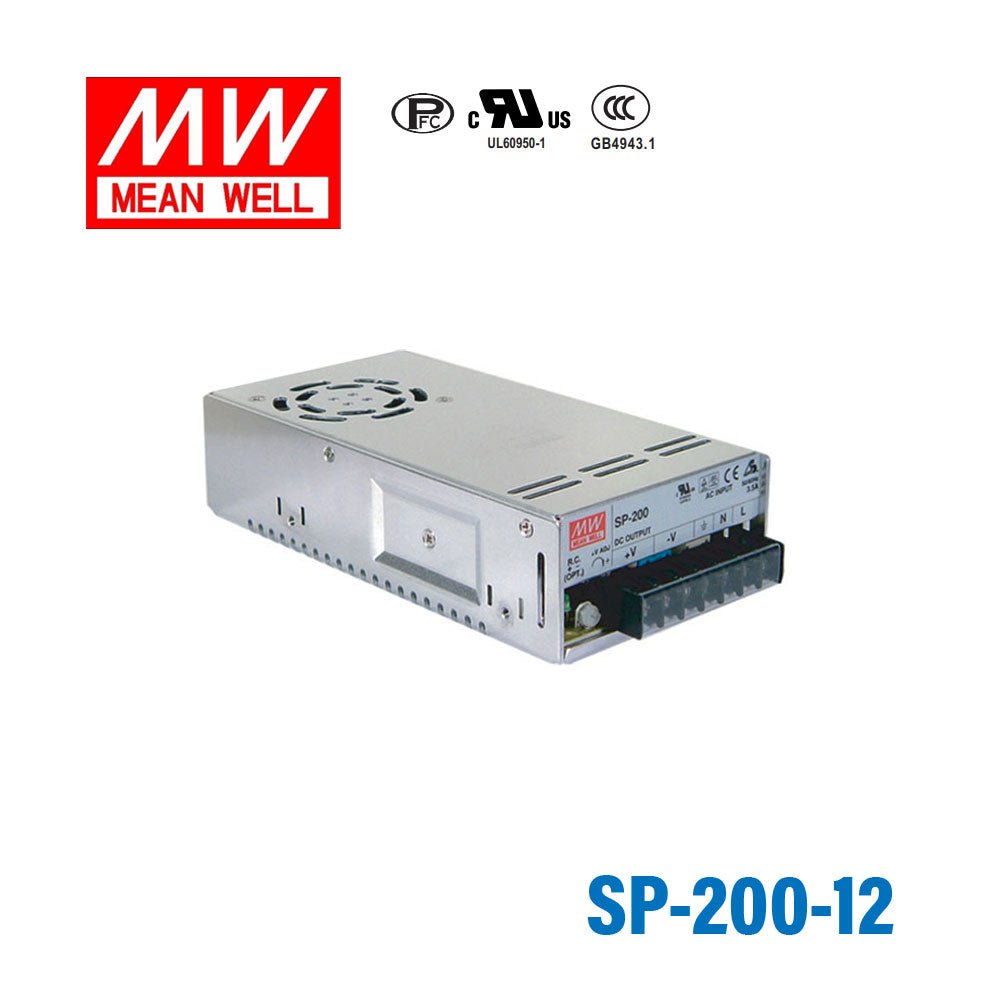

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well SP-200-12 Power Supply 200W 12V

SKU:

SP-200-12

Model

75W 12V

$28.68 USD

SKU: SP-75-12

100W 12V

$33.05 USD

SKU: SP-100-12

200W 12V

$42.98 USD

SKU: SP-200-12

320W 12V

$53.07 USD

SKU: SP-320-12

480W 12V

$118.60 USD

SKU: SP-480-12

Product variants

End of Life, Succeeded by RSP-200-12

$42.98 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

Universal AC input / Full range

Built-in active PFC function PF>0.93

Protections:Short circuit/ Overload / Over voltage

Built-in constant current limiting circuit

Remote ON-OFF control(Optional)

LED indicator for power on

100% full load burn-in test

Fixed switching frequency at PFC:67KHz PWM:134KHz

3 years warranty

General Specification

AC input voltage range	88~264VAC; 124~370VDC
AC inrush current (max.)	40A at 230VAC
DC adjustment range	±10% rated output voltage
Overload protection Range	105%~150%
Overload protection Type	Hiccup mode, auto-recovery
Over voltage protection Range	115%~145%
Over voltage protection Type	Shut down O/P voltage, re-power on to recover
Withstand voltage	I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature	-30~+70°C (refer to output derating curve)
Safety standards	UL60950-1, TUV EN60950-1, CCC GB4943 approved
EMC standards	EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, GB9254
Connection	9P / 9.5mm pitch terminal block
Dimension (LxWxH)	215x115x30

Specifications

Brand

Mean Well
Series

Mean Well SHP Series
Power Rating

200.4 Watt
Output Voltage

12 Volt
Rated Current

16.7 Ampere
Input Voltage

88V~264V
No of Output

1
Standards Met

BSMI,CB,CCC,CE,EAC,RCM,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-10°C~60°C
Warranty

3 Year
Length

7.83 in
Width

3.9 in
Height

1.97 in
Weight

1.87 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the SP-200-12 to power a 12V PLC or industrial control panel?

Yes, this is a constant-voltage 12V power supply rated for 200.4W and 16.7A. It is appropriate for 12V industrial control loads that require regulated 12V and stay within that current and power capacity.

Is the SP-200-12 suitable for 12V CCTV, access control, or building automation equipment?

It can be used for 12V constant-voltage building and security systems when the combined load does not exceed 16.7A or 200.4W. Buyers typically choose this type of supply when several 12V devices need one centralized source.

Would this work for a 12V embedded computer, HMI, or industrial display setup?

Yes, if the equipment is designed for 12V DC input and the total draw stays within 16.7A. The SP-200-12 provides a fixed 12V output rather than an adjustable multi-voltage output, which suits dedicated 12V systems.

Can the SP-200-12 support a larger 12V LED or signage load than a lower-power 12V supply?

Yes, it offers 200.4W at 12V, so it supports more 12V load than smaller 12V models such as the SP-100-12 at 102W and 8.5A. It is intended for constant-voltage 12V applications that need higher current availability.

Is the SP-200-12 rated for harsh temperature conditions or outdoor use?

Its specified operating range is -10°C to +60°C. No IP rating is listed in the provided specs, so the product data does not define it as an outdoor or weather-exposed power supply.
