Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

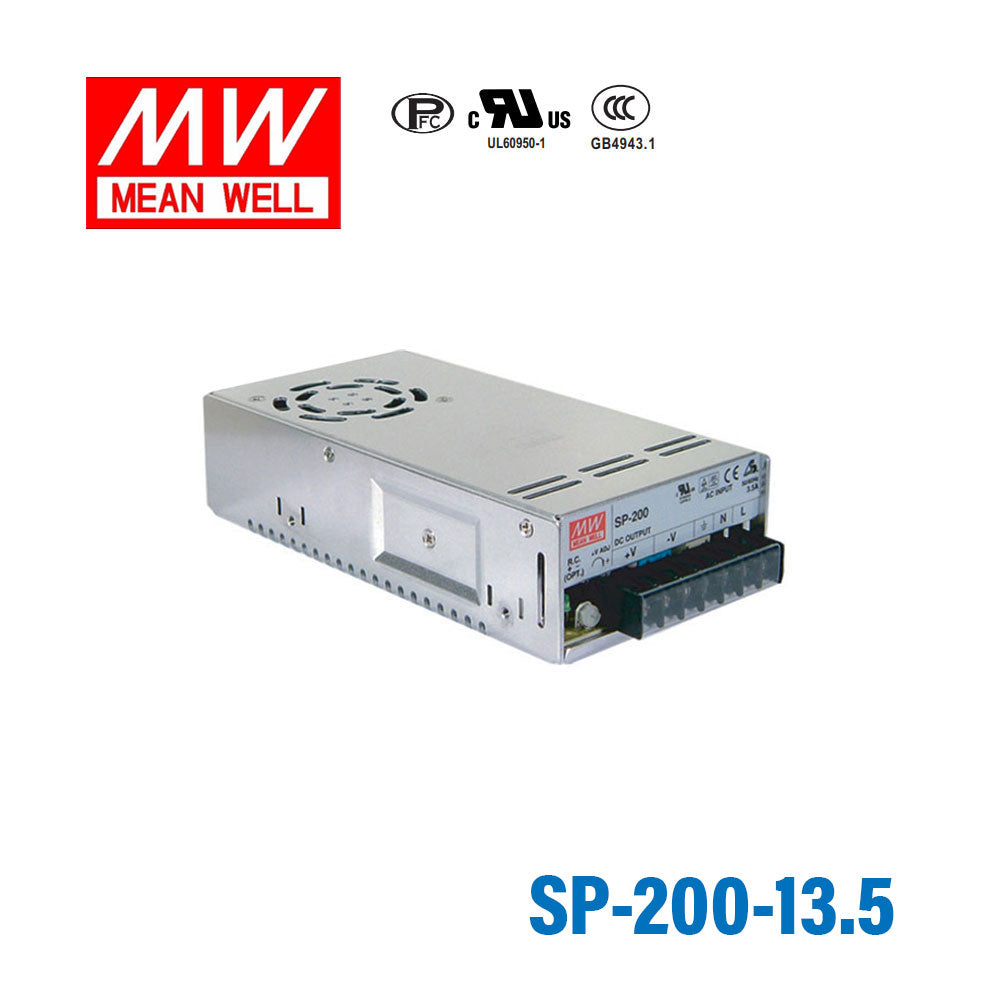

Mean Well SP-200-13.5 Power Supply 200W 13.5V

$42.98 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

Universal AC input / Full range
Built-in active PFC function PF>0.93
Protections:Short circuit/ Overload / Over voltage
Built-in constant current limiting circuit
Remote ON-OFF control(Optional)
LED indicator for power on
100% full load burn-in test
Fixed switching frequency at PFC:67KHz PWM:134KHz
3 years warranty

General Specification

AC input voltage range 88~264VAC; 124~370VDC
AC inrush current (max.) 40A at 230VAC
DC adjustment range ±10% rated output voltage
Overload protection Range 105%~150%
Overload protection Type Hiccup mode, auto-recovery
Over voltage protection Range 115%~145%
Over voltage protection Type Shut down O/P voltage, re-power on to recover
Withstand voltage I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature -30~+70°C (refer to output derating curve)
Safety standards UL60950-1, TUV EN60950-1, CCC GB4943 approved
EMC standards EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, GB9254
Connection 9P / 9.5mm pitch terminal block
Dimension (LxWxH) 215x115x30

Specifications

  • Brand
    Mean Well
  • Series
    Mean Well SP Series
  • Power Rating
    201.15 Watt
  • Output Voltage
    13.5 Volt
  • Rated Current
    14.9 Ampere
  • Input Voltage
    88V~264V
  • No of Output
    1
  • Standards Met
    BSMI,CB,CE,EAC,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -10°C~60°C
  • Warranty
    3 Year
  • Length
    7.83 in
  • Width
    3.9 in
  • Height
    1.97 in
  • Weight
    1.87 lb

File Downloads

::specification::
