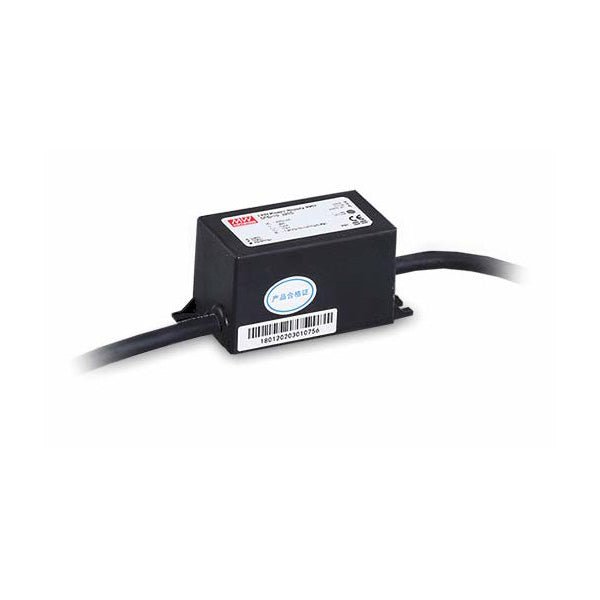

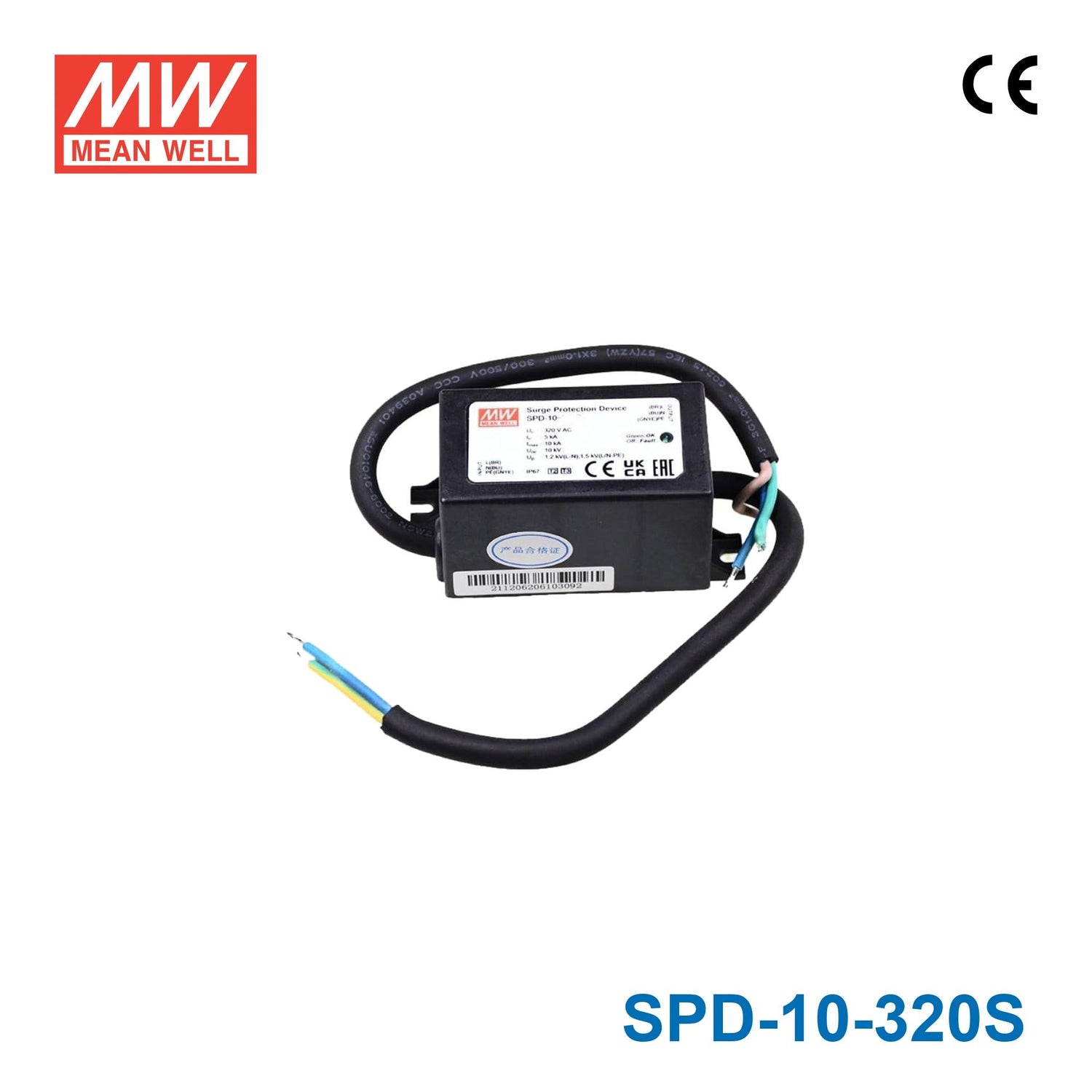

Mean Well SPD-10-320S Surge Protection Device 120~320VAC 10KV
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well SPD-10-320S Surge Protection Device 120~320VAC 10KV
Overview
The SPD-10-320S LED Power Supply SPD is mainly composed of MOV, GDT and flame-retardant shell. It has protective functions of surge, overflowing, thermal(thermal fusing)and flame retardant, used for the power supply protection of LED road lamp.
Features

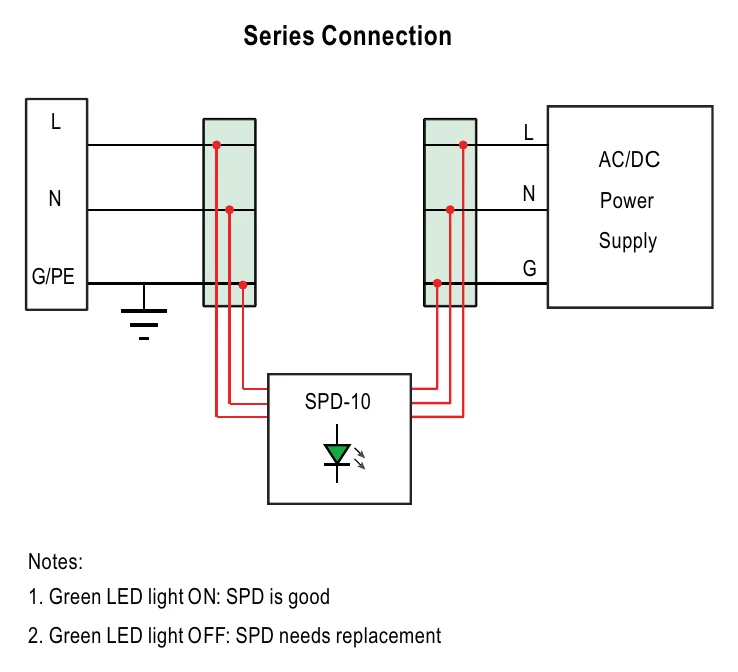

- Series connection style
- Line to Ground & Line to Line protected
- 10kA maximum discharge current(I max ), 8/20μs
- Thermally protected
- Double insulation cable wire
- LED status indicator
- IP67 design for indoor or outdoor installations
- Suitable for LED driver surge protection with classⅠ insulation
- 10KV surge protection capability
Specifications
SPECIFICATION
- MODEL
- SPD-10-320S
- OPERATING VOLTAGE
- 120 ~ 320VAC 50/60Hz
- MCOV/Uc (MAX. CONTINUOUS OPERATING VOLTAGE)Note.1
- 320VAC
- CONTINUOUS CURRENT (max.)
- 5A
- Up (VOLTAGE PROTECTION LEVEL)Note.2
- L-N: 1200V L-G/PE: 1500V N-G/PE: 1500V
- In(NOMINAL DISCHARGE CURRENT)Note.3
- 5kA, 8/20μs
- Imax. (MAX. DISCHARGE CURRENT)Note.4
- 10kA, 8/20μs
- OPERATING TEMPERATURE
- -40 ~ +70℃
- SAFETY STANDARDS
- Compliance to IEC61643-11: 2011, IEC61000-4-5: 2005
- DIMENSION
- 85*37*40 (L*W*H)
- PACKING
- 0.16Kg/Unit ; 10Kg/carton(60pcs)
Certifications & ratings
- Marked features
- Outdoor, Streetlight
Test conditions and notes4
- 1. MCOV/UC: Maximum Continuous Operating Voltage - maximum r.m.s. voltage that could be continuously applied to the SPD.
- 2. UP : IEC 61643-11 Voltage protection level; the highest value of residual voltage measurements during the application of impulses of 8/20μs nominal discharge current(In); a rounding voltage value of maximum measurement.
- 3. Nominal Discharge Current In (A): The nominal discharge current is a measure of the SPDs endurance capability; 15 impulses of discharge current uses the 8/20μs current waveform.
- 4. Maximum Discharge Current Imax (A): The maximum discharge current is a measure of the SPDs maximum capability; single impulse of discharge current uses the 8/20μs current waveform. All Devices pass maximum discharge current with possible, safe opening of thermal disconnect.

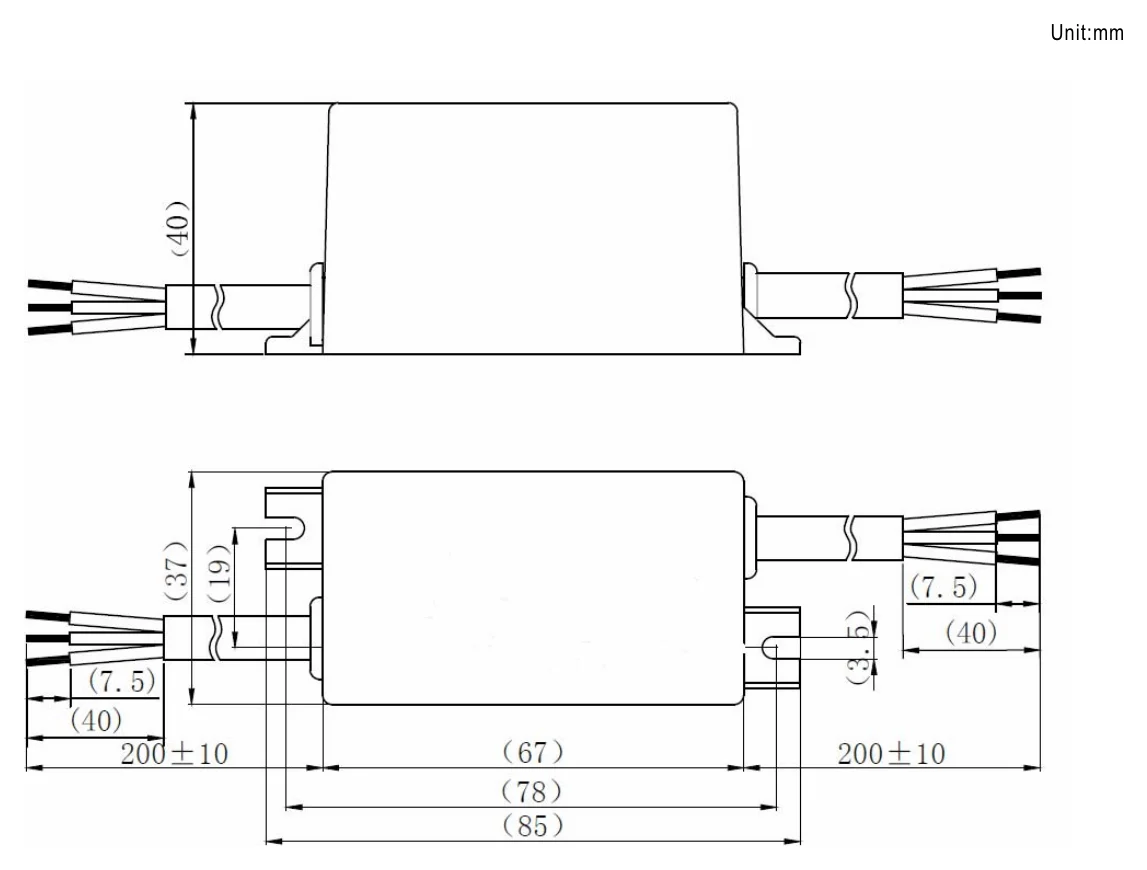

Technical drawings
Typical applications
- Outdoor and commercial LED Lighting
- Roadway lighting
- Traffic lighting
- Digital signage
- Wall wash lighting
- Parking garage/lot lighting
- Flood lighting
- Tunnel lighting
- Street lighting
Downloads
Datasheet1
Certificates3
Catalogues1
FAQ
What is the Mean Well SPD-10-320S used for?
The SPD-10-320S is a surge protection device designed for LED driver surge protection. It is intended to help protect against surge events up to 10kV and supports both line-to-ground and line-to-line protection.
Is the SPD-10-320S compatible with LED driver systems?
Yes. Mean Well specifies this model as suitable for LED driver surge protection with class I insulation. Its 120~320VAC rating and 320VAC MCOV make it a fit for AC-side surge protection applications within that range.
What are the key electrical protection ratings of the SPD-10-320S?
This model provides 10kV surge protection capability and has a maximum discharge current of 10kA based on an 8/20 microsecond waveform. It is rated for 120~320VAC operation, with a listed MCOV of 320VAC.
Can the SPD-10-320S be used in outdoor or demanding environments?
Yes. The SPD-10-320S has an IP67 design, so it is suitable for indoor or outdoor installations where environmental protection matters. It is also rated for operation from -40°C to +70°C.
How can I tell if the SPD-10-320S needs servicing?
This model includes an LED status indicator for visual status checking. Mean Well states the indicator is illuminated during normal operation and off when the unit needs servicing.
Is the SPD-10-320S a power supply or a protection accessory?
The SPD-10-320S is a protection accessory, not a power supply. Its role is surge protection for connected equipment, especially LED driver applications, rather than supplying output power itself.
