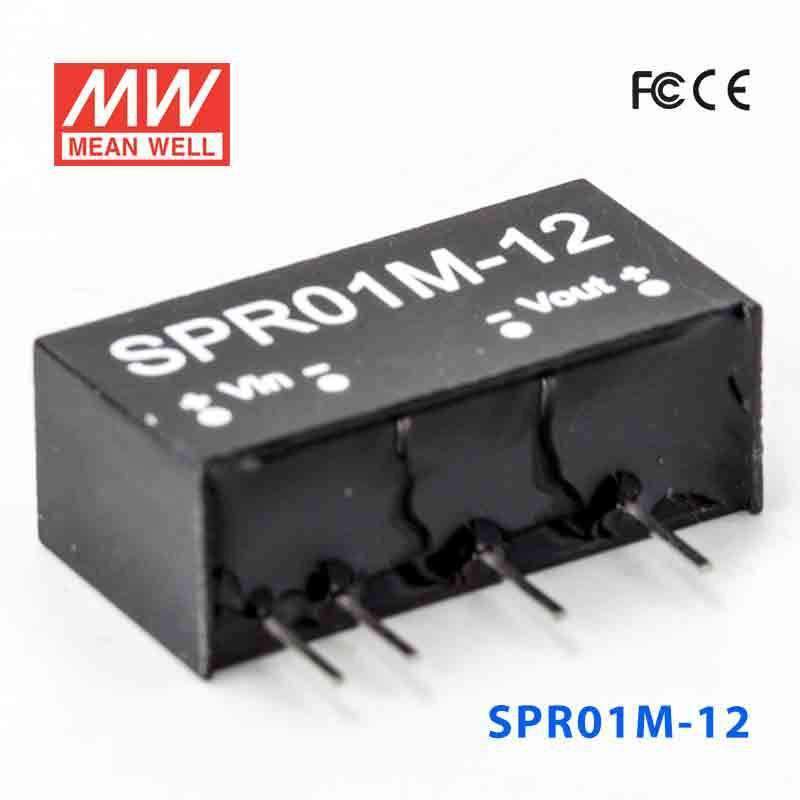

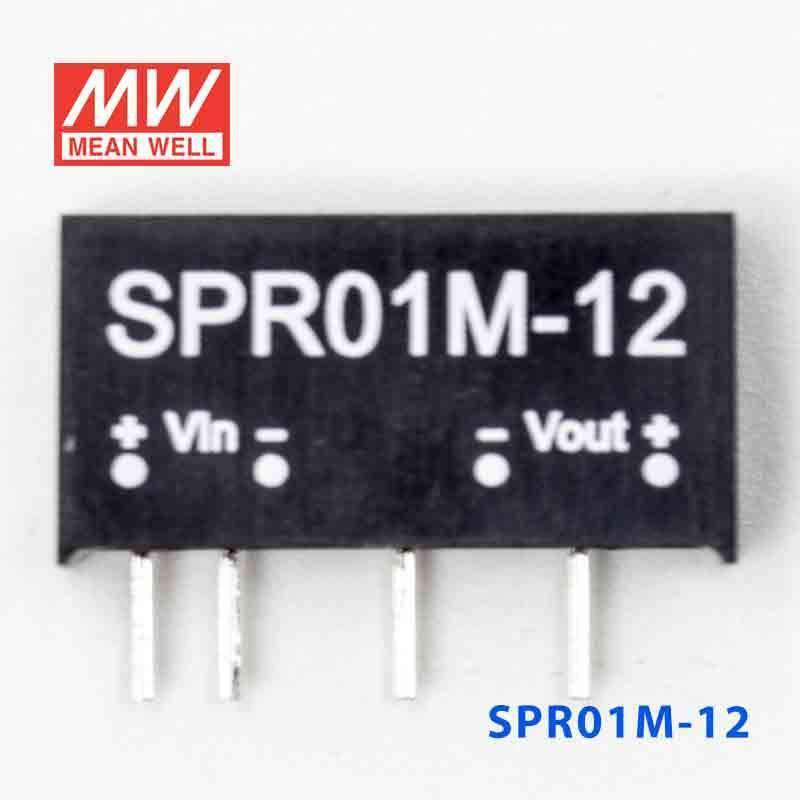

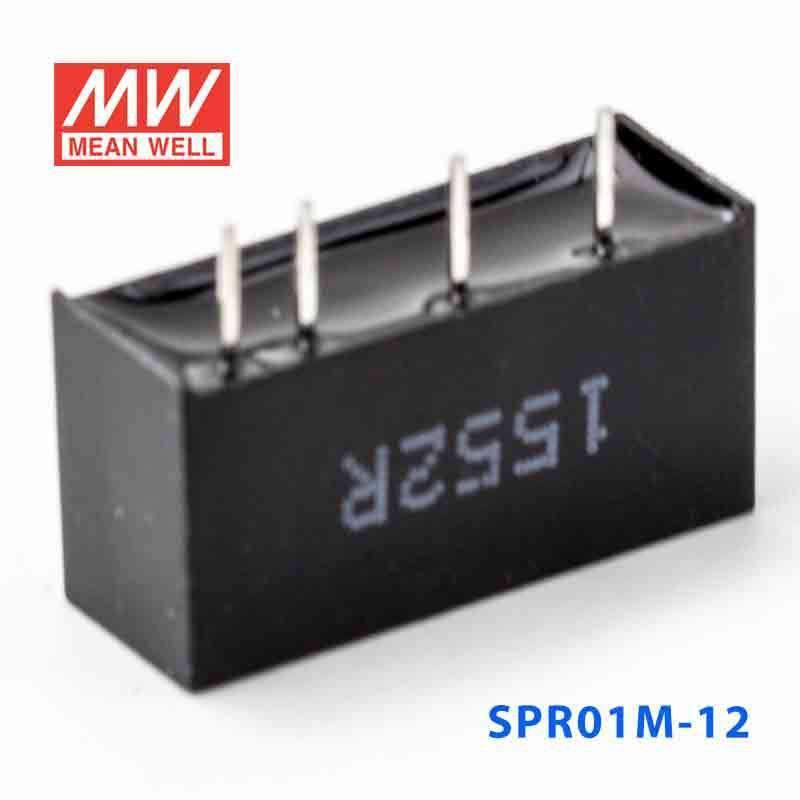

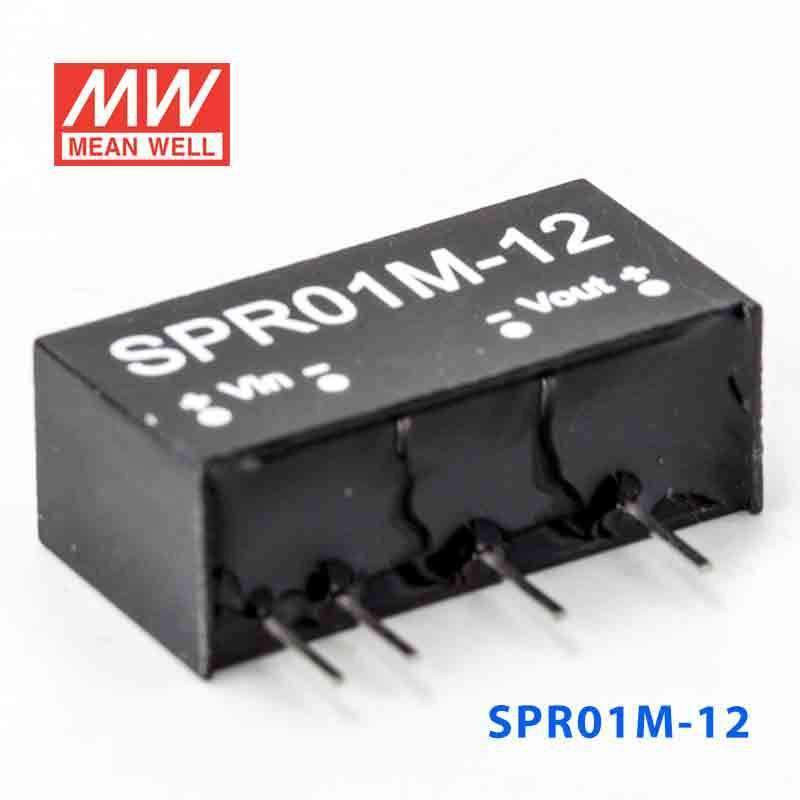

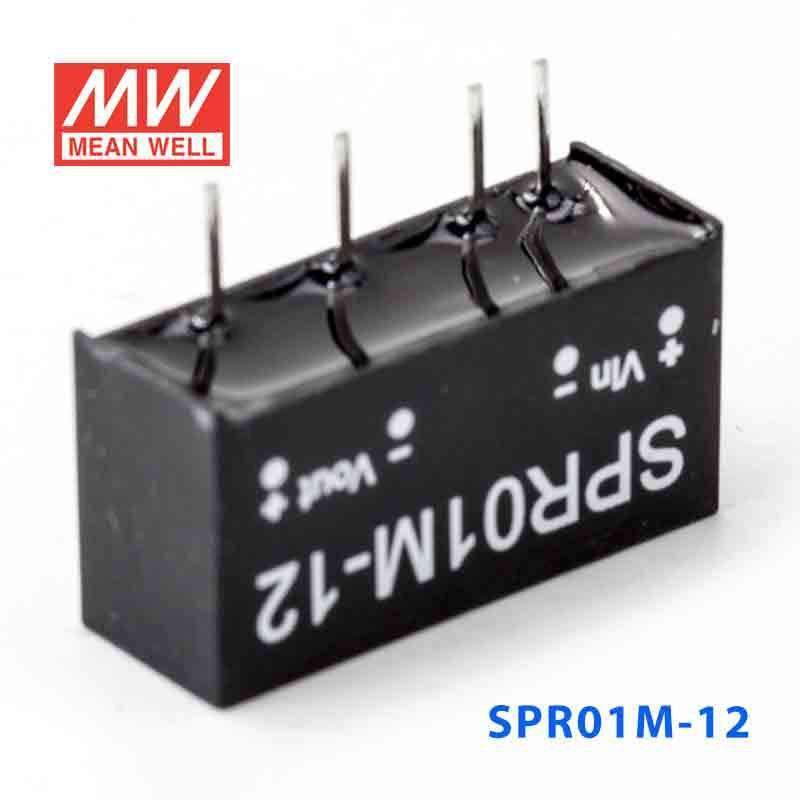

Mean Well SPR01M-12 DC-DC Converter - 1W - 10.8~13.2V in 12V out

$1.82 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

  • 1000VDC I/O isolation
  • Internal SMD technology
  • Built-in EMI filter
  • Cooling by free air convection
  • Non-conductive plastic case
  • Single in line package
  • 100% burn-in test
  • Low cost / High reliability
  • Approvals: FCC / CE
  • 2 years warranty

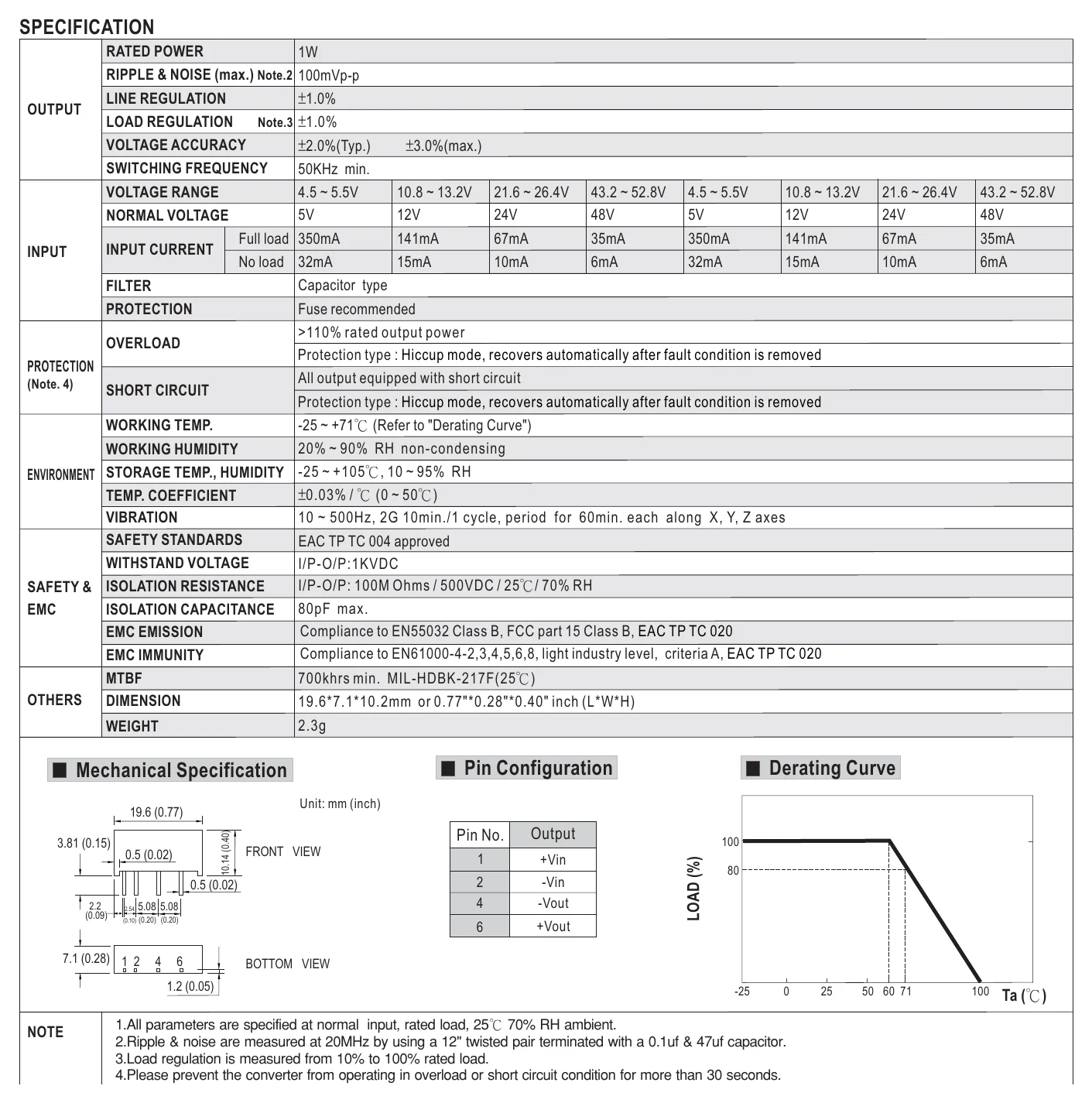

Specifications

  • Brand
    Mean Well
  • Series
    SPR Series
  • Power Rating
    1 Watt
  • Output Voltage
    12 Volt
  • Rated Current
    0.08 Ampere
  • Input Voltage
    10.8V~13.2V
  • No of Output
    1
  • Dimming Control
    None
  • Standards Met
    CE,EMC,FCC
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -25°C~71°C
  • Warranty
    2 Year
  • Length
    0.77 in
  • Width
    0.4 in
  • Height
    0.28 in
  • Weight
    0.01 lb

File Downloads

::specification::
