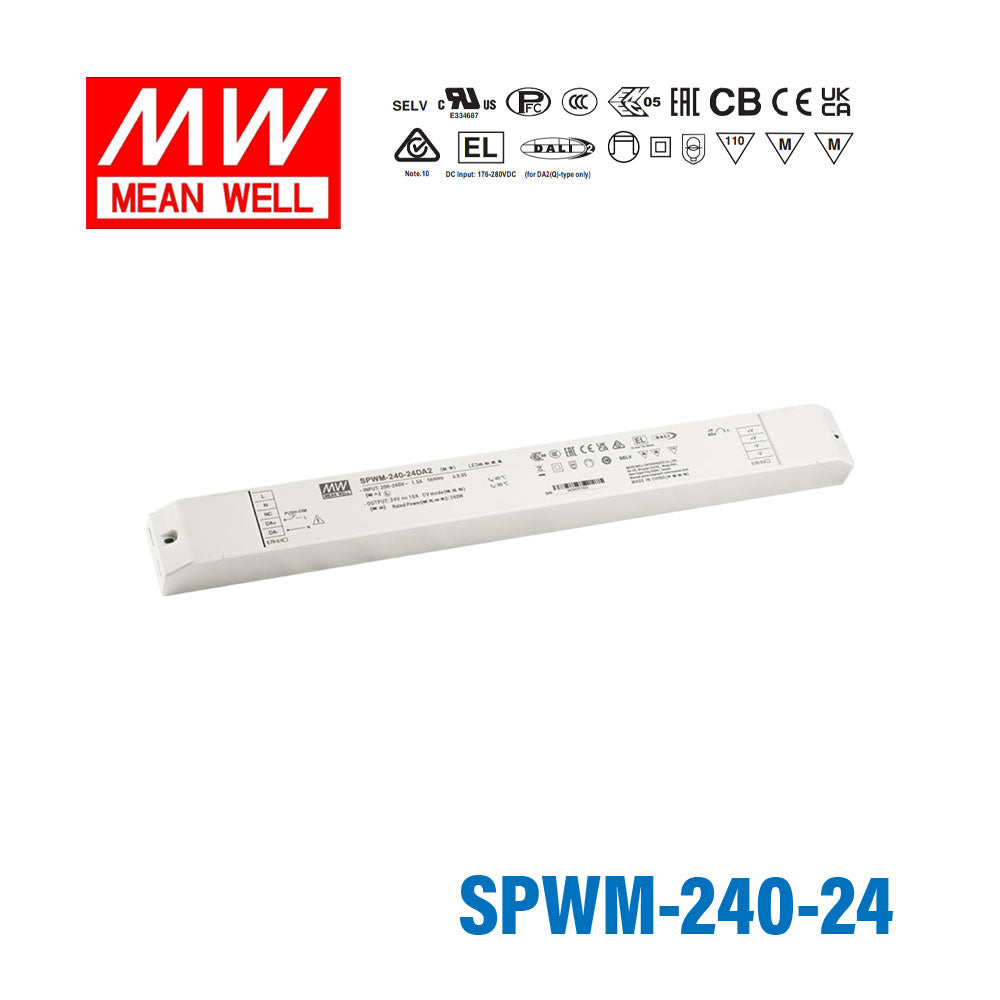

MEAN WELL SPWM-240-24 240W 24V CV LED Driver

The SPWM-240-24 is a 240W constant voltage LED driver built for high-power 24V LED strip lighting applications. It is intended for projects where stable brightness and colour consistency matter, especially in commercial and other B2B lighting environments.

This model is rated for 24V DC output, 10A rated current, and 240W total power. Those specs make it suitable for larger 24V constant voltage LED loads that need a higher power driver.

The SPWM-240-24 supports 0-10V dimming, 10V PWM dimming, and resistance-based dimming control. That gives buyers flexibility when matching the driver to compatible lighting control systems already used on a project.

The SPWM-240-24 is a constant voltage model, so it is intended for 24V constant voltage LED lighting systems rather than constant current LED modules. Buyers choosing between the two should match the driver type to the electrical requirements of the lighting product.

This model is specified for temperatures from -20°C to 90°C and uses a fanless free-air convection design. That combination can be useful where silent operation and reduced moving-part maintenance are priorities.

The SPWM-240-24 operates from a wide 180-305VAC input range and includes active power factor correction. It achieves efficiency up to 94% and is described as offering flicker-free performance compliant with CE ErP requirements.

This model includes a 5-year warranty period. For B2B buyers, that can be an important factor when comparing lifecycle value and support expectations across LED driver options.
