Over 15 years experience of providing support of MEAN WELL Power Supplies

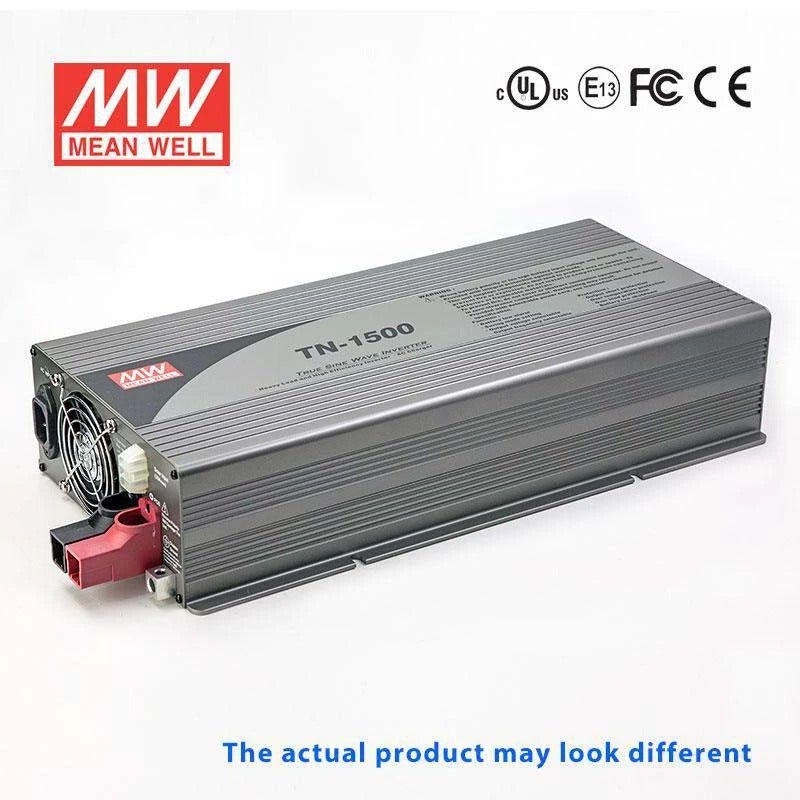

Description
Description
Features
True sine wave output (THD<3%) |
High surge power up to 3000W |
High efficiency up to 91% |
Standby saving mode can be selectable |
Front panel indicator for operation status |
Thermostatically controlled cooling fan |
Power ON-OFF switch |
Protections: Short circuit / Overload / Over voltage |
Built-in solar / AC charger |
Computer-based monitoring software (Note.7) |
3 years warranty |
General Specification
AC output voltage range | 100/110/115/120VAC;200/220/230/240VAC adjustable via front panel or monitoring software |
AC output waveform | True sine wave,THD<3.0% |
Overload temperature | Shut down o/p voltage, re-power on to recover,by internal RTH3 detect on heatsink of power transistor |
Overload | Shut down o/p voltage, re-power on to recover |
Withstand voltage | Bat I/P - AC I/P:3.0KVAC Bat.I/P - AC O/P:3.0KVAC AC O/P - FG:1.5KVAC |
Working temperature | 0~+60°C (refer to output derating curve ) |
Safety standards | EN60950-1 approved |
EMC standards | EN55022 class B, 72/ 245/ CEE, 95/ 54/ CE, E-Mark, EN61000-4-2,3,4,5,6,8,11 |
Dimension (LxWxH) | 420x220x88mm |
Packing | 2pcs / 15.7kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesTN Series
-
Power Rating1500 Watt
-
Output Voltage230 Volt
-
Input Voltage42V~60V
-
No of Output1
-
Standards MetCB,CE,cUL,E13,EAC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature0°C~40°C
-
Warranty3 Year
-
Length16.54 in
-
Width8.66 in
-
Height3.46 in
-
Weight15.1 lb
File Downloads
File Downloads
::specification::
