Mean Well TP-100A PFC Switching Power Supply 10A
$90.81 USD
Unit price /
Unavailable
Overview
TP-100A is the 5V 12V -5V output model of this series: rated current 10A 4A 0.6A, typical efficiency 75%.
Features
- Universal AC input / Full range
- Built-in active PFC function, PF>0.94
- Protections: Short circuit / Overload / Over voltage
- Free air cooling convection
- Fixed switching frequency at 100KHz
- 3 years warranty
Specifications
TP-100ASpecifications from the official datasheet (2021-09-15 edition)Download datasheet PDF
OUTPUT
- OUTPUT NUMBER
- CH1 CH2 CH3
- DC VOLTAGE
- 5V 12V -5V
- RATED CURRENT
- 10A 4A 0.6A
- CURRENT RANGE
- 3 ~ 15A 0.4 ~ 5A 0 ~ 1A
- RATED POWER (max.)
- 101W
- RIPPLE & NOISE (max.)Note.2
- 100mVp-p 120mVp-p 100mVp-p
- VOLTAGE ADJ. RANGE
- CH1: 4.75 ~ 5.5V
- VOLTAGE TOLERANCENote.3
- ±3.0% ±7.0% ±6.0%
- LINE REGULATION
- ±1.0% ±1.0% ±1.0%
- LOAD REGULATION
- ±3.0% ±6.0% ±4.0%
- SETUP, RISE TIME
- 800ms, 60ms/230VAC 2200ms, 60ms/115VAC at full load
- HOLD UP TIME (Typ.)
- 24ms/230VAC 24ms/115VAC at full load
INPUT
- VOLTAGE RANGENote.5
- 90 ~ 264VAC 127 ~ 370VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR (Typ.)
- PF>0.94/230VAC PF>0.98/115VAC at full load
- EFFICIENCY (Typ.)
- 75%
- AC CURRENT (Typ.)
- 1.5A/115VAC 0.75A/230VAC
- INRUSH CURRENT (Typ.)
- COLD START ≦50A/230V
- LEAKAGE CURRENT
- <3.5mA / 240VAC
PROTECTION
- OVERLOAD
- 105 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- CH1:5.75 ~ 6.75V on +5V Protection type : Shut down o/p voltage, re-power on to recover
- OVER TEMPERATURE(OPTION)
- Shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENT
- WORKING TEMP.

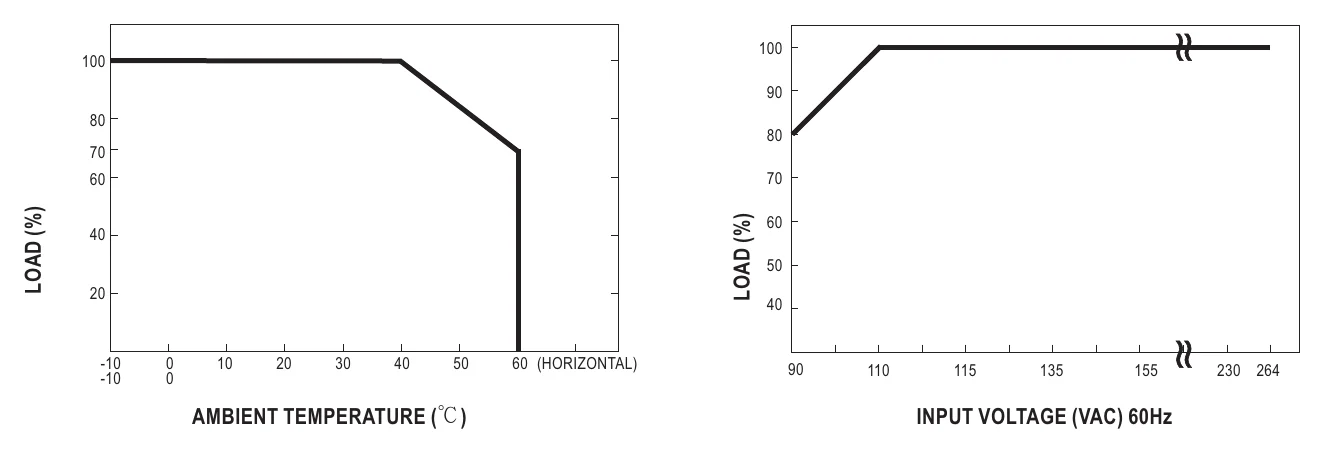

- -10 ~ +60℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -20 ~ +85℃ , 10 ~ 95% RH non-condensing
- TEMP. COEFFICIENT
- ± 0.03%/℃ (0 ~ 50℃ )
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY & EMC (Note 4)
- SAFETY STANDARDS
- UL60950-1, EAC TP TC 004 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC 1min.
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to EN55032 (CISPR32) Class B, EN61000-3-2,-3, EAC TP TC 020
- EMC IMMUNITY
- Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, criteria A, EAC TP TC 020
OTHERS
- MTBF
- 170.1K hrs min. MIL-HDBK-217F (25℃ )
- DIMENSION
- 199*99*50mm (L*W*H)
- PACKING
- 0.83Kg; 20pcs/17.6Kg/1.21CUFT
Test conditions and notes6
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com)
- 5. Derating may be needed under low input voltages. Please check the derating curve for more details.
- 6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

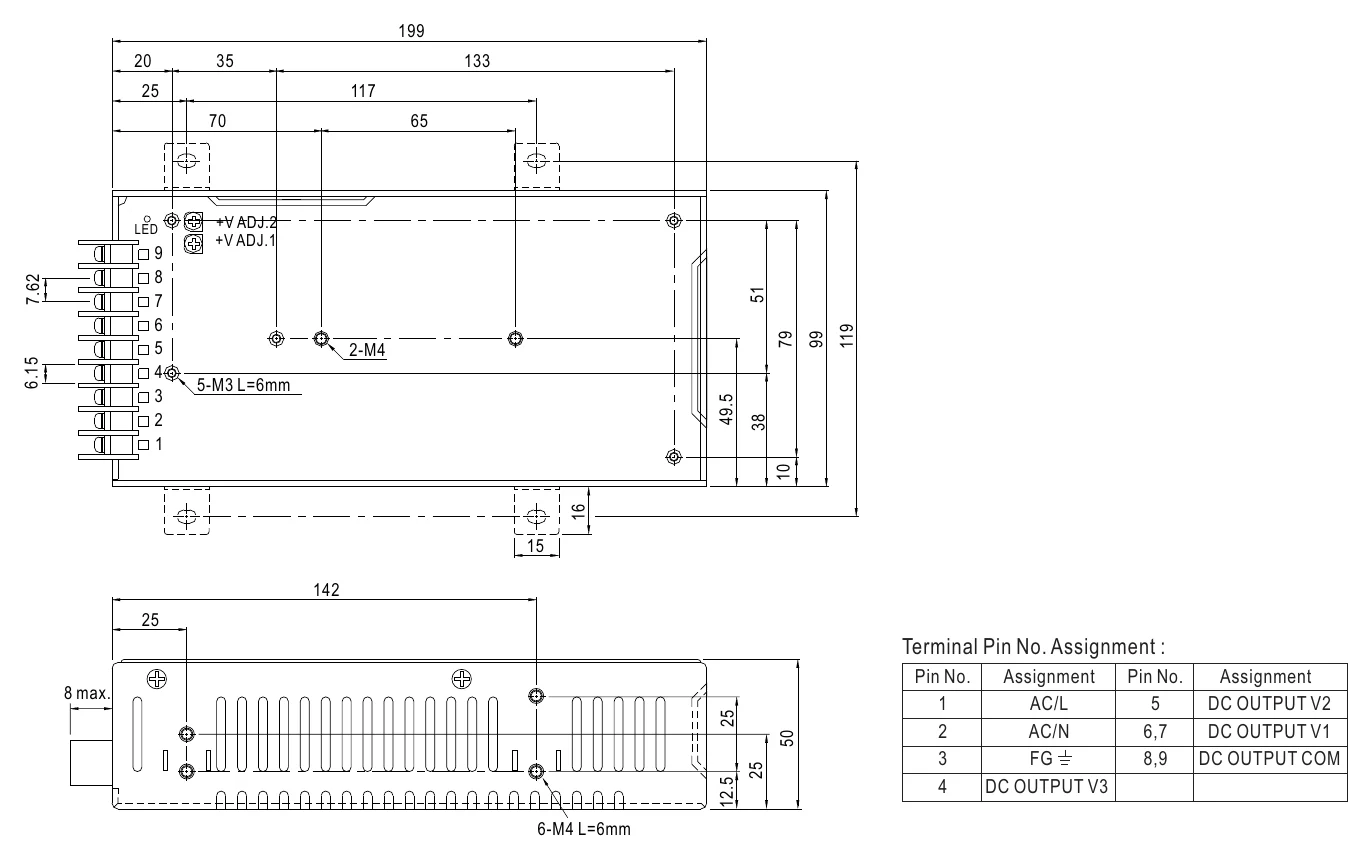

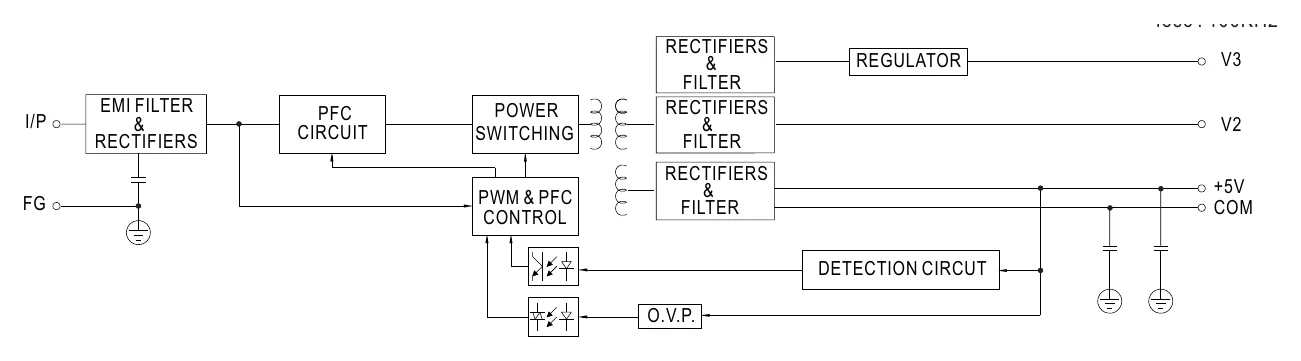

Technical drawings
