Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

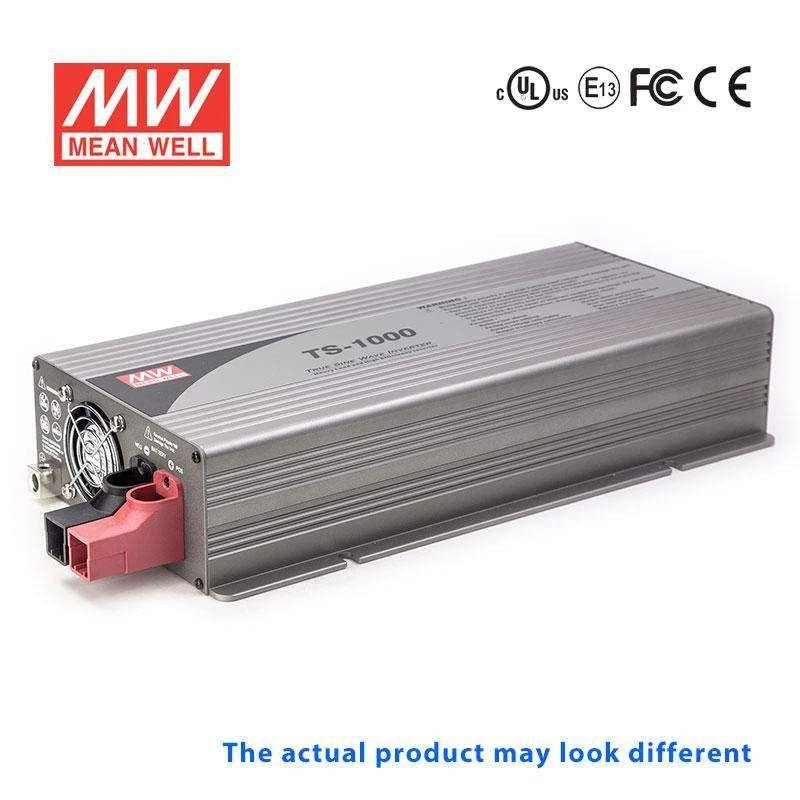

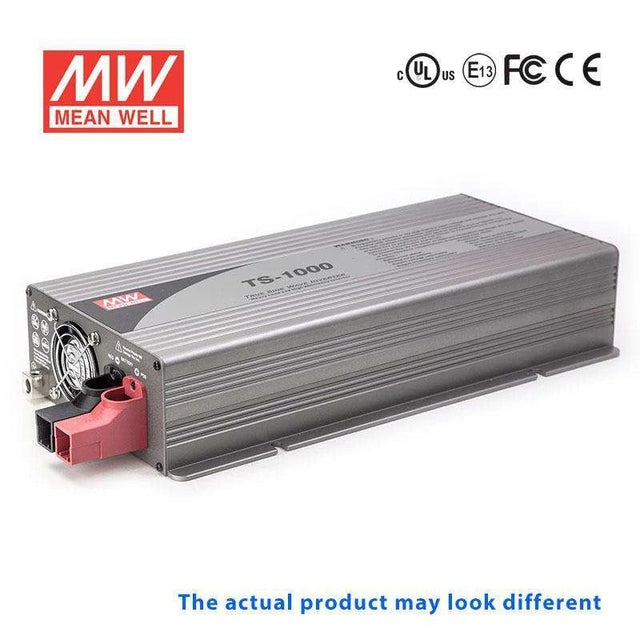

Mean Well TS-1000-112A True Sine Wave 1000W 110V 100A - DC-AC Power...
$355.54 USD
Unit price /
Unavailable
Description
Description
Features
| True sine wave output (THD<3%) |
| High surge power up to 3000W |
| High efficiency up to 91% |
| Built-in remote ON-OFF control |
| Thermostatically controlled cooling fan |
| Protections: Short circuit / Overload / Over voltage |
| Application : Home appliance, power tools, office and portable equipment, vehicle and yacht ....etc. |
| Support RS-232 communication (communication cable order No.: RJ11-RS232, sold separately) Note. 10 |
| 3 years warranty |
General Specification
| AC output voltage range | 100/110/115/120VAC;200/220/230/240VAC adjustable via setting button on front panel |
| AC output waveform | True sine wave,THD<3.0% |
| Overload temperature | Shut down o/p voltage, re-power on to recover,by internal RTH1 detect power transistor |
| Overload | 105 ~ 115% load for 180 sec., 115% ~ 125% load for 10 sec |
| Withstand voltage | Bat I/P - AC O/P:3.0KVAC AC O/P - FG:1.5KVAC |
| Working temperature | 0 ~ +40℃ @ 100% load ; 60℃ @ 50% load |
| Safety standards | EN60950-1 approved |
| EMC standards | EN55022 class A, 72/ 245/ CEE, 95/ 54/ CE, E-Mark, EN61000-4-2,3,8 |
| Dimension (LxWxH) | 420 x 220 x 88mm |
| Packing | 6.81Kg; 2pcs/14.6Kg/1.61CUFT |
Specifications
Specifications
-
BrandMean Well
-
SeriesTS Series
-
Power Rating1000 Watt
-
Output Voltage110 Volt
-
Input Voltage10.5V~15V
-
No of Output1
-
Standards MetCB,CE,cUL,E13,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature0°C~40°C
-
Warranty3 Year
-
Length13.58 in
-
Width7.24 in
-
Height2.76 in
-
Weight9.48 lb
File Downloads
File Downloads
::specification::
