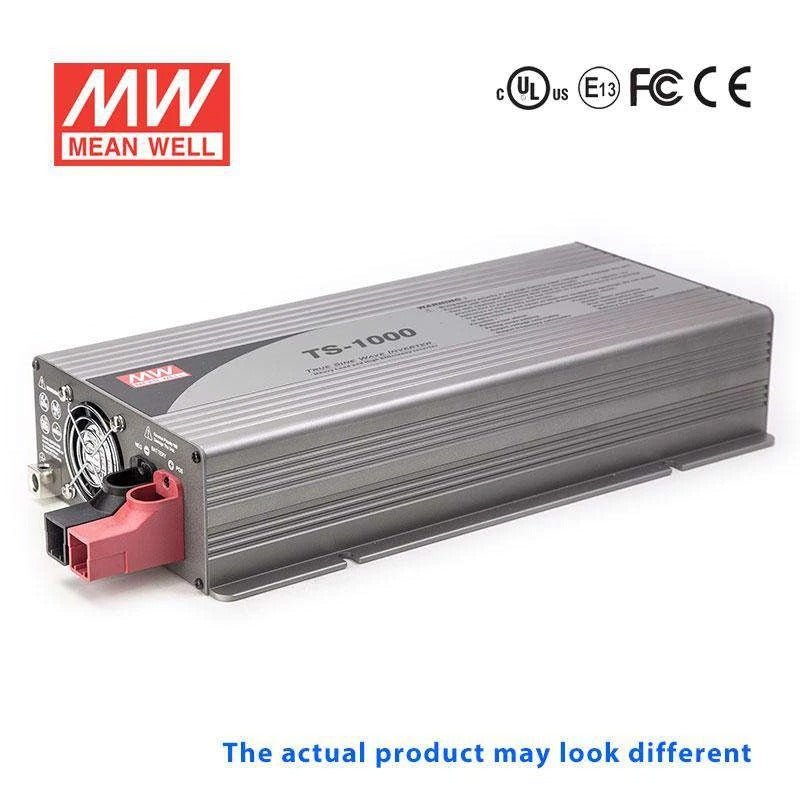

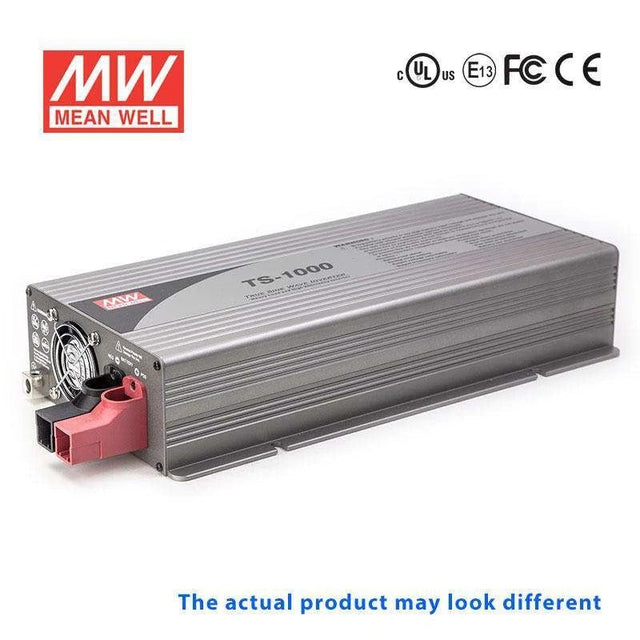

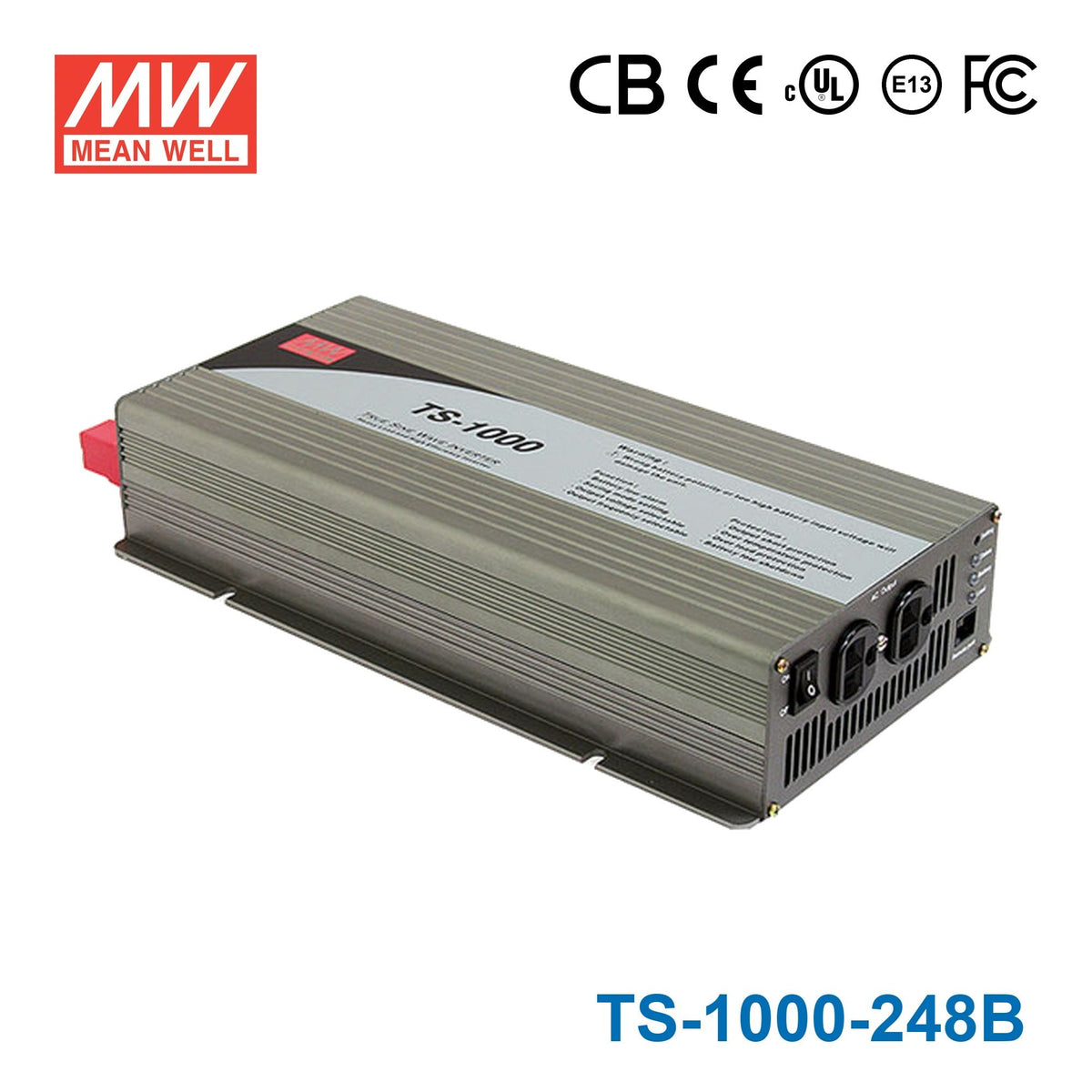

Mean Well TS-1000-248B True Sine Wave 1000W 230V 25A - DC-AC Power ...
The TS-1000 is a 1000W Mean Well power converter.
Key Features
- ✓ Protections: Over temperature / Reverse polarity
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesTS Series
-
Power Rating1000 Watt
-
Output Voltage230 Volt
-
Input Voltage42V~60V
-
No of Output1
-
Standards MetCB,CE,cUL,E13,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature0°C~40°C
-
Warranty3 Year
-
Length13.58 in
-
Width7.24 in
-
Height2.76 in
-
Weight9.48 lb
::specification::
Frequently Asked Questions
What is the Mean Well TS-1000-248B used for?
The TS-1000-248B is a 1000W DC-AC power inverter designed for converting DC power into 230V AC true sine wave output. It is intended for applications such as home appliances, power tools, office equipment, portable equipment, vehicles, and yachts where clean AC power is required.
Does the TS-1000-248B provide true sine wave output?
Yes, this model provides true sine wave output with total harmonic distortion below 3%. That makes it suitable for equipment that benefits from clean, stable AC power compared with less refined waveforms.
What output power can this inverter deliver?
The TS-1000-248B is rated for 1000W continuous output power. It also features high surge power up to 3000W, which can help support equipment with higher startup demand.
What output voltage does the TS-1000-248B provide?
This inverter provides 230V AC output. It is intended for applications and equipment that require 230V AC power rather than lower-voltage AC output models.
What protection features are included in the TS-1000-248B?
The TS-1000-248B includes built-in protection for short circuit, overload, and over voltage conditions. These protections help safeguard both the inverter and connected equipment during abnormal operating conditions.
Can this inverter be used in mobile or marine environments?
Yes, Mean Well lists vehicle and yacht applications among the intended uses for the TS-1000-248B. Its true sine wave output also makes it a practical choice for portable and mobile equipment that needs cleaner AC power.
What operating temperature range is specified for the TS-1000-248B?
The specified operating temperature range for this model is 0°C to 40°C. Buyers should make sure the installation environment stays within that range for normal operation.
Does the TS-1000-248B support remote control or communication?
Yes, this model includes built-in remote ON-OFF control capability. It also supports RS-232 communication, with the communication cable listed separately as RJ11-RS232.
What warranty is offered for the TS-1000-248B?
The TS-1000-248B comes with a 3-year warranty. This provides longer-term coverage for buyers using the inverter in commercial, industrial, or mobile power applications.
