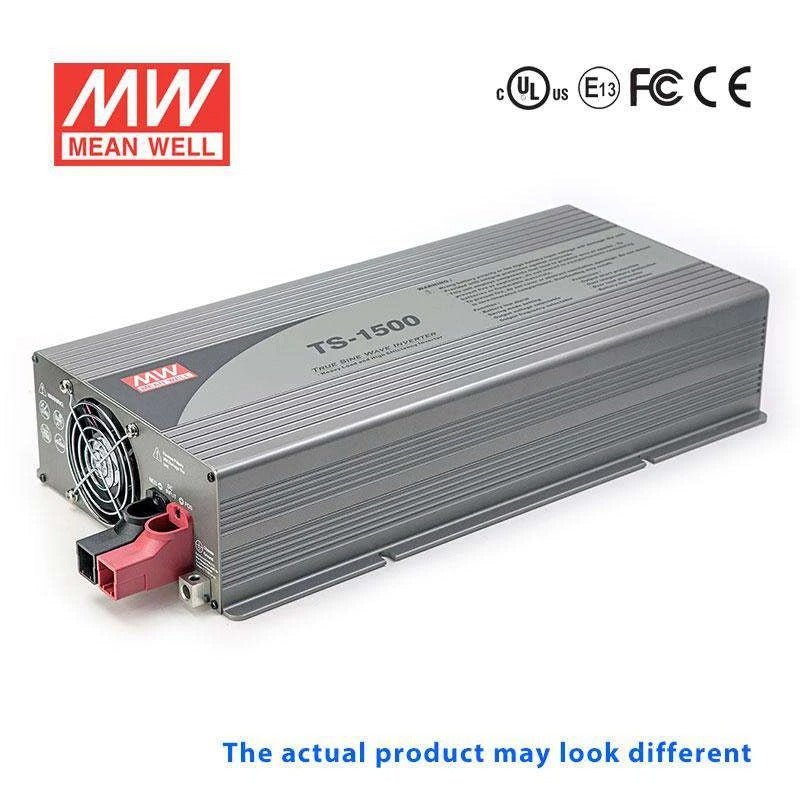

Mean Well TS-1500-212B True Sine Wave 1500W 230V 150A - DC-AC Power Inverter

high surge power up to 200%, suitable for motor related applications
$484.15 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

True sine wave output (THD<3%)
High surge power up to 3000W
High efficiency up to 91%
Built-in remote ON-OFF control
Thermostatically controlled cooling fan
Protections: Short circuit / Overload / Over voltage
Application: Home appliance, power tools, office and portable equipment, vehicle, and yacht ....etc.
Support RS-232 communication (communication cable order No.: RJ11-RS232, sold separately) Note. 10
3 years warranty

General Specification

AC output voltage range 100/110/115/120VAC;200/220/230/240VAC adjustable via setting button on the front panel
AC output waveform True sine wave, THD<3.0%
Overload temperature Shut down o/p voltage, re-power on to recover, by internal RTH1 detect power transistor
Overload 105 ~ 115% load for 180 sec., 115% ~ 125% load for 10 sec
Withstand voltage Bat I/P - AC O/P:3.0KVAC AC O/P - FG:1.5KVAC
Working temperature 0 ~ +40℃ @ 100% load ; 60℃ @ 50% load
Safety standards EN60950-1 approved
EMC standards EN55022 class A, 72/ 245/ CEE, 95/ 54/ CE, E-Mark, EN61000-4-2,3,8
Dimension (LxWxH) 420 x 220 x 88mm
Packing 6.81Kg; 2pcs/14.6Kg/1.61CUFT

Specifications

  • Brand
    Mean Well
  • Series
    TS Series
  • Power Rating
    1500 Watt
  • Output Voltage
    230 Volt
  • Input Voltage
    10.5V~15V
  • No of Output
    1
  • Standards Met
    CB,CE,cUL,E13,FCC
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    0°C~40°C
  • Warranty
    3 Year
  • Length
    16.54 in
  • Width
    8.66 in
  • Height
    3.46 in
  • Weight
    15.01 lb
