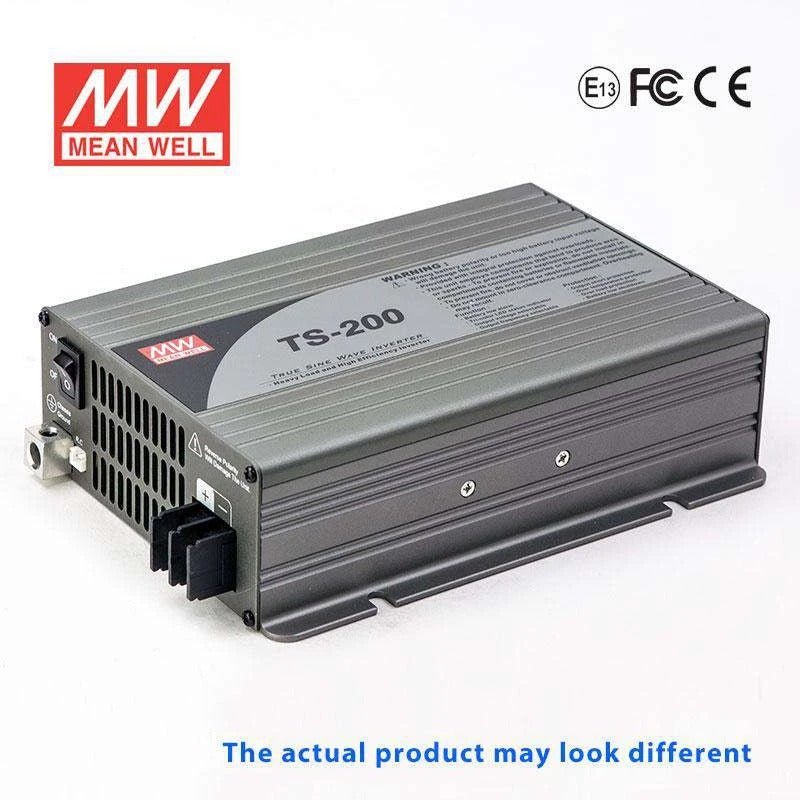

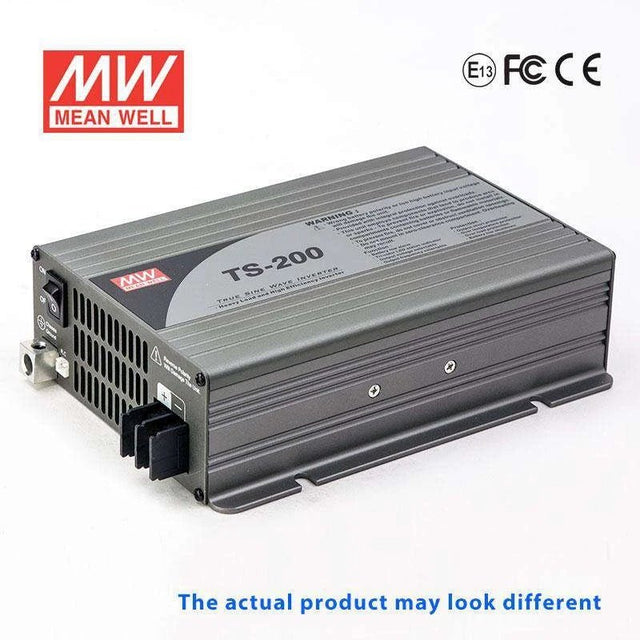

Mean Well TS-200-148A True Sine Wave 200W 110V 5A - DC-AC Power Inverter

$159.33 USD
Shipping calculated at checkout.

Your order will be processed within 24 hours

Description

Features

True sine wave output (THD<3%)
High surge power up to 400W
High efficiency up to 88%
Fanless design, cooling by free air convention
Built-in remote ON-OFF control
Front panel indicator for operation status
Power ON-OFF switch
Protections: Short circuit / Overload / Over voltage
3 years warranty

General Specification

AC output voltage range 100/110/115/120VAC;200/220/230/240VAC adjustable via setting button on front panel
AC output waveform True sine wave,THD<3.0%
Overload temperature Shut down o/p voltage, re-power on to recover,by internal RTH1 detect power transistor
Overload Shut down o/p voltage, re-power on to recover
Withstand voltage Bat.I/P - AC O/P:3.0KVAC AC O/P - FG:1.5KVAC
Working temperature -10~+60°C (refer to output derating curve )
Safety standards EN60950-1 approved
EMC standards EN55022 class A, 72/ 245/ CEE, 95/ 54/ CE, E-Mark, EN61000-4-2,3,8
Dimension (LxWxH) 205x158x59mm
Packing 6pcs / 10.8kg

Specifications

  • Brand
    Mean Well
  • Series
    TS Series
  • Power Rating
    200 Watt
  • Output Voltage
    110 Volt
  • Input Voltage
    42V~60V
  • No of Output
    1
  • Standards Met
    CB,CE,E13,FCC
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -10°C~35°C
  • Warranty
    3 Year
  • Length
    8.07 in
  • Width
    6.22 in
  • Height
    2.32 in
  • Weight
    3.59 lb
