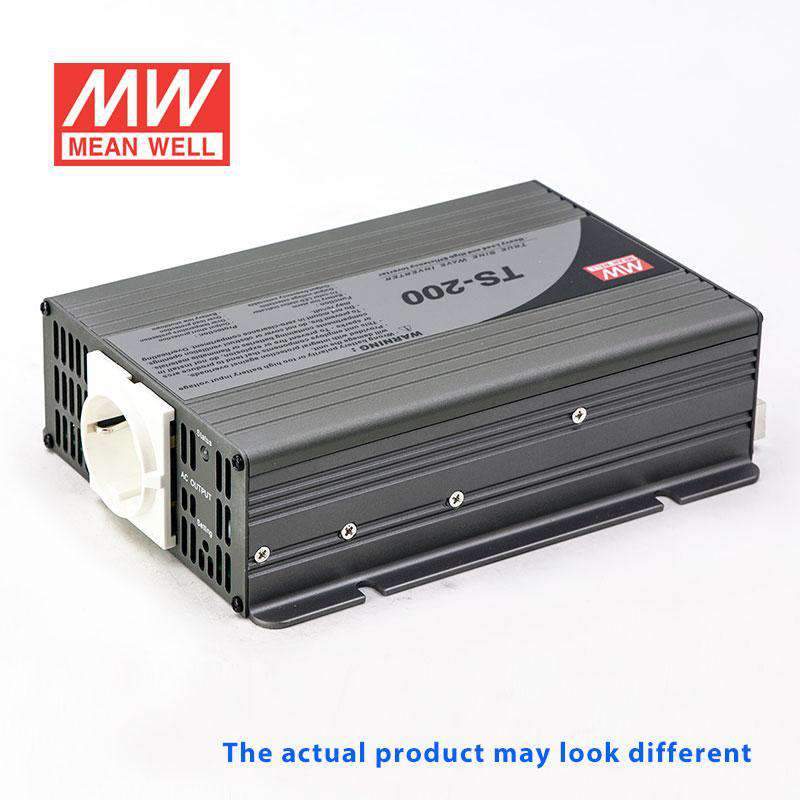

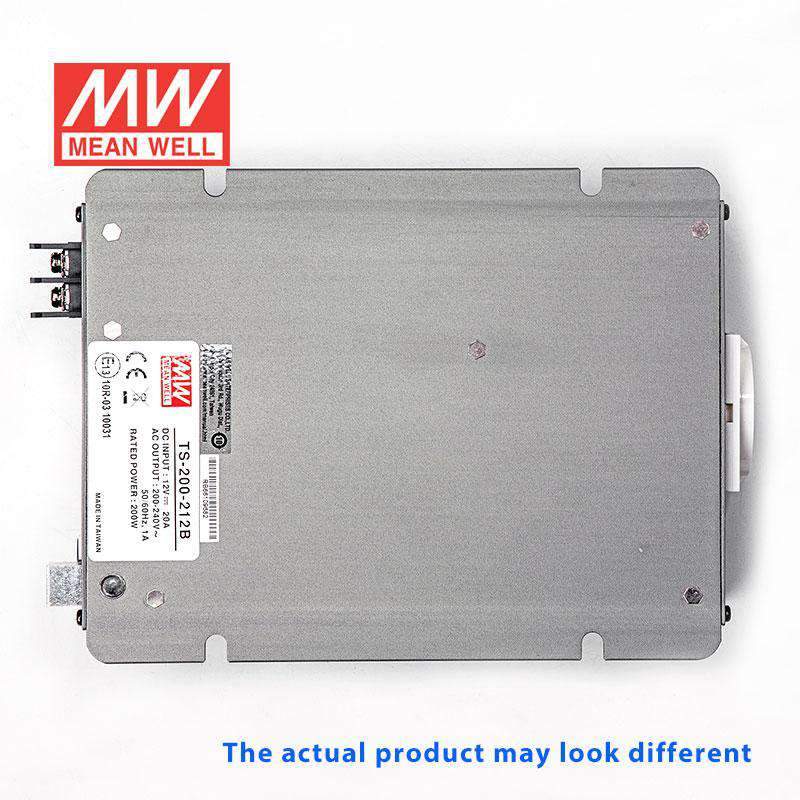

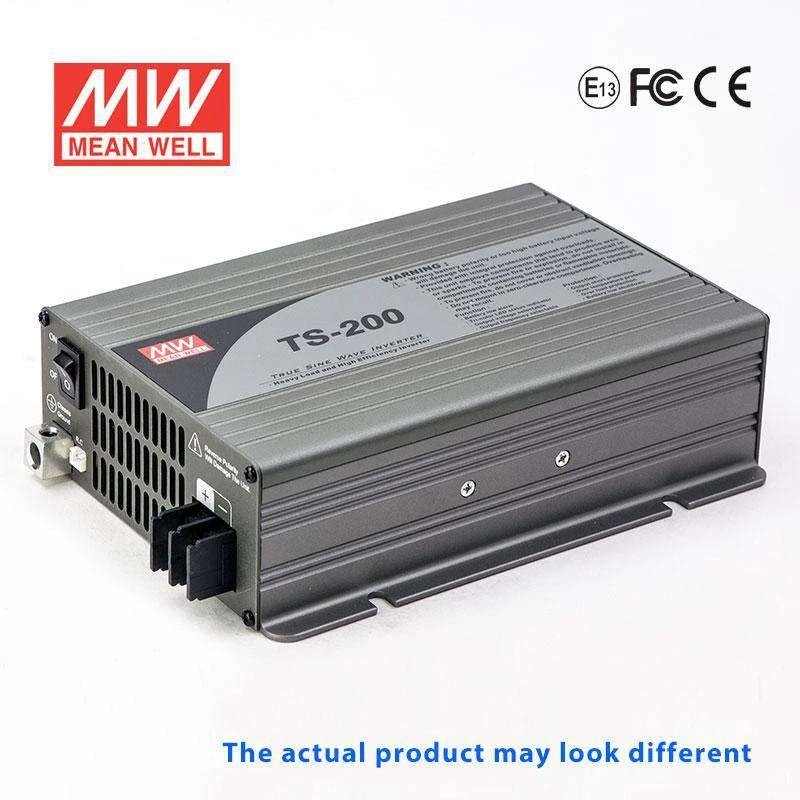

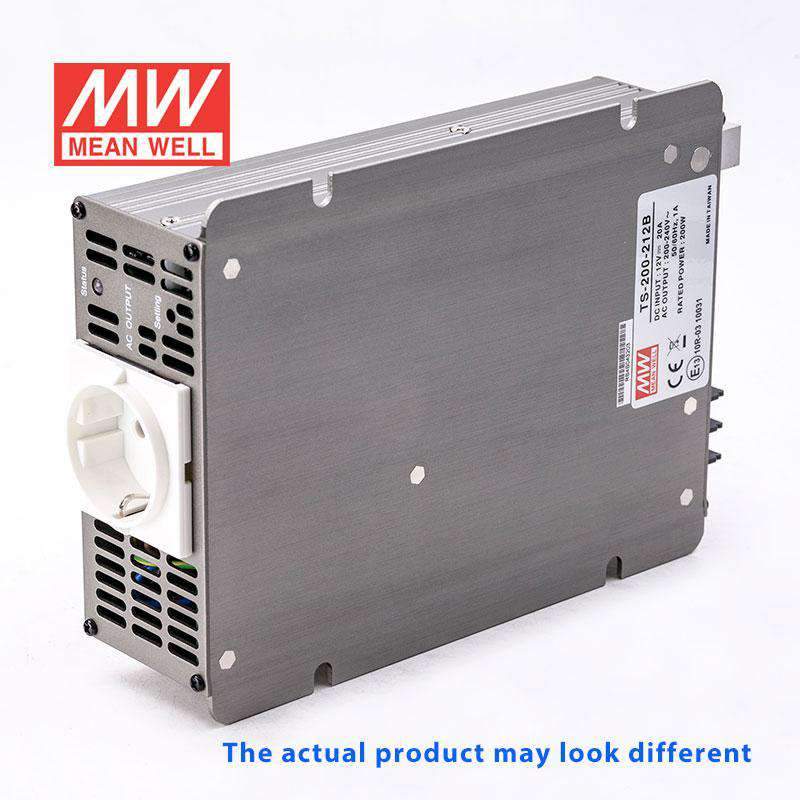

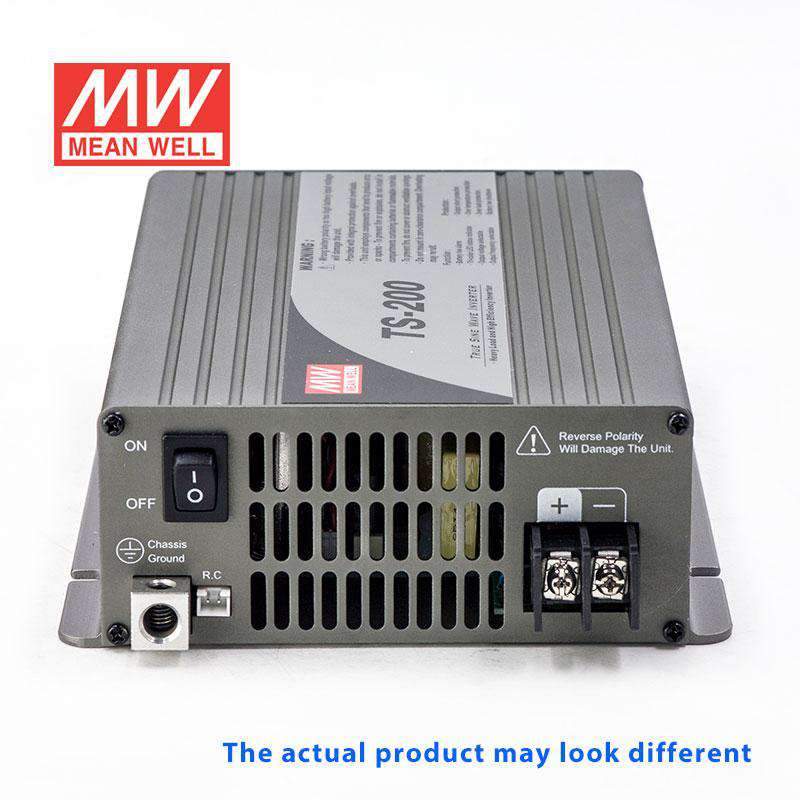

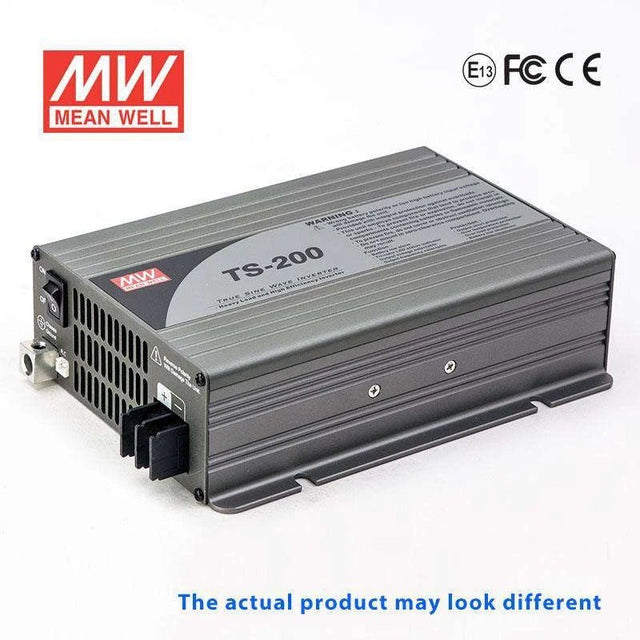

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
Mean Well TS-200-212C True Sine Wave 200W 230V 20A - DC-AC Power In...
$159.08 USD
Unit price /
Unavailable
Description
Description
Features
| True sine wave output (THD<3%) |
| High surge power up to 400W |
| High efficiency up to 88% |
| Fanless design, cooling by free air convention |
| Built-in remote ON-OFF control |
| Front panel indicator for operation status |
| Power ON-OFF switch |
| Protections: Short circuit / Overload / Over voltage |
| 3 years warranty |
General Specification
| AC output voltage range | 100/110/115/120VAC;200/220/230/240VAC adjustable via setting button on front panel |
| AC output waveform | True sine wave,THD<3.0% |
| Overload temperature | Shut down o/p voltage, re-power on to recover,by internal RTH1 detect power transistor |
| Overload | Shut down o/p voltage, re-power on to recover |
| Withstand voltage | Bat.I/P - AC O/P:3.0KVAC AC O/P - FG:1.5KVAC |
| Working temperature | -10~+60°C (refer to output derating curve ) |
| Safety standards | EN60950-1 approved |
| EMC standards | EN55022 class A, 72/ 245/ CEE, 95/ 54/ CE, E-Mark, EN61000-4-2,3,8 |
| Dimension (LxWxH) | 205x158x59mm |
| Packing | 6pcs / 10.8kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesTS Series
-
Power Rating200 Watt
-
Output Voltage230 Volt
-
Input Voltage10.5V~15V
-
No of Output1
-
Standards MetCB,CE,E13,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~35°C
-
Warranty3 Year
-
Length8.07 in
-
Width6.22 in
-
Height2.32 in
-
Weight3.59 lb
