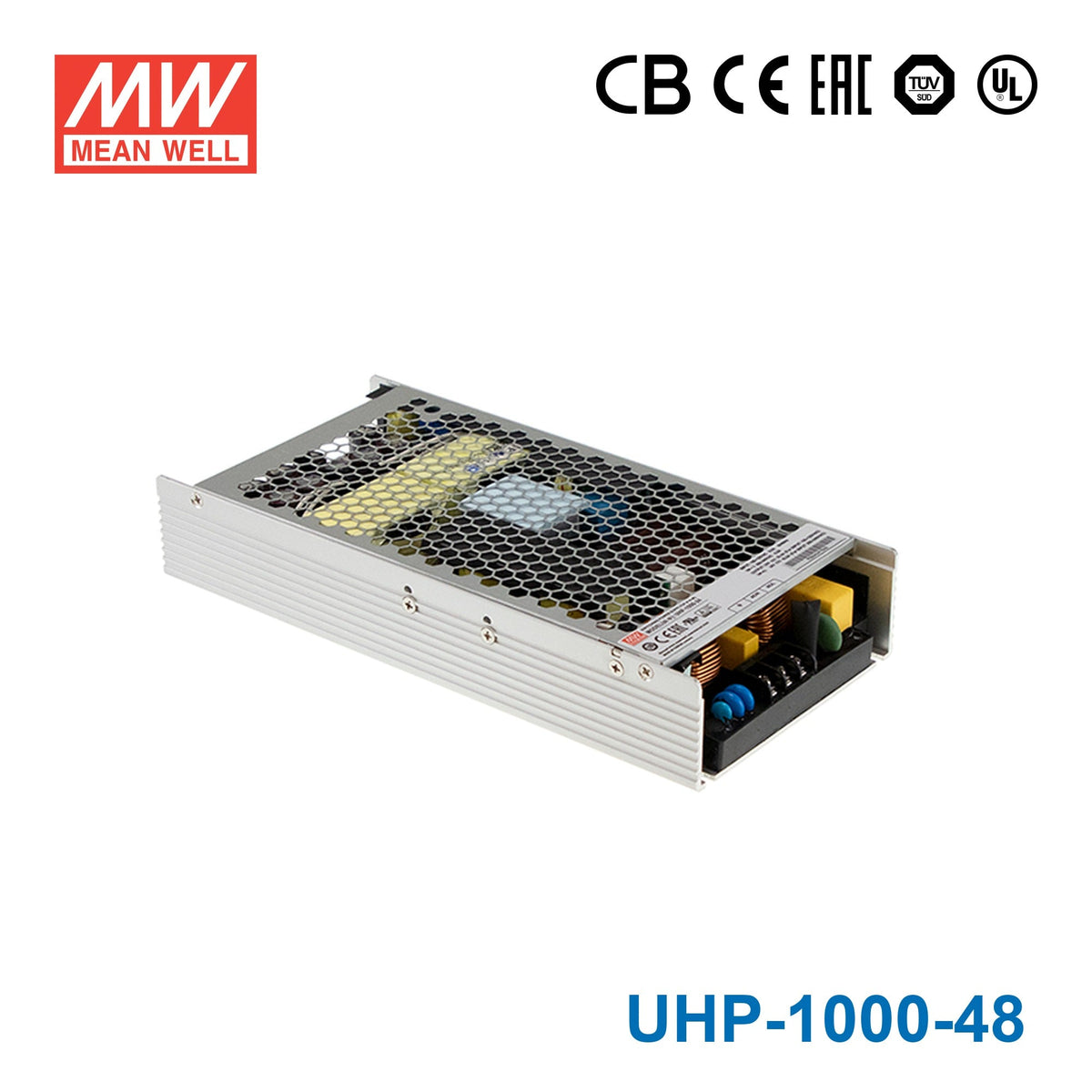

Mean Well UHP-1000-48 Power Supply 1008W 48V

slim and low profile, fanless design
$290.70 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

Slim and Low profile (41mm)
Fanless and conduction-cooled design
Withstand 300VAC surge input for 5 seconds
Built-in active PFC function
-30~+70℃ working temperature
Output voltage and constant current level programmable
Protections: Short circuit / Overload / Over voltage / Over temperature
Built-in remote ON-OFF control
DC OK active signal
Operating altitude up to 5000 meter
LED indicator for power on
5 years warranty

General Specification

AC input voltage range 90~264VAC 250~370VDC
AC inrush current Cold start :20A/115VAC 40A/230VAC
Overload protection 105~120% rated output power Protection type : Constant current limiting with delay shutdown after 3 seconds, re-power on to recover
Short circuit protection Protection type :Constant current limiting with delay shutdown after 3 seconds, re-power on to recover
Over voltage protection 12V:14.5~16V, 24V:29~33V, 36V:43.5~49V, 48V:59~66V Protection type :Shut down O/P voltage, re-power on to recover
Over temperature protection Protection type :Shut down O/P voltage, recovers automatically after temperature goes down
Setup, rise, hold up time 1000ms, 50ms/230VAC/115VAC at full load; 12ms/115VAC,230VAC
Withstand voltage I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.25KVAC
Working temperature -30~+70℃ (Refer to “Derating Curve)
Safety standards UL62368-1,TUV EN62368-1,EAC TP TC 004 approved; design refer to EN61558-1, EN60335-1
EMC standards EN55032 (CISPR32) Class B ;EN61000-3-2, 3;EN61000-4-2, 3, 4, 6, 8, 11, EN61000-6-2
Dimension (LxWxH) 240×115×41mm
Packing 1.74Kg;8pcs/14.9Kg

Specifications

  • Brand
    Mean Well
  • Series
    UHP Series
  • Power Rating
    1008 Watt
  • Output Voltage
    48 Volt
  • Rated Current
    21 Ampere
  • Input Voltage
    90V~264V
  • No of Output
    1
  • Standards Met
    CB,CE,EAC,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -30°C~70°C
  • Warranty
    5 Year
  • Length
    9.45 in
  • Width
    4.53 in
  • Height
    1.61 in
  • Weight
    3.84 lb

File Downloads

::specification::
