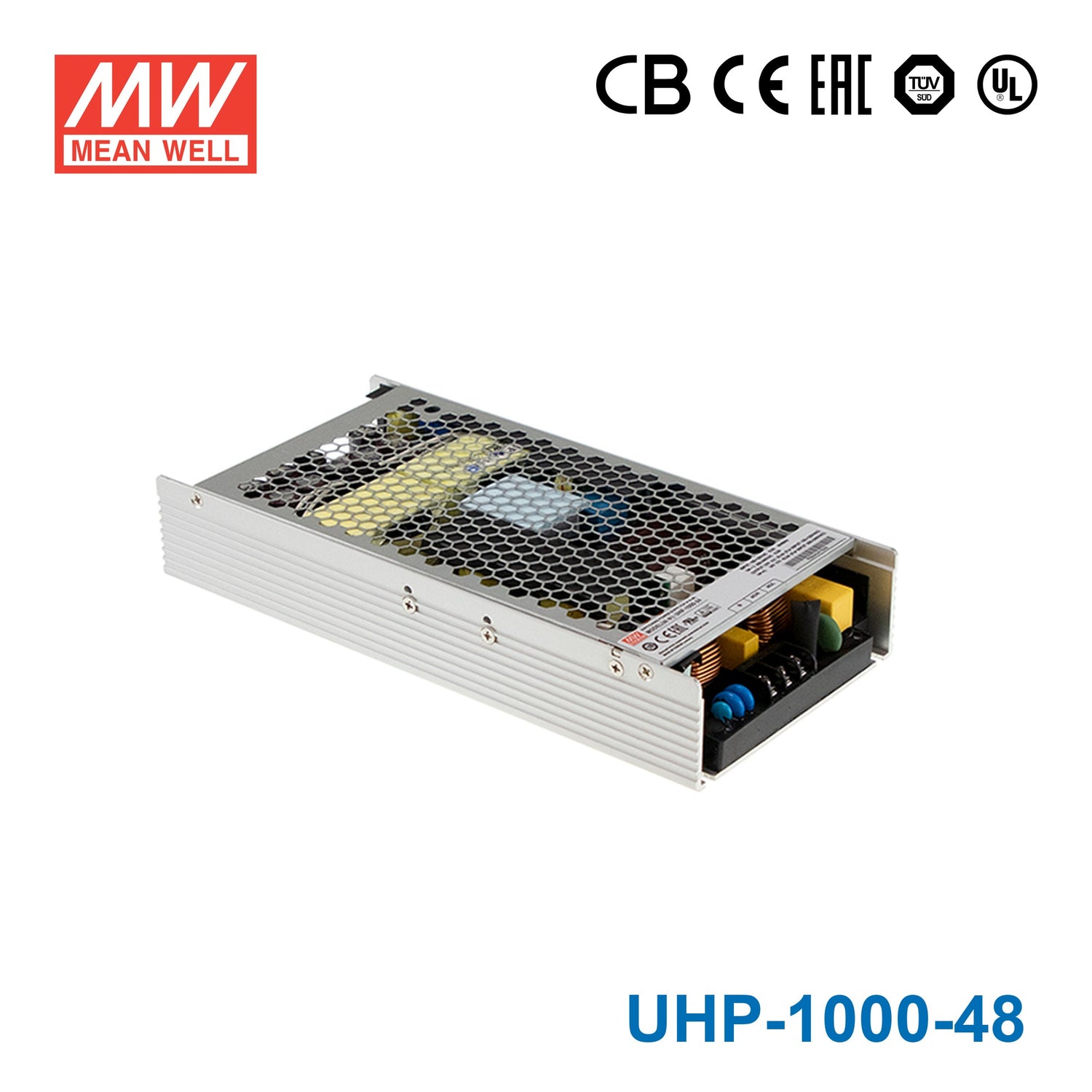

Mean Well UHP-1000-48 Power Supply 1008W 48V
Description
Description
The UHP-1000 is a 1000W Mean Well power converter (input range: 12~14.4V).
Key Features
- ✓ Input voltage range: 12~14.4V
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Remote ON/OFF control
- ✓ Safety approvals: UL62368-1, TUV EN62368-1, EAC TP TC 004
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesUHP Series
-
Power Rating1008 Watt
-
Output Voltage48 Volt
-
Rated Current21 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty5 Year
-
Length9.45 in
-
Width4.53 in
-
Height1.61 in
-
Weight3.84 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the UHP-1000-48 for a 48V industrial automation cabinet?
Yes, this model is a constant voltage 48V power supply rated for 1008W and 21A. Its slim 240.0 × 115.0 × 41.0 mm housing and fanless design make it suited to space-conscious industrial control or automation panels that require 48V DC power.
Is the UHP-1000-48 suitable for embedded systems or test equipment that run on 48V DC?
It can be a fit for embedded platforms or lab equipment that need a 48V constant voltage source and draw within 21A. The fanless design is also useful where lower acoustic noise and a low-profile 41.0 mm form factor matter.
Can this power supply support a 48V DC motor control or robotics application?
It is appropriate for 48V DC systems in robotics or motion-related equipment when the load stays within 1008W and 21A. Because it is a constant voltage unit, it is best matched to equipment designed to accept a regulated 48V DC input.
Is the UHP-1000-48 okay for outdoor or harsh-environment use?
The published specs show an operating temperature range of -30°C to +70°C, so it covers a wide temperature span. No IP rating is listed in the provided specs, which points to use in protected indoor enclosures or other sheltered locations rather than exposed outdoor environments.
How does the UHP-1000-48 compare with other 48V models in the UHP series?
Within the 48V constant voltage UHP range, the listed models are UHP-200-48 at 201.6W and 4.2A, UHP-350-48 at 350.4W and 7.3A, UHP-500-48 at 501.6W and 10.45A, UHP-750-48 at 753.6W and 15.7A, UHP-1000-48 at 1008W and 21A, UHP-1500-48 at 1512W and 31.5A, and UHP-2500-48 at 2500.8W and 52.1A. This places the UHP-1000-48 above the 753.6W class and below the 1512W and 2500.8W options in the same voltage family.
