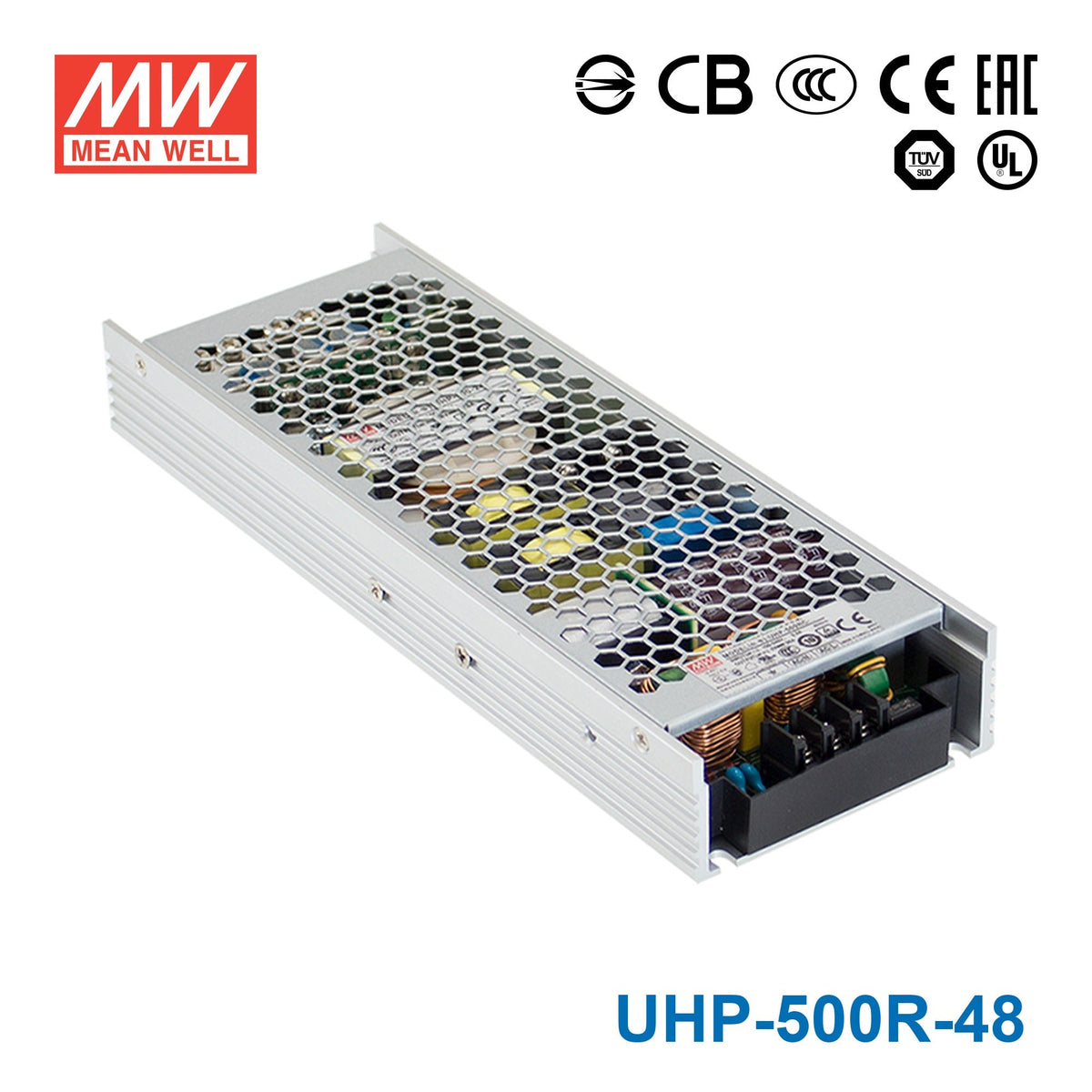

Mean Well UHP-500R-48 Power Supply 501W 48V - Redundant
$119.49 USD
Unit price /
Unavailable
Description
Description
Features
| Slim and Low profile (31mm) |
| Fanless design, 500W convection |
| Withstand 300VAC surge input for 5 seconds |
| Built-in active PFC function |
| 150% peak load capability(100ms) |
| -20~+70℃ working temperature |
| Protections: Short circuit / Overload / Over voltage / Over temperature |
| DC OK active signal and redundant function(option) |
| Operating altitude up to 5000 meter |
| LED indicator for power on |
| 3 years warranty |
General Specification
| AC input voltage range | 90~264VAC 127~370VDC |
| AC inrush current | Cold start :30A/115VAC 60A/230VAC |
| Overload protection | 110~140% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed |
| Over voltage protection | 12V:13.2~15.6V, 15V:16.5~19.5V, 24V:26.4~31.2V, 36V:39.6~46.8V, 48V:52.8~62.4V Protection type :Shut down O/P voltage, re-power on to recover |
| Setup, rise, hold up time | 1000ms, 50ms/230VAC/115VAC at full load; 12ms/115VAC, 230VAC |
| Withstand voltage | I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.25KVAC |
| Working temperature | -20~+70℃ (Refer to “Derating Curve) |
| Safety standards | UL60950-1, TUV EN60950-1, CCC GB4943, EAC TP TC 004,BSMI CNS14336-1 approved, Design refer to EN60335-1, EN61558-1,-2-16 |
| EMC standards | Compliance to EN55032, GB/T9254, Class B, EN61000-3-2,-3, EAC TP TC 020, BSMI CNS13438; Compliance to EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61000-6-2 (EN50082-2), heavy industry level, criterial A,EAC TP TC 020 |
| Dimension (LxWxH) | 232×81×31mm |
| Packing | 0.905Kg;16pcs/15.48Kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesUHP Series
-
Power Rating501.6 Watt
-
Output Voltage48 Volt
-
Rated Current10.45 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length9.13 in
-
Width3.19 in
-
Height1.22 in
-
Weight2 lb
