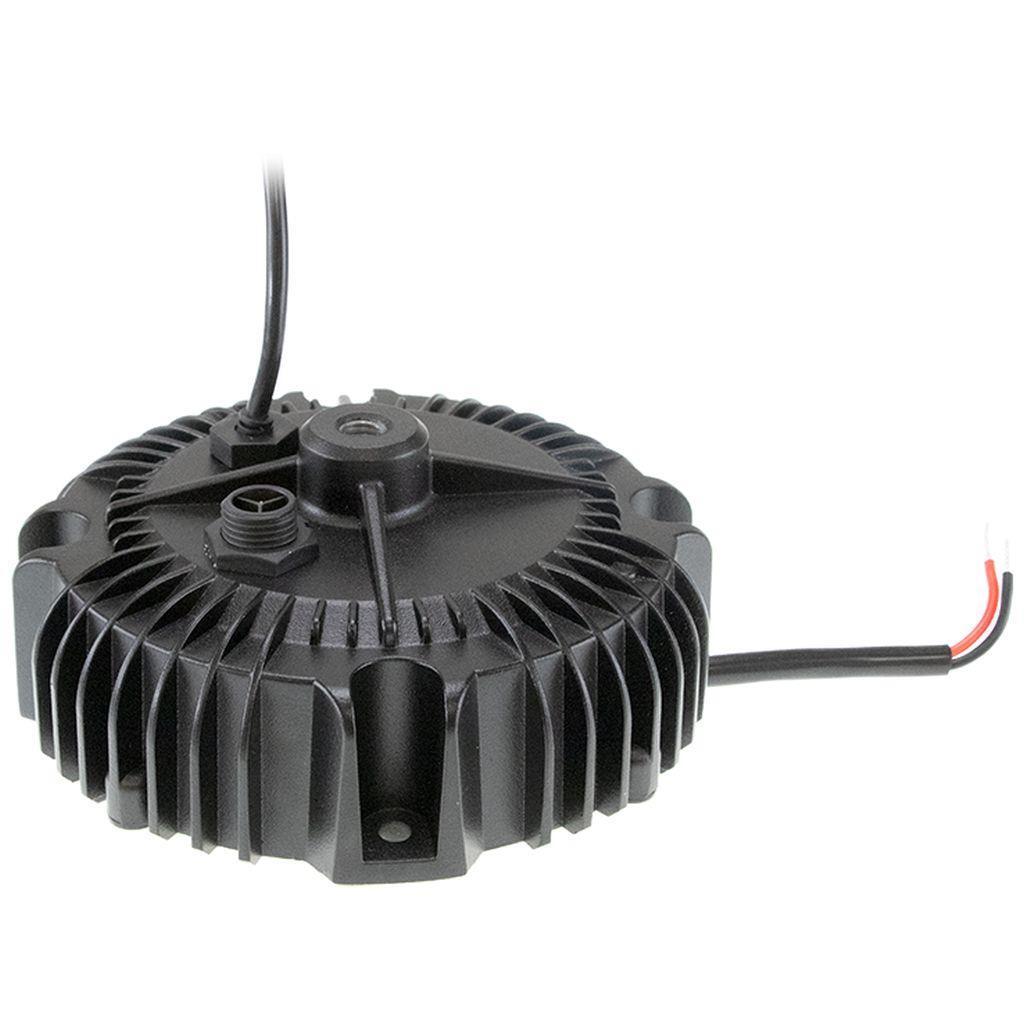

Mean Well XBG-160-A-C Power Supply 160W - Adjustable

Name: Mean Well XBG-160-A-C Power Supply 160W - Adjustable
Brand: Mean Well
SKU: XBG-160-A-C
Price: 82.27 USD
Availability: InStock

100~305VAC wide range input with waterproof connectorliffe time >50000hrs

SKU XBG-160-A-C

$82.27 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Overview

XBG-160-A-C is the model of this series: rated power 159.9W, typical efficiency 93%.

XBG-160 series is a 160W AC/DC LED driver featuring the constant power mode. XBG-160 operates from 90~305VAC and offers with different rated current ranging between 2850mA and 4100mA. Thanks to the high efficiency up to 93%, with the fanless design, the entire series is able to operate for -40℃~+90℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. Moreover the innovative environment-adaptive capability allows this series to reliably light on the LEDs for all kinds of application environments in almost any spots that may install LED luminaires in the world. XBG-160 series comply with the latest version of IEC61347/GB7000.1-2015 and UL8750 international safety regulations. The output and dimming circuit are also completely in accordance with the new regulations with isolation to ensure the safety of both users and luminaire system during installation.

Features

Full power output at 70~100% constant power mode operation
Wide input range 90 ~ 305VAC with active PFC function
Metal housing design with IP67
Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off and Isolation design)
Typical lifetime>50000 hours and 5 years warranty
AC input cable with connector for flexible application

Specifications

XBG-160-A-CSpecifications from the official datasheet (2026-02-09 edition)

OUTPUT

DEFAULT CURRENT: 3300mA
RATED POWER: 159.9W
CONSTANT CURRENT REGION: 34 ~ 56V
FULL POWER CURRENT RANGE: 2850~4100mA
OPEN CIRCUIT VOLTAGE (max.): 60V
CURRENT ADJ. RANGE: 1425~4100mA
CURRENT RIPPLE: 5.0% max. @rated current
CURRENT TOLERANCE: ±5%
SET UP TIME^Note.4: 500ms/230VAC, 2000ms/115VAC

INPUT

VOLTAGE RANGE^Note.2: 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.97 / 115VAC, PF≧0.95 / 230VAC, PF≧0.92 / 277VAC at full load (Please refer to "Power Factor Characteristic" section)
TOTAL HARMONIC DISTORTION: THD< 10% (@ load≧60% at 115VAC/230VAC ,@load≧75% at 277VAC) Please refer to “TOTAL HARMONIC DISTORTION (THD)” section
EFFICIENCY (Typ.): 93%
AC CURRENT (Typ.): 2.0A / 115VAC 0.8A / 230VAC 0.7A / 277VAC
INRUSH CURRENT(Typ.): COLD START 50A(twidth=620μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. NO. of PSUs on 16A CIRCUIT BREAKER: 4 unit(circuit breaker of type B) / 7 units(circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC
NO LOAD / STANDBY POWER CONSUMPTION: No load power consumption<0.5W for A-Type Standby power consumption<0.5W for AB-Type

PROTECTION

OVER CURRENT: 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 61 ~ 78V Shut down output voltage, re-power on to recovery
OVER TEMPERATURE: Shut down output voltage, re-power on to recovery

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +90℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase=+90℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384; IS15885(Part2/Sec13);GB/T19510.1,GB/T19510.213;IP67;EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55015(CISPR15),GB/T 17743 -----
Radiated BS EN/EN55015(CISPR15),GB/T 17743 -----
Harmonic Current BS EN/EN61000-3-2 ,GB17625.1 Class C @load≥50%
Voltage Flicker BS EN/EN61000-3-3 -----; BS EN/EN55024 , BS EN/EN61204-3, BS EN/EN61000-6-2
EMC IMMUNITY: Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact
Radiated BS EN/EN61000-4-3 Level 3
EFT/Burst BS EN/EN61000-4-4 Level 3
Surge BS EN/EN61000-4-5 4KV/Line-Line 6KV/Line-Earth
Conducted BS EN/EN61000-4-6 Level 3
Magnetic Field BS EN/EN61000-4-8 Level 4
Voltage Dips and Interruptions BS EN/EN61000-4-11 >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

Parameter	Standard	Test Level
Conducted	BS EN/EN55015(CISPR15),GB/T 17743	-----
Radiated	BS EN/EN55015(CISPR15),GB/T 17743	-----
Harmonic Current	BS EN/EN61000-3-2 ,GB17625.1	Class C @load≥50%
Voltage Flicker	BS EN/EN61000-3-3	-----; BS EN/EN55024 , BS EN/EN61204-3, BS EN/EN61000-6-2

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact
Radiated	BS EN/EN61000-4-3	Level 3
EFT/Burst	BS EN/EN61000-4-4	Level 3
Surge	BS EN/EN61000-4-5	4KV/Line-Line 6KV/Line-Earth
Conducted	BS EN/EN61000-4-6	Level 3
Magnetic Field	BS EN/EN61000-4-8	Level 4
Voltage Dips and Interruptions	BS EN/EN61000-4-11	>95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

OTHERS

MTBF: 3173.6K hrs min. Telcordia SR-332(Bellcore) ; 282.4K hrs min. MIL-HDBK-217F (25℃)

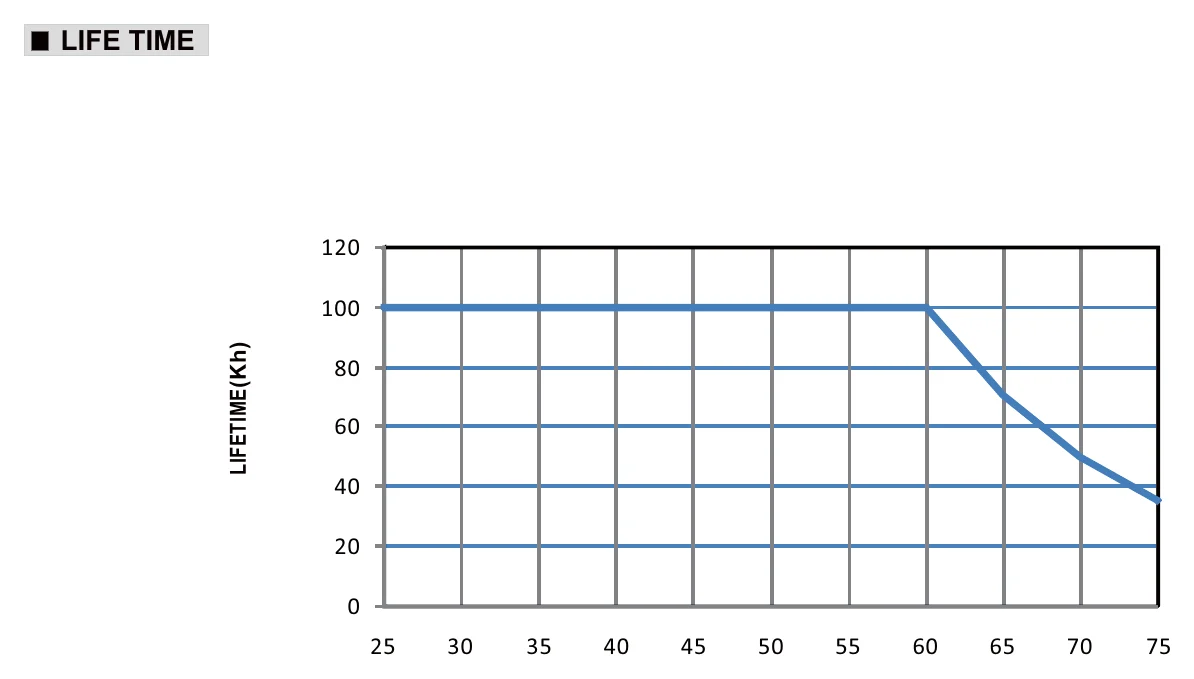

LIFETIME^Note.5: 50000 hrs min.
DIMENSION: φ151.5mm *60mm(D*H)
PACKING: 1.25Kg; 8pcs/11.5Kg/0.93CUFT

Certifications & ratings

Type: HL

Test conditions and notes11

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
3. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
4. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
5. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 70℃ or less.
6. To fulfill requirements of the latest ErP regulation for lighting fixture, this LED drive can only be used behind a switch without permanently connected to the mains.
7. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
9. Products sourced from the Americas regions may not have the PSE/CCC/BIS/KC logo. Please contact your MEAN WELL sales for more information.
10. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
11. For A/AB type need to consider build-in using or filling the Io adjusting hole with the potting compound to comply with Type HL application.

Technical drawings

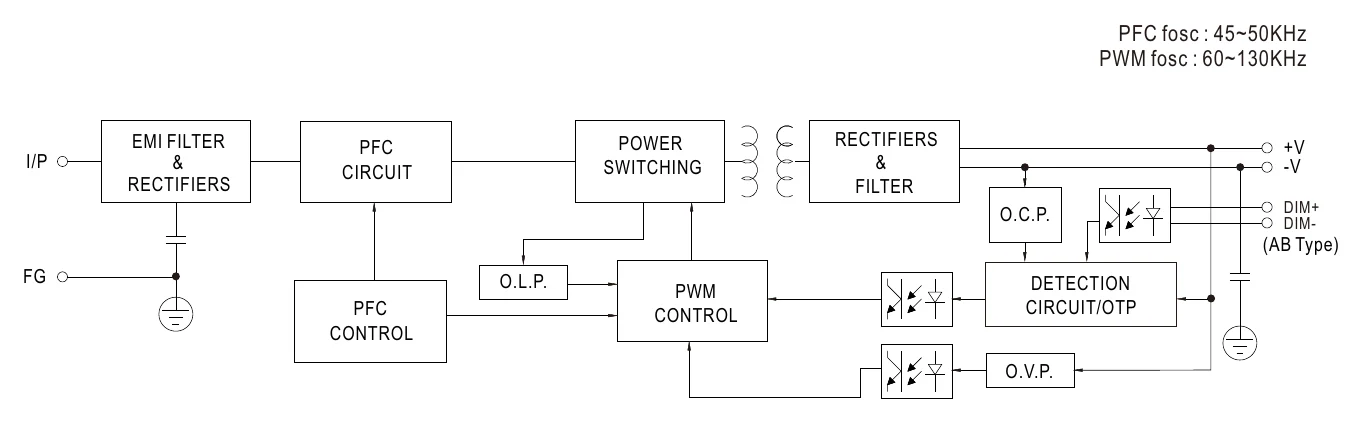

XBG-160-A-C BLOCK DIAGRAM — BLOCK DIAGRAM

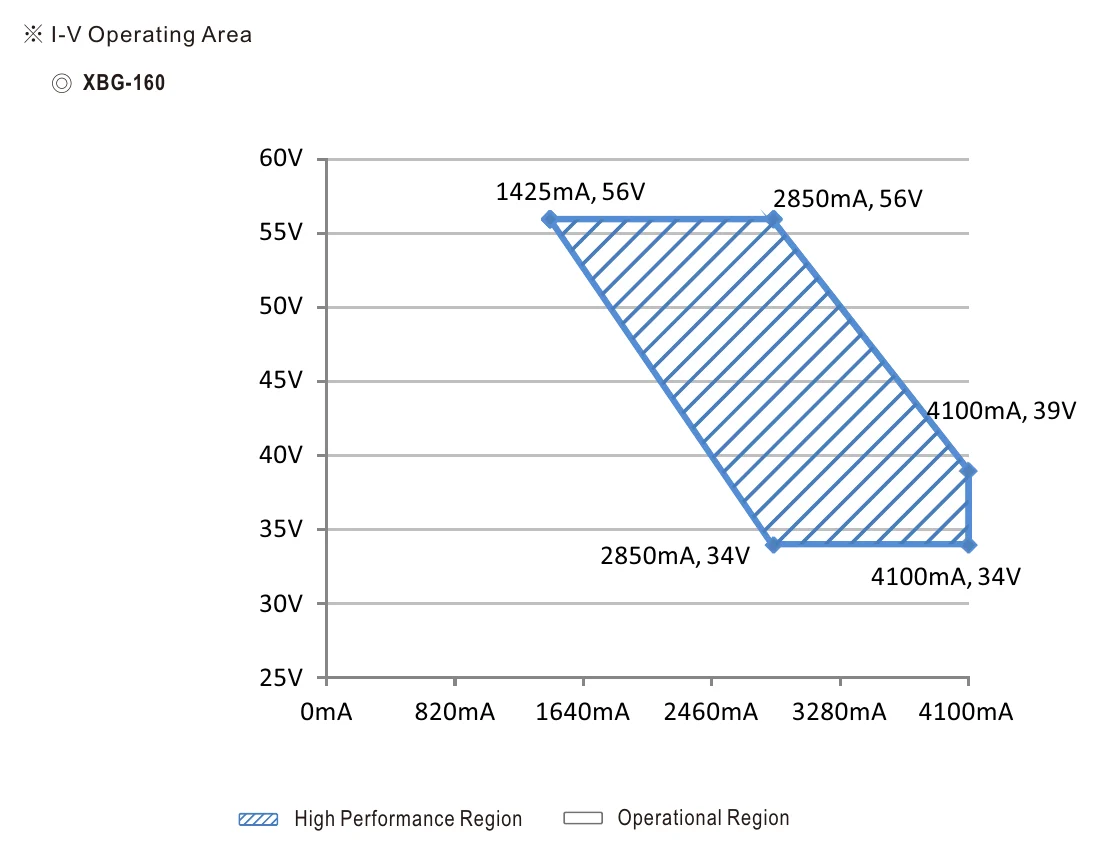

XBG-160-A-C DRIVING METHODS OF LED MODULE — DRIVING METHODS OF LED MODULE

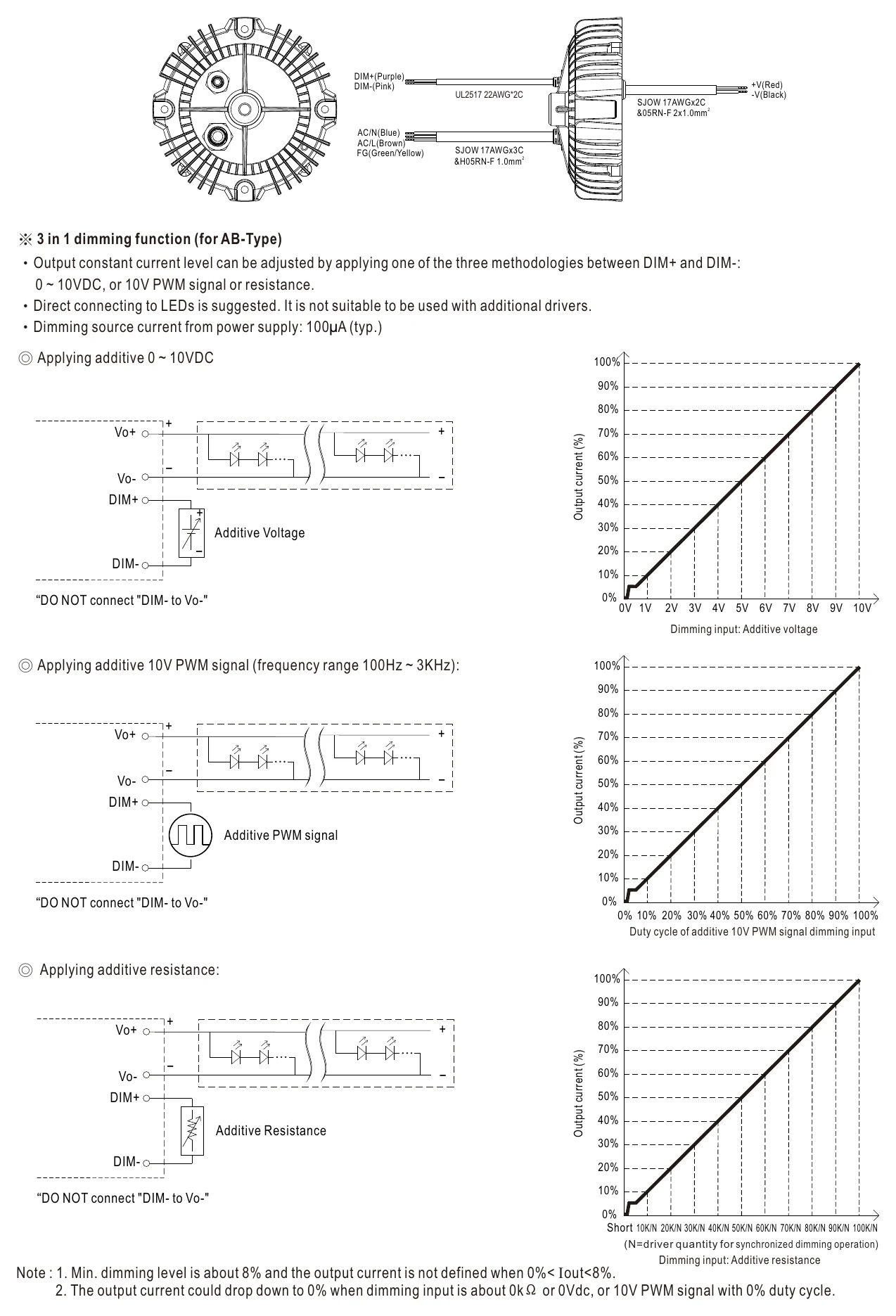

XBG-160-A-C DIMMING OPERATION — DIMMING OPERATION

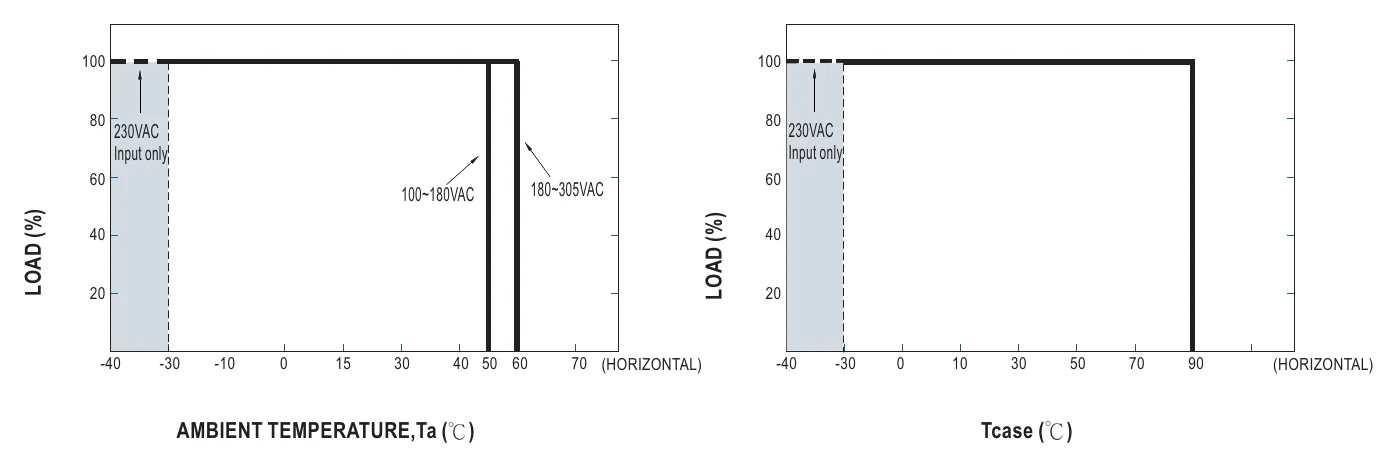

XBG-160-A-C OUTPUT LOAD vs TEMPERATURE — OUTPUT LOAD vs TEMPERATURE

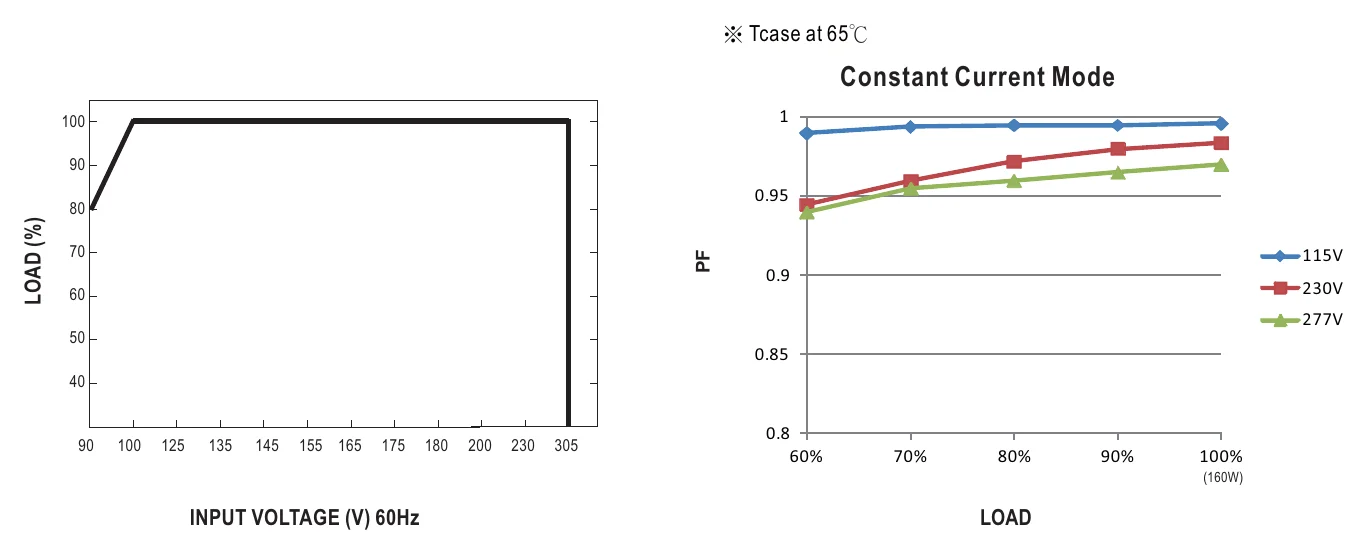

XBG-160-A-C STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

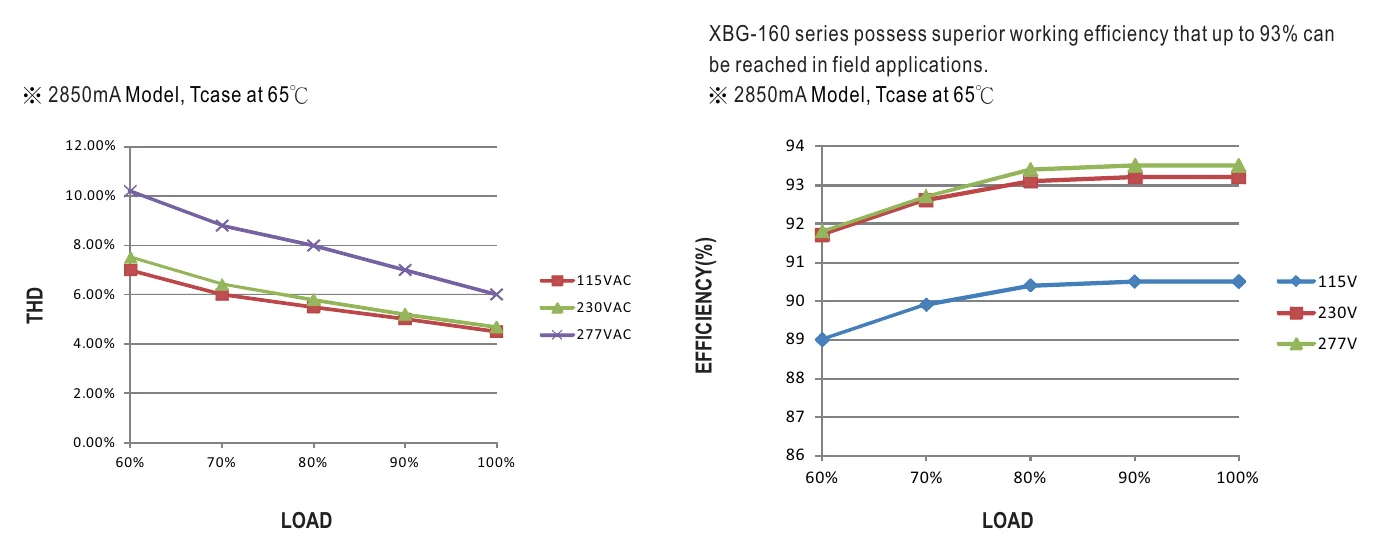

XBG-160-A-C TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

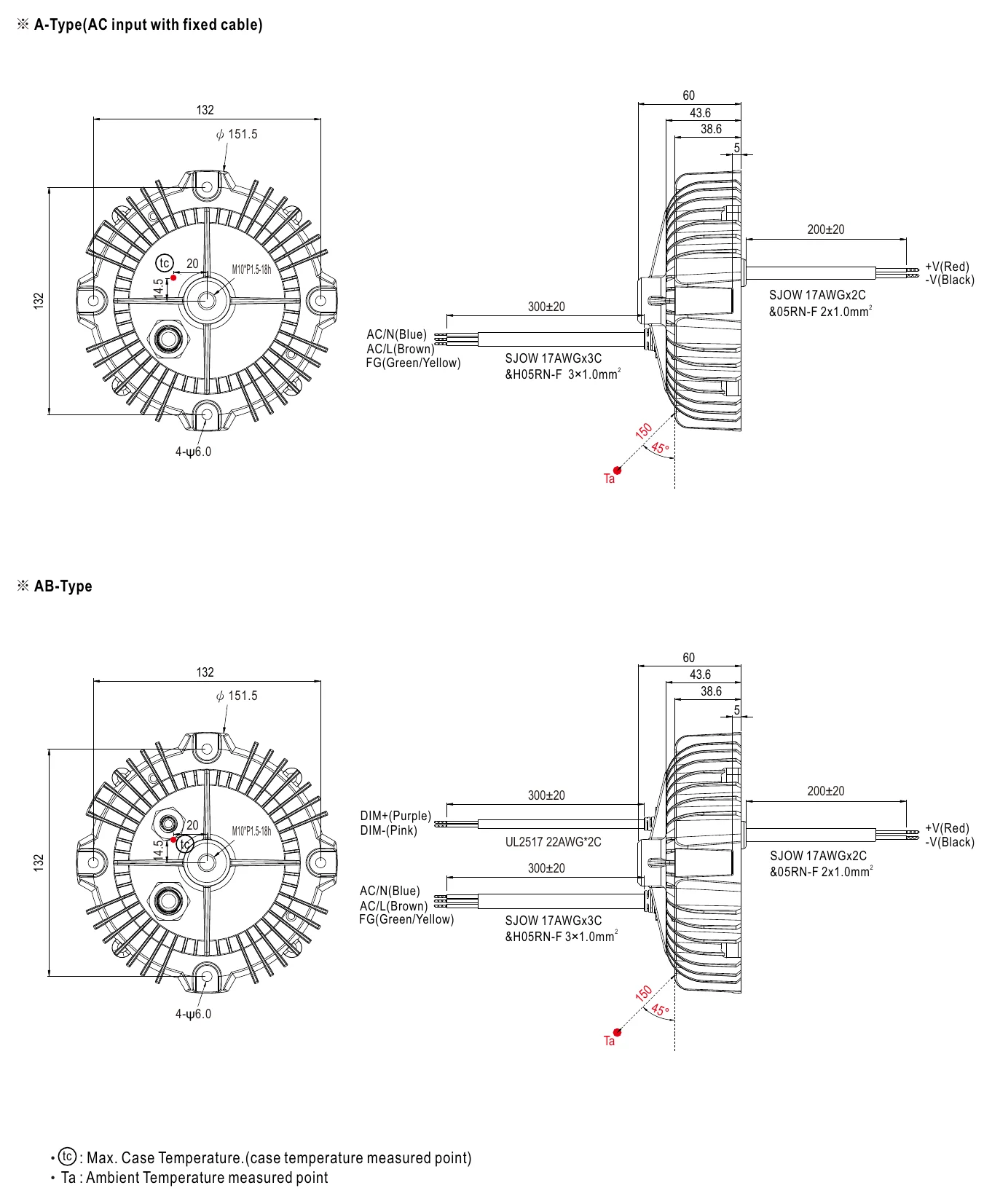

XBG-160-A-C MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

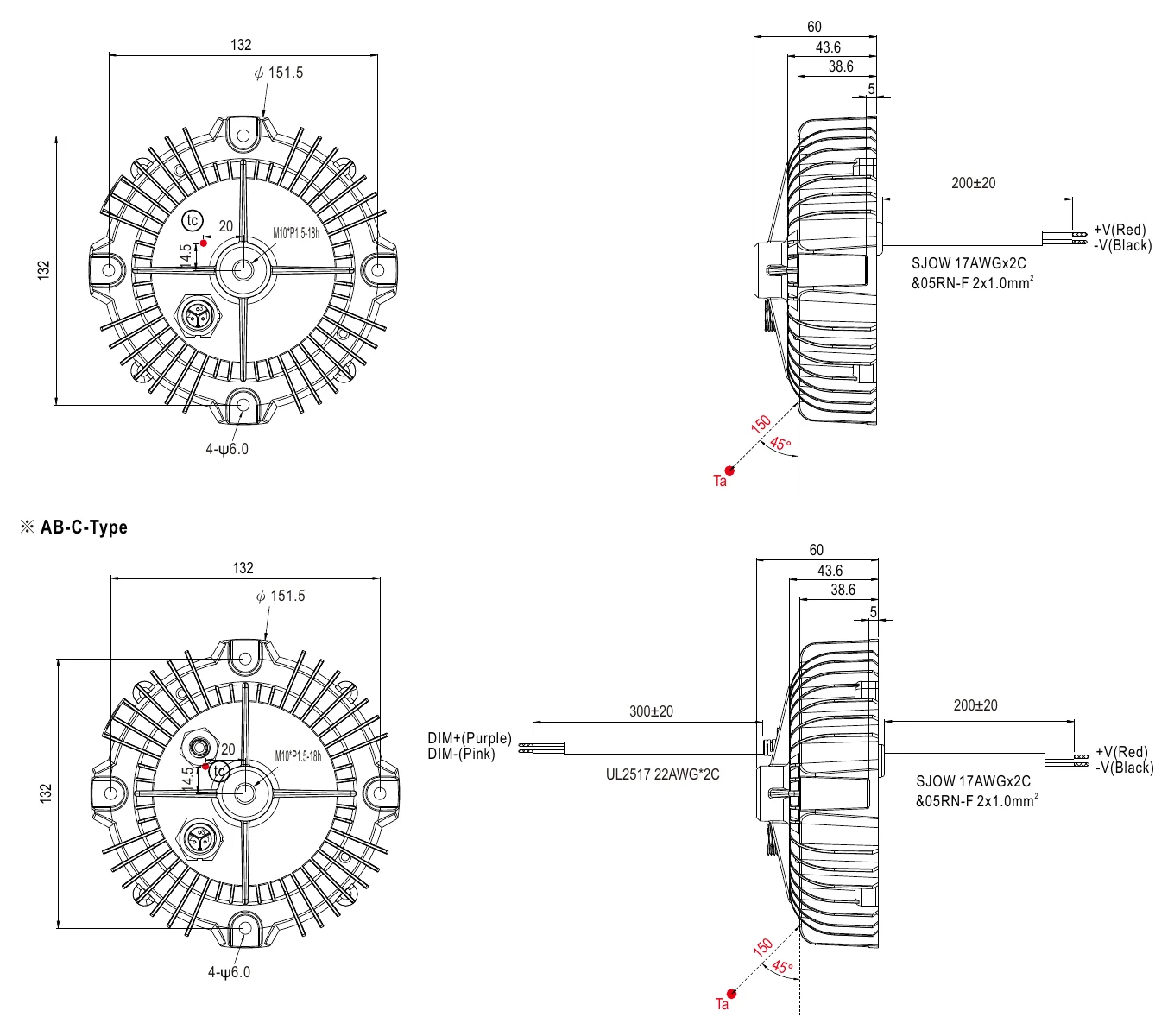

XBG-160-A-C Illustration (page 8) — Illustration (page 8)

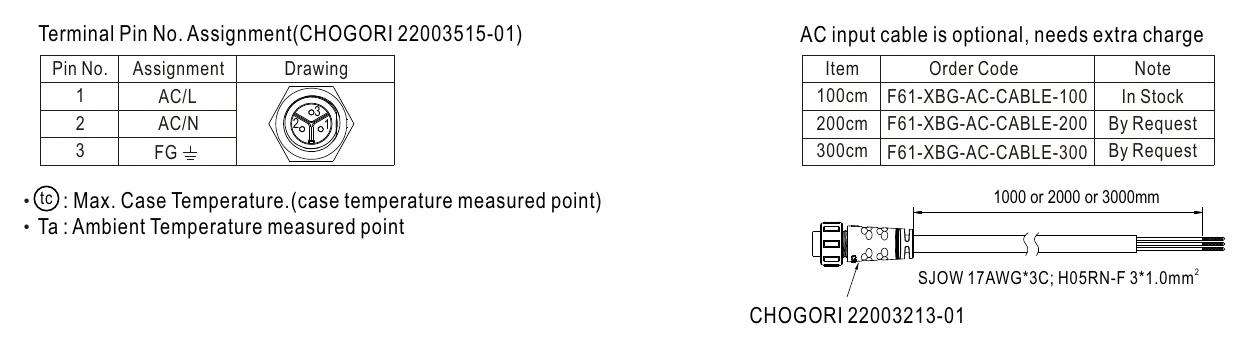

XBG-160-A-C Terminal Pin No. Assignment(CHOGORI 22003515-01) — Terminal Pin No. Assignment(CHOGORI 22003515-01)

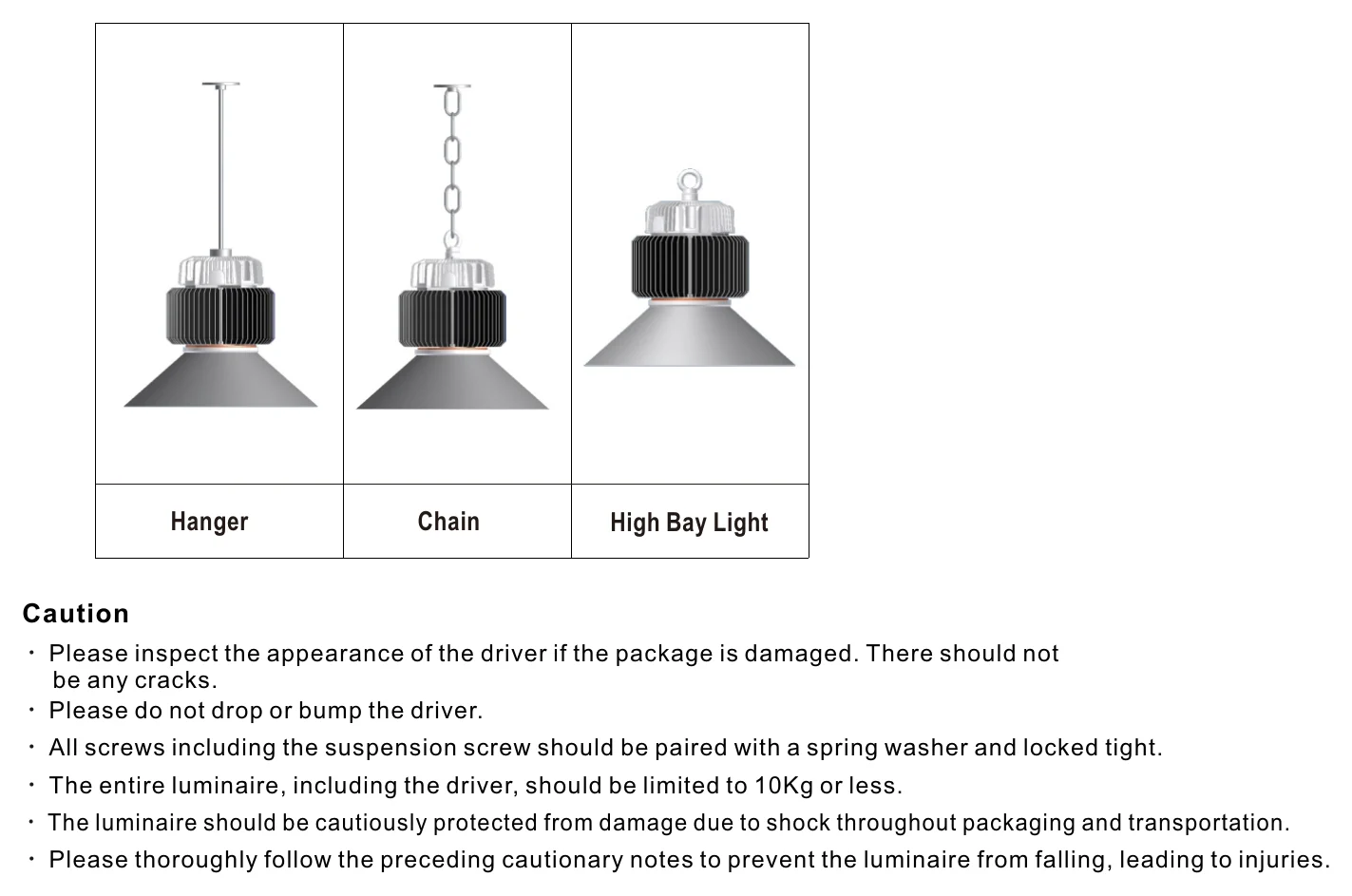

XBG-160-A-C INSTALLATIONS — INSTALLATIONS

Typical applications

LED bay lighting
LED stage lighting
LED spot lighting
Explosion-proof lighting
Type HL LED driver for class Ⅰ division 2

Downloads

Datasheet1

XBG-160-A-C datasheetXBG_160_spec.pdf · 2026-02-09 edition PDF Download

FAQ

Can the XBG-160-A-C be used for constant current LED downlight arrays?

Yes, if the downlight array is built for 3300mA constant current operation and its total forward voltage is within 34-56V. This 160W driver is for constant current loads, not constant voltage LED products.

Is this driver appropriate for signage modules with a higher current requirement?

It can be appropriate for signage modules that require 3300mA constant current and fit inside the 34-56V CC output range. That makes it more suitable for higher-current LED loads than the 2100mA XBG-100 versions.

Can I use the XBG-160-A-C for a sealed outdoor small LED array?

Yes, provided the array is a constant current load at 3300mA and its total LED forward voltage remains within 34-56V. The IP67 waterproof rating and -40°C to +90°C operating range support use in exposed or demanding environments.

How do I size an LED load for the XBG-160-A-C?

Match the driver to LED loads that need 3300mA constant current and have a total forward voltage between 34V and 56V. The number of LEDs depends on the forward voltage of each LED, so there is no single fixed LED count for this model.

Is the XBG-160-A-C suitable for wet or high-temperature locations?

Yes, it is rated IP67 for waterproof use and has an operating temperature range of -40°C to +90°C. Those specs make it suitable for applications that need environmental sealing and wide temperature tolerance.

What are the main differences between the XBG-160-A-C and the other XBG siblings listed?

The XBG-100-A, XBG-100-A-C, XBG-100-AB, and XBG-100-AB-C are 100W, 2100mA models with a 27-56V CC range. The XBG-160-A, XBG-160-AB, and XBG-160-AB-C share this model's 160W, 3300mA, and 34-56V specs, while the XBG-240-A, XBG-240-A-C, XBG-240-AB, and XBG-240-AB-C are 240W, 4900mA models with a 30-60V CC range.
