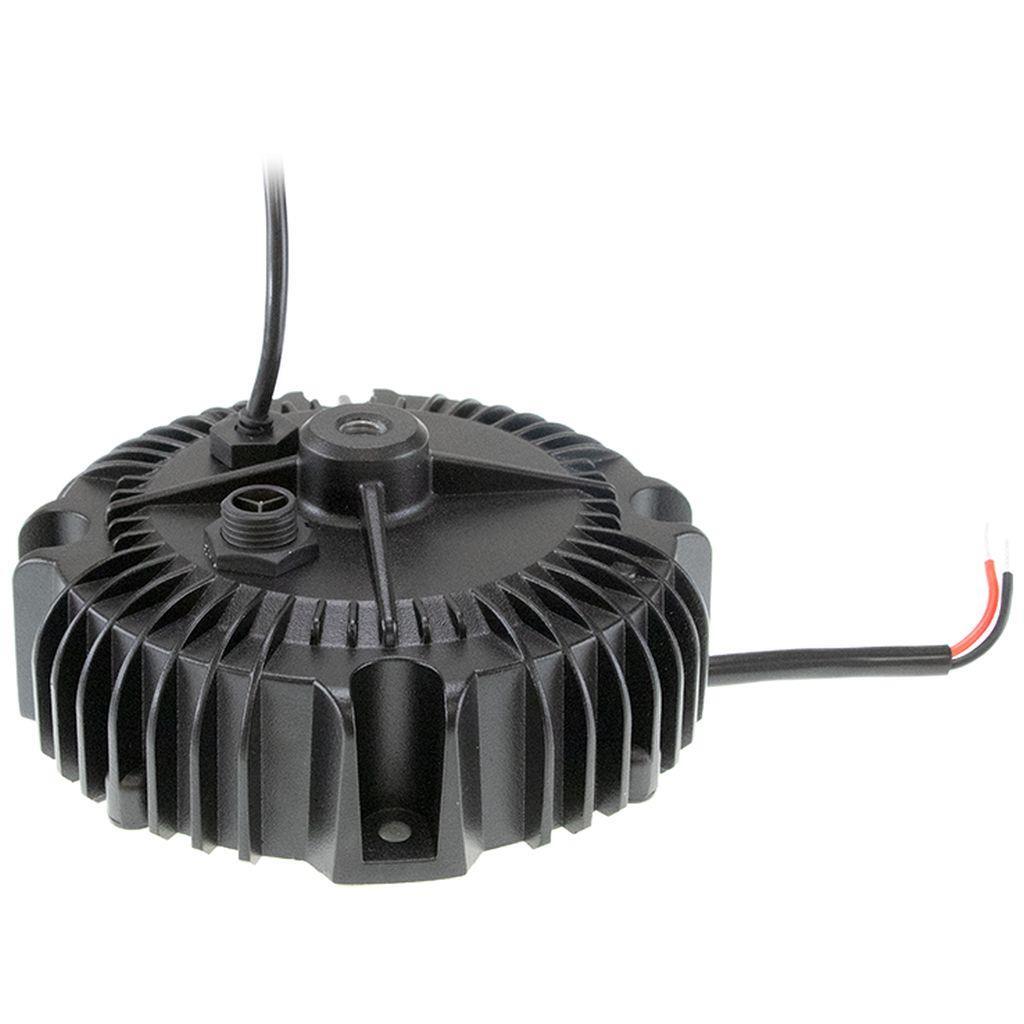

Mean Well XBG-160-A Power Supply 160W - Adjustable
Overview
XBG-160-A is the model of this series: rated power 159.9W, typical efficiency 93%.
XBG-160 series is a 160W AC/DC LED driver featuring the constant power mode. XBG-160 operates from 90~305VAC and offers with different rated current ranging between 2850mA and 4100mA. Thanks to the high efficiency up to 93%, with the fanless design, the entire series is able to operate for -40℃~+90℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. Moreover the innovative environment-adaptive capability allows this series to reliably light on the LEDs for all kinds of application environments in almost any spots that may install LED luminaires in the world. XBG-160 series comply with the latest version of IEC61347/GB7000.1-2015 and UL8750 international safety regulations. The output and dimming circuit are also completely in accordance with the new regulations with isolation to ensure the safety of both users and luminaire system during installation.
Features
- Full power output at 70~100% constant power mode operation
- Wide input range 90 ~ 305VAC with active PFC function
- Metal housing design with IP67
- Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off and Isolation design)
- Typical lifetime>50000 hours and 5 years warranty
- AC input cable with connector for flexible application
Specifications
OUTPUT
- DEFAULT CURRENT
- 3300mA
- RATED POWER
- 159.9W
- CONSTANT CURRENT REGION
- 34 ~ 56V
- FULL POWER CURRENT RANGE
- 2850~4100mA
- OPEN CIRCUIT VOLTAGE (max.)
- 60V
- CURRENT ADJ. RANGE
- 1425~4100mA
- CURRENT RIPPLE
- 5.0% max. @rated current
- CURRENT TOLERANCE
- ±5%
- SET UP TIMENote.4
- 500ms/230VAC, 2000ms/115VAC
INPUT
- VOLTAGE RANGENote.2
- 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR (Typ.)
- PF≧0.97 / 115VAC, PF≧0.95 / 230VAC, PF≧0.92 / 277VAC at full load (Please refer to "Power Factor Characteristic" section)
- TOTAL HARMONIC DISTORTION
- THD< 10% (@ load≧60% at 115VAC/230VAC ,@load≧75% at 277VAC) Please refer to “TOTAL HARMONIC DISTORTION (THD)” section
- EFFICIENCY (Typ.)
- 93%
- AC CURRENT (Typ.)
- 2.0A / 115VAC 0.8A / 230VAC 0.7A / 277VAC
- INRUSH CURRENT(Typ.)
- COLD START 50A(twidth=620μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
- MAX. NO. of PSUs on 16A CIRCUIT BREAKER
- 4 unit(circuit breaker of type B) / 7 units(circuit breaker of type C) at 230VAC
- LEAKAGE CURRENT
- <0.75mA / 277VAC
- NO LOAD / STANDBY POWER CONSUMPTION
- No load power consumption<0.5W for A-Type Standby power consumption<0.5W for AB-Type
PROTECTION
- OVER CURRENT
- 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
- SHORT CIRCUIT
- Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 61 ~ 78V Shut down output voltage, re-power on to recovery
- OVER TEMPERATURE
- Shut down output voltage, re-power on to recovery
ENVIRONMENT
- WORKING TEMP.
- Tcase=-40 ~ +90℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
- MAX. CASE TEMP.
- Tcase=+90℃
- WORKING HUMIDITY
- 20 ~ 95% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +80℃, 10 ~ 95% RH non-condensing
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 60℃)
- VIBRATION
- 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- UL8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384; IS15885(Part2/Sec13);GB/T19510.1,GB/T19510.213;IP67;EAC TP TC 004 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
-
Parameter Standard Test Level Conducted BS EN/EN55015(CISPR15),GB/T 17743 Radiated BS EN/EN55015(CISPR15),GB/T 17743 Harmonic Current BS EN/EN61000-3-2 ,GB17625.1 Class C @load≥50% Voltage Flicker BS EN/EN61000-3-3 -----; BS EN/EN55024 , BS EN/EN61204-3, BS EN/EN61000-6-2 - EMC IMMUNITY
-
Parameter Standard Test Level ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact Radiated BS EN/EN61000-4-3 Level 3 EFT/Burst BS EN/EN61000-4-4 Level 3 Surge BS EN/EN61000-4-5 4KV/Line-Line 6KV/Line-Earth Conducted BS EN/EN61000-4-6 Level 3 Magnetic Field BS EN/EN61000-4-8 Level 4 Voltage Dips and Interruptions BS EN/EN61000-4-11 >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods
OTHERS
- MTBF
- 3173.6K hrs min. Telcordia SR-332(Bellcore) ; 282.4K hrs min. MIL-HDBK-217F (25℃)
- LIFETIMENote.5
- 50000 hrs min.
- DIMENSION
- φ151.5mm *60mm(D*H)
- PACKING
- 1.25Kg; 8pcs/11.5Kg/0.93CUFT
Certifications & ratings
- Type
- HL
Test conditions and notes11
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
- 2. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
- 3. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
- 4. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
- 5. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 70℃ or less.
- 6. To fulfill requirements of the latest ErP regulation for lighting fixture, this LED drive can only be used behind a switch without permanently connected to the mains.
- 7. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
- 8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 9. Products sourced from the Americas regions may not have the PSE/CCC/BIS/KC logo. Please contact your MEAN WELL sales for more information.
- 10. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
- 11. For A/AB type need to consider build-in using or filling the Io adjusting hole with the potting compound to comply with Type HL application.
Technical drawings
Typical applications
- LED bay lighting
- LED stage lighting
- LED spot lighting
- Explosion-proof lighting
- Type HL LED driver for class Ⅰ division 2
Downloads
Datasheet1
FAQ
Can I use the XBG-160-A for higher-power LED downlights?
Yes, if the downlight load is designed for constant current operation at 3300mA and its total LED forward voltage falls within 34-56V. With 160W output, this model fits higher-power constant current fixtures better than lower-power drivers in the same series.
Is the XBG-160-A a good fit for larger signage modules or denser small LED arrays?
It can be a good fit when the signage module or LED array requires 3300mA constant current and operates within the 34-56V CC range. Because this is a constant current driver, it should not be used in place of a constant voltage power supply for LED products designed around fixed voltage output.
Can this model be used for outdoor LED assemblies exposed to weather?
Yes, the XBG-160-A has an IP67 waterproof rating and is built to operate from -40°C to +90°C. That makes it appropriate for outdoor or industrial LED assemblies that need a sealed constant current driver.
What should I check before pairing the XBG-160-A with an LED load?
Check that the LED load is specified for 3300mA constant current and that the combined forward voltage stays within 34-56V. The number of LEDs depends on the forward voltage of each LED, so compatibility is based on current and total voltage, not on a fixed quantity of LEDs.
What environments is the XBG-160-A built for?
This driver is rated IP67 and has a -40°C to +90°C operating temperature range, so it is intended for harsh indoor or outdoor conditions. It also supports a wide 90-305VAC input range for installations with varying AC supply conditions.
How does the XBG-160-A compare with the other XBG series options listed here?
The XBG-160-A is a 160W, 3300mA model with a 34-56V CC range. Other models in the XBG-160 series include the XBG-160-A-C (same specs, connector input), XBG-160-AB (adds 3-in-1 dimming), and XBG-160-AB-C (dimming + connector). The XBG-100 series is 100W/2100mA, and the XBG-240 series is 240W/4900mA.
