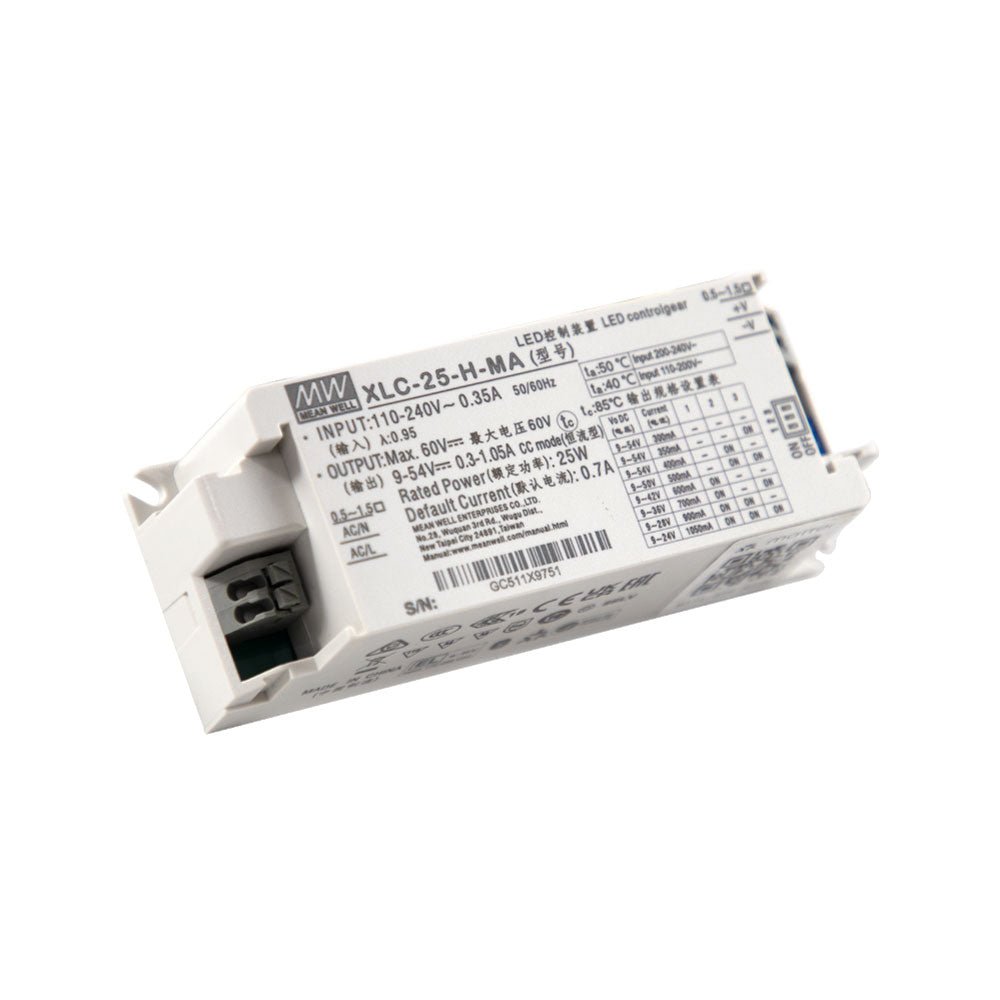

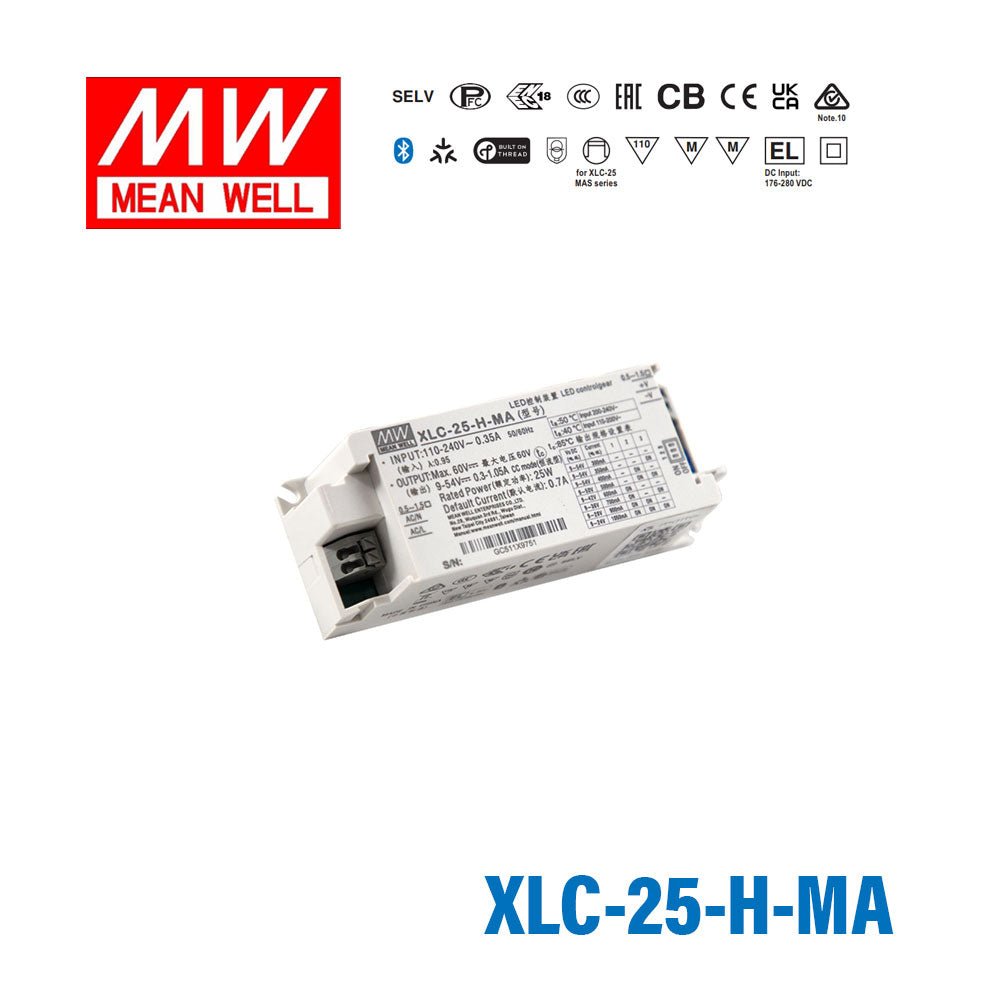

Mean Well XLC-25-H-MA LED Driver 25W 700mA 9~54V Constant Power, Current Setting by Dip Switch, Matter Wireless Dimming
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well XLC-25-H-MA LED Driver 25W 700mA 9~54V Constant Power, Cu...
Description
Description
Key Features
- ✓Constant power mode output with multiple stage selectable by DIP switch
- ✓Plastic housing with class II and PFC design
- ✓Flicker free, complying with CE ErP directive
- ✓Standby power consumption <0.5W
- ✓Meet emergency lighting (EL) application
- ✓Minimum dimming level 0.5%
- ✓Matter over thread, Matter 1.3 specification
- ✓5 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well XLC Series
-
Power Rating25 Watt
-
Output Voltage60 Volt
-
Rated Current0.7 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlDimmable
-
Standards MetCB,CCC,CE,EAC,ENEC,SELV
-
Operation ModeConstant Current
-
Operating Temperature-25°C~85°C
-
Warranty5 Year
-
Length4.21 in
-
Width1.26 in
-
Height1.57 in
-
Weight0.35 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the XLC-25-H-MA to control LED downlights wirelessly through a Matter smart home ecosystem?
Yes. The XLC-25-H-MA supports Matter 1.3 wireless dimming, making it compatible with Matter-enabled smart home hubs and apps. It drives LED downlights with a constant current over a 9–54V range at 700mA, and the current can be adjusted between 0.3A and 1.05A via dip switch.
Is the XLC-25-H-MA suitable for LED downlights in a residential Matter lighting system?
Yes. The built-in Matter 1.3 specification enables integration with common residential smart home platforms. The driver is rated for 25W at 700mA with flicker-free operation, which is appropriate for living spaces and bedrooms where flicker sensitivity matters.
Can this driver power LED signage modules and be dimmed wirelessly via Matter?
Yes. The XLC-25-H-MA can drive LED signage modules or small LED arrays where the forward voltage string falls within 9–54V, and the built-in Matter wireless dimming allows remote brightness control without additional hardware. The number of LED modules depends on individual LED forward voltages.
What is the operating temperature range for the XLC-25-H-MA, and can it be used inside enclosed luminaires?
The XLC-25-H-MA operates from -25°C to +85°C and is rated for built-in (enclosed) use. It is a Class II driver, making it appropriate for installation inside luminaire housings.
How does the XLC-25-H-MA differ from the XLC-25-H-MAS?
Both are 25W, 700mA Matter wireless dimming drivers with identical electrical specifications and a current range of 0.3–1.05A. The XLC-25-H-MAS adds a strain-relief fitting and is slightly larger at 147.0 × 32.0 × 40.0 mm, whereas the XLC-25-H-MA measures 107.0 × 32.0 × 40.0 mm and does not include strain relief.
How many LEDs can the XLC-25-H-MA drive, and what voltage does it require?
The driver provides constant current across a CC voltage range of 9–54V at 700mA. The number of LEDs in the string depends on each LED's forward voltage — there is no universal count. The combined forward voltage of the LED string must fall within 9–54V.
Other XLC-25 Models
5 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well XLC-25-H-MAS LED Driver 25W 700mA 9~54V Constant Power, Current Setting by Dip Switch, Matter Wireless Dimming with Strain Relief | 25W | 60V | 0.7A | Indoor | $137.30 | View |
| Mean Well XLC-25-H-SN LED Driver 25W 700mA 9~54V Constant Power with Strain-relief, NFC Current Setting | 25W | 60V | 0.7A | Indoor | $29.13 | View |
| Mean Well XLC-25-H-S LED Driver 25W 700mA 9~54V Constant Power with Strain-relief, Current Setting by Dip Switch | 25W | 60V | 0.7A | Indoor | $29.13 | View |
| Mean Well XLC-25-H-N LED Driver 25W 700mA 9~54V Constant Power, NFC Current Setting | 25W | 60V | 0.7A | Indoor | $27.64 | View |
| Mean Well XLC-25-H-DA2SN LED Driver 25W 700mA 9~54V Constant Power, DALI2 + Push Dimming with Strain-relief, NFC Current Setting | 25W | 60V | 0.7A | Indoor | $38.12 | View |
