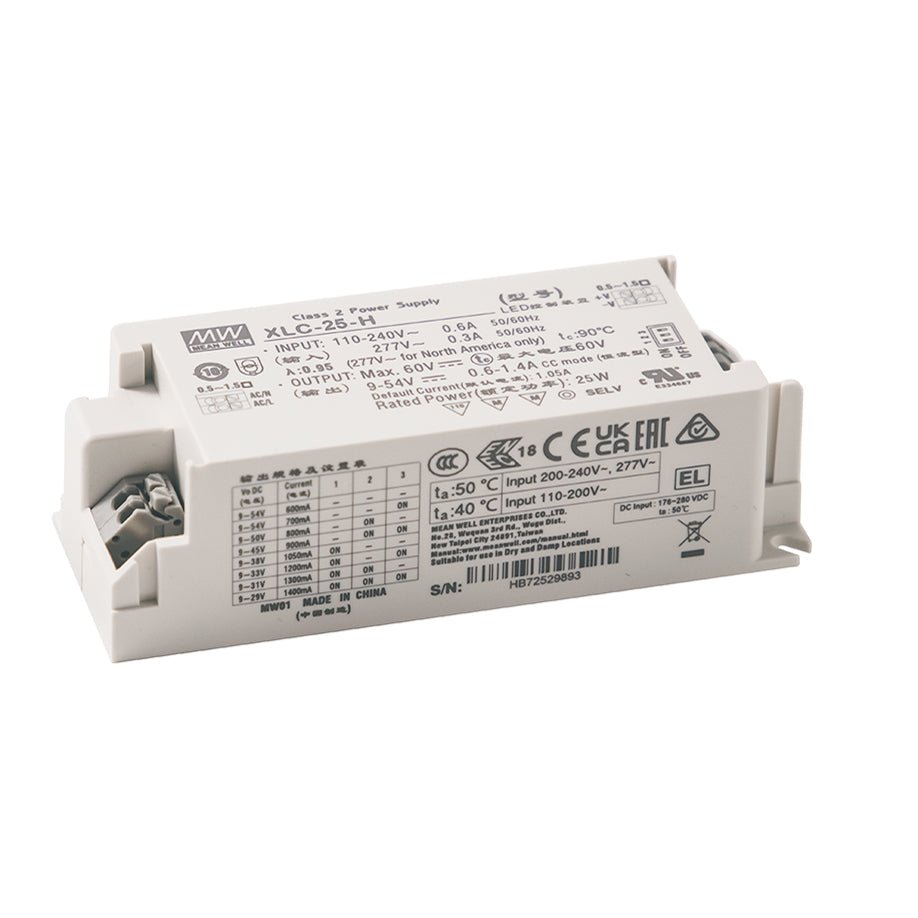

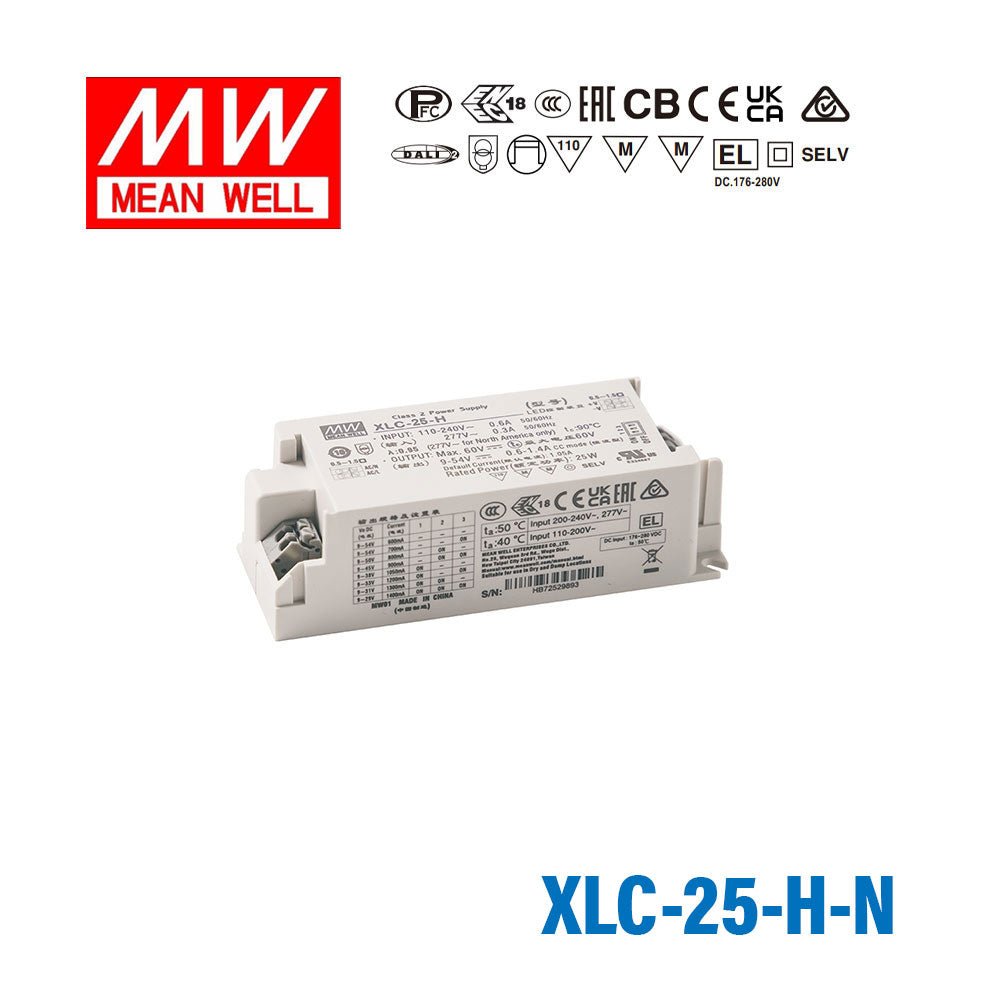

Mean Well XLC-25-H-N LED Driver 25W 700mA 9~54V Constant Power, NFC Current Setting
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well XLC-25-H-N LED Driver 25W 700mA 9~54V Constant Power, NFC...
Description
Description
Key Features
- ✓Constant power mode output with multiple stages selectable by dip switch or NFC setting(H-type)
- ✓Constant voltage mode output (12V/24V)
- ✓Plastic housing with class II/2 and PFC design
- ✓Flicker-free, complying with IEEE1789/ErP
- ✓Standby power consumption <0.5W
- ✓Meet emergency lighting (EL) application
- ✓Minimum dimming level 0.1% (DALI-2 DT6)
- ✓Dimming functions: 3 in 1 dimming (Dim-to-off) DALI-1 + Push dimming
- ✓5 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well XLC Series
-
Power Rating25 Watt
-
Output Voltage60 Volt
-
Rated Current0.7 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlNon Dimmable
-
Standards MetCB,CCC,CE,EAC,ENEC,SELV
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~90°C
-
Warranty5 Year
-
Length5.79 in
-
Width1.26 in
-
Height1.57 in
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the XLC-25-H-N to drive LED downlights that require NFC-based current configuration?
Yes. The XLC-25-H-N supports NFC current setting, allowing the output current to be adjusted between 0.3A and 1.05A using a compatible NFC device. It delivers 25W at 700mA across a 9–54V CC range, suitable for LED downlights within that voltage range.
Is the XLC-25-H-N appropriate for LED downlight arrays where flicker-free performance is required?
Yes. The XLC-25-H-N is designed for flicker-free operation, making it appropriate for environments such as offices, retail spaces, or medical facilities where flicker standards apply. The driver operates in constant current mode over a 9–54V range.
Can this driver be used for small LED signage modules that need programmable current levels?
Yes. The NFC current setting feature allows you to tune the driver output between 0.3A and 1.05A without physical DIP switch access, which is convenient for signage installations where the driver may not be easily reachable after mounting. The driver supports LED loads with a combined forward voltage between 9V and 54V.
What is the operating temperature range of the XLC-25-H-N, and is it rated for enclosed use?
The XLC-25-H-N is rated for -25°C to +90°C and is designed for built-in (enclosed fixture) use. As a Class II driver, it is appropriate for installation inside sealed luminaire housings.
How many LEDs can the XLC-25-H-N drive?
The driver provides constant current over a voltage range of 9–54V at up to 700mA. The number of LEDs depends on each LED's forward voltage — ensure the combined string voltage falls between 9V and 54V at the operating current level.
What differentiates the NFC variants in the XLC-25-H series from the dip-switch variants?
The NFC variants (XLC-25-H-N, XLC-25-H-SN, XLC-25-H-DA2N, etc.) allow current adjustment wirelessly using an NFC device, while dip-switch variants require physical access to toggle current settings. Electrical output ratings — 25W, 700mA, 9–54V — are the same across the NFC and dip-switch 700mA variants.
Other XLC-25 Models
5 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well XLC-25-H-MAS LED Driver 25W 700mA 9~54V Constant Power, Current Setting by Dip Switch, Matter Wireless Dimming with Strain Relief | 25W | 60V | 0.7A | Indoor | $137.30 | View |
| Mean Well XLC-25-H-MA LED Driver 25W 700mA 9~54V Constant Power, Current Setting by Dip Switch, Matter Wireless Dimming | 25W | 60V | 0.7A | Indoor | $137.30 | View |
| Mean Well XLC-25-H-SN LED Driver 25W 700mA 9~54V Constant Power with Strain-relief, NFC Current Setting | 25W | 60V | 0.7A | Indoor | $29.13 | View |
| Mean Well XLC-25-H-S LED Driver 25W 700mA 9~54V Constant Power with Strain-relief, Current Setting by Dip Switch | 25W | 60V | 0.7A | Indoor | $29.13 | View |
| Mean Well XLC-25-H-DA2SN LED Driver 25W 700mA 9~54V Constant Power, DALI2 + Push Dimming with Strain-relief, NFC Current Setting | 25W | 60V | 0.7A | Indoor | $38.12 | View |
