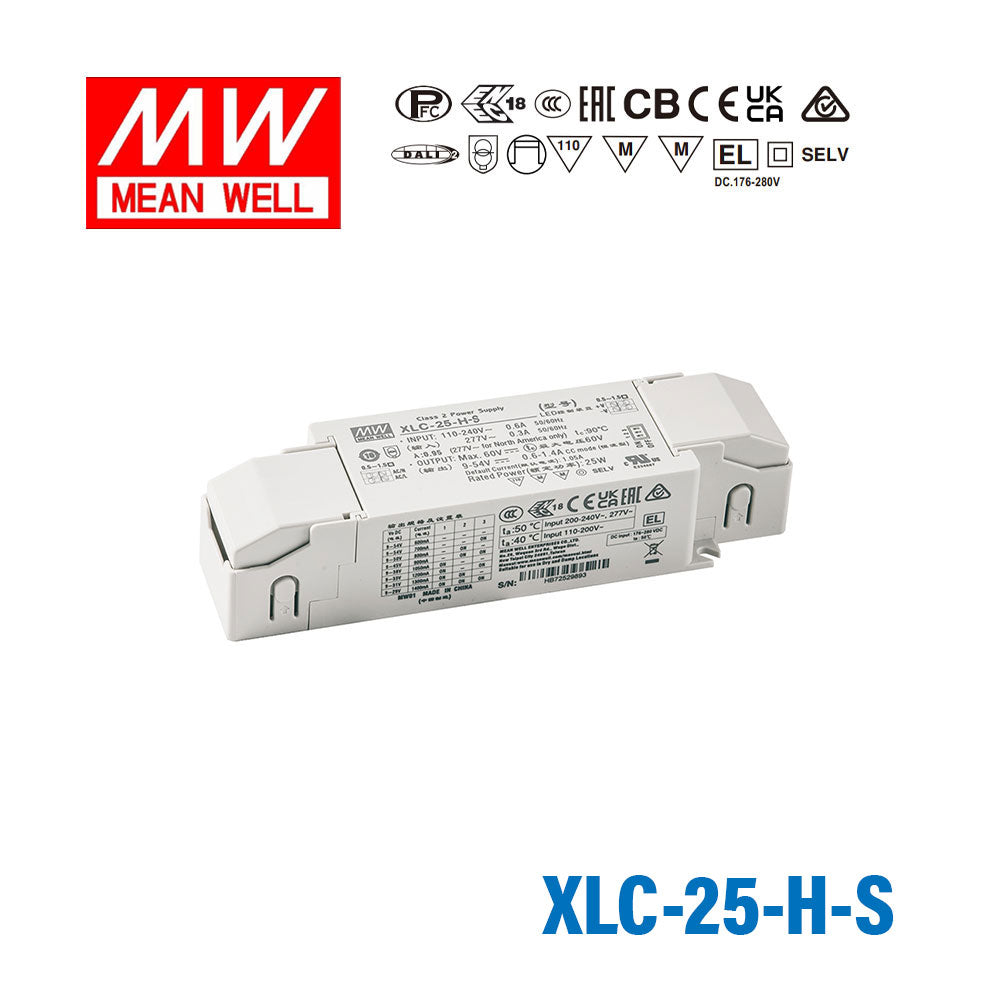

Mean Well XLC-25-H-S LED Driver 25W 700mA 9~54V Constant Power with Strain-relief, Current Setting by Dip Switch
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well XLC-25-H-S LED Driver 25W 700mA 9~54V Constant Power with...
Description
Description
Key Features
- ✓Constant power mode output with multiple stages selectable by dip switch or NFC setting(H-type)
- ✓Constant voltage mode output (12V/24V)
- ✓Plastic housing with class II/2 and PFC design
- ✓Flicker-free, complying with IEEE1789/ErP
- ✓Standby power consumption <0.5W
- ✓Meet emergency lighting (EL) application
- ✓Minimum dimming level 0.1% (DALI-2 DT6)
- ✓Dimming functions: 3 in 1 dimming (Dim-to-off) DALI-1 + Push dimming
- ✓5 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well XLC Series
-
Power Rating25 Watt
-
Output Voltage60 Volt
-
Rated Current0.7 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlNon Dimmable
-
Standards MetCB,CCC,CE,EAC,ENEC,SELV
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~90°C
-
Warranty5 Year
-
Length5.79 in
-
Width1.26 in
-
Height1.57 in
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the XLC-25-H-S to drive LED downlights with current settings adjusted on-site via dip switch?
Yes. The XLC-25-H-S allows output current adjustment between 0.3A and 1.05A via dip switch, making it practical for installers who need to fine-tune the current at commissioning time. It delivers 25W at 700mA over a 9–54V CC range.
Is the XLC-25-H-S appropriate for LED signage modules in commercial installations?
Yes. With flicker-free output and a constant current range of 9–54V, the XLC-25-H-S can supply LED signage modules where the total forward voltage of the LED string falls within that range. The strain-relief fitting also makes it suitable for installations where wiring management is important.
Can this driver be used in enclosed luminaire housings such as recessed downlights?
Yes. The XLC-25-H-S is rated for built-in use and operates from -25°C to +90°C. As a Class II driver, it is appropriate for enclosed recessed downlight fixtures.
Does the XLC-25-H-S include strain relief?
Yes. The XLC-25-H-S includes an integrated strain-relief fitting, which distinguishes it from the XLC-25-H (without strain relief). Both share the same 25W, 700mA, 9–54V electrical specifications.
What is the operating temperature range of the XLC-25-H-S?
The XLC-25-H-S operates from -25°C to +90°C, which covers typical indoor commercial and residential installation environments.
How many LEDs can the XLC-25-H-S drive in a single string?
The driver provides constant current across a CC voltage range of 9–54V at 700mA. The number of LEDs in the string is determined by each LED's forward voltage — the total combined forward voltage must fall within 9–54V at the chosen operating current.
