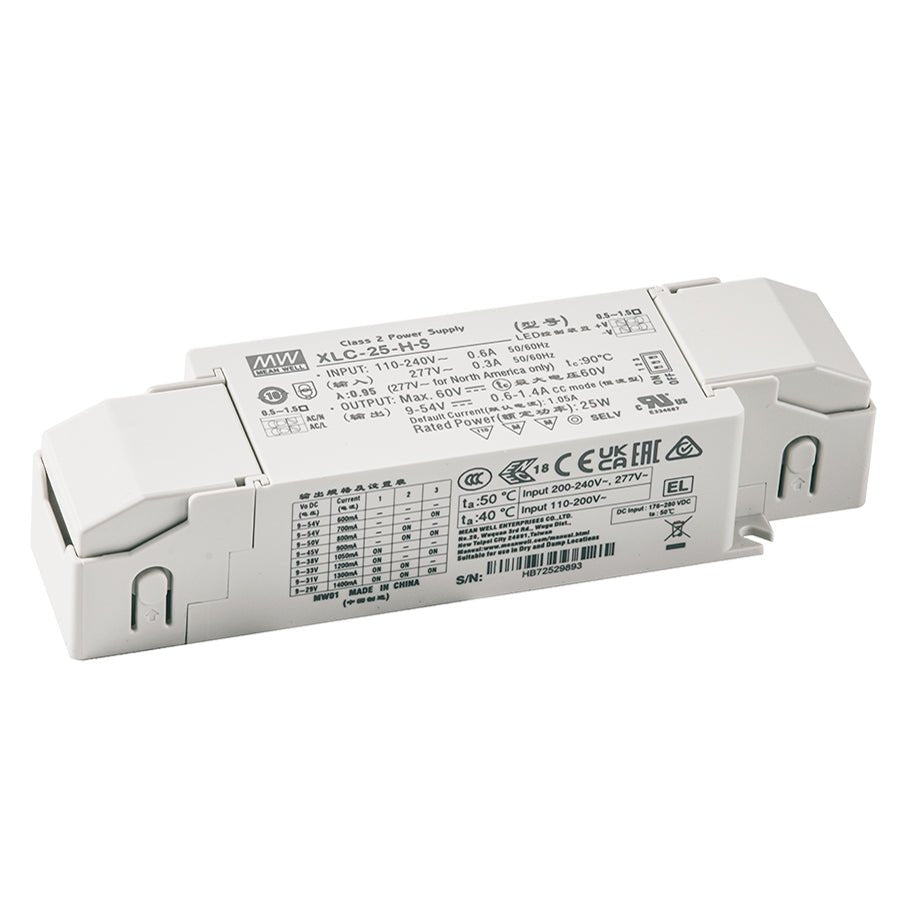

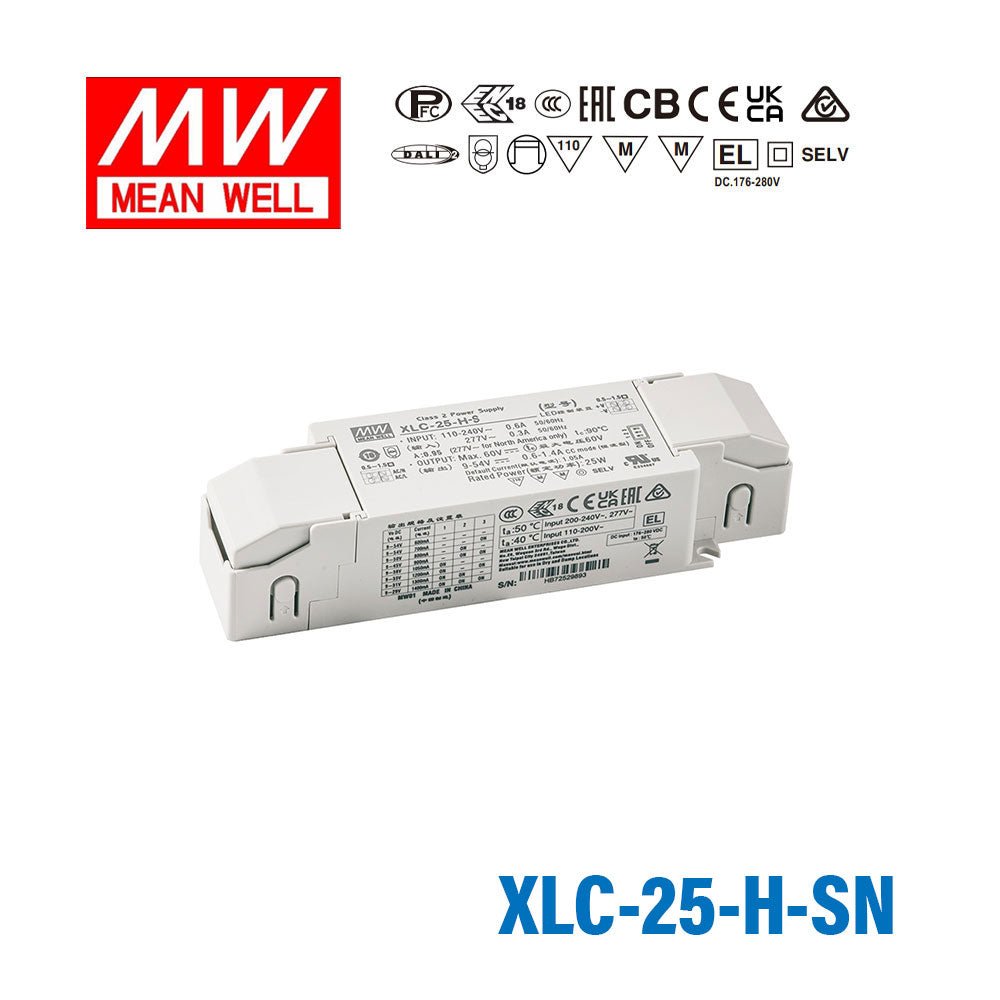

Mean Well XLC-25-H-SN LED Driver 25W 700mA 9~54V Constant Power with Strain-relief, NFC Current Setting
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well XLC-25-H-SN LED Driver 25W 700mA 9~54V Constant Power wit...
Description
Description
Key Features
- ✓Constant power mode output with multiple stages selectable by dip switch or NFC setting(H-type)
- ✓Constant voltage mode output (12V/24V)
- ✓Plastic housing with class II/2 and PFC design
- ✓Flicker-free, complying with IEEE1789/ErP
- ✓Standby power consumption <0.5W
- ✓Meet emergency lighting (EL) application
- ✓Minimum dimming level 0.1% (DALI-2 DT6)
- ✓Dimming functions: 3 in 1 dimming (Dim-to-off) DALI-1 + Push dimming
- ✓5 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well XLC Series
-
Power Rating25 Watt
-
Output Voltage60 Volt
-
Rated Current0.7 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlNon Dimmable
-
Standards MetCB,CCC,CE,EAC,ENEC,SELV
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~90°C
-
Warranty5 Year
-
Length5.79 in
-
Width1.26 in
-
Height1.57 in
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the XLC-25-H-SN to drive LED downlights where the current needs to be set via NFC without physical switch access?
Yes. The XLC-25-H-SN supports NFC current setting, allowing output current adjustment between 0.3A and 1.05A using a compatible NFC device. With 25W at 700mA and a 9–54V CC range, it is appropriate for LED downlights whose forward voltage string falls within that range.
Is the XLC-25-H-SN suitable for flicker-sensitive LED applications such as video production studios?
Yes. The driver is designed for flicker-free operation, which is important in environments where lighting flicker could affect camera capture or occupant well-being. It operates as a constant current source over a 9–54V range.
Can this driver be used for small LED arrays in enclosed lighting fixtures?
Yes. The XLC-25-H-SN is rated for built-in (enclosed fixture) use and operates from -25°C to +90°C. The integrated strain-relief fitting also makes it suitable for installations where cable security is needed inside luminaire housings.
What is the difference between the XLC-25-H-S and the XLC-25-H-SN?
Both models share the same 25W, 700mA, 9–54V electrical specifications and include strain relief. The XLC-25-H-SN adds NFC current setting for wireless configuration, while the XLC-25-H-S uses a dip switch for current adjustment. All other specs, including dimensions (147.0 × 32.0 × 40.0 mm) and operating temperature (-25°C to +90°C), are the same.
What operating temperature range does the XLC-25-H-SN support?
The XLC-25-H-SN is rated from -25°C to +90°C, covering standard indoor and mildly temperature-elevated enclosed luminaire environments.
How many LEDs can the XLC-25-H-SN drive in a single constant current string?
The driver outputs constant current over a CC voltage range of 9–54V at 700mA. The number of LEDs it can drive depends on the forward voltage of each LED — the sum of all LED forward voltages in the string must fall between 9V and 54V.
Other XLC-25 Models
5 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well XLC-25-H-MAS LED Driver 25W 700mA 9~54V Constant Power, Current Setting by Dip Switch, Matter Wireless Dimming with Strain Relief | 25W | 60V | 0.7A | Indoor | $137.30 | View |
| Mean Well XLC-25-H-MA LED Driver 25W 700mA 9~54V Constant Power, Current Setting by Dip Switch, Matter Wireless Dimming | 25W | 60V | 0.7A | Indoor | $137.30 | View |
| Mean Well XLC-25-H-S LED Driver 25W 700mA 9~54V Constant Power with Strain-relief, Current Setting by Dip Switch | 25W | 60V | 0.7A | Indoor | $29.13 | View |
| Mean Well XLC-25-H-N LED Driver 25W 700mA 9~54V Constant Power, NFC Current Setting | 25W | 60V | 0.7A | Indoor | $27.64 | View |
| Mean Well XLC-25-H-DA2SN LED Driver 25W 700mA 9~54V Constant Power, DALI2 + Push Dimming with Strain-relief, NFC Current Setting | 25W | 60V | 0.7A | Indoor | $38.12 | View |
