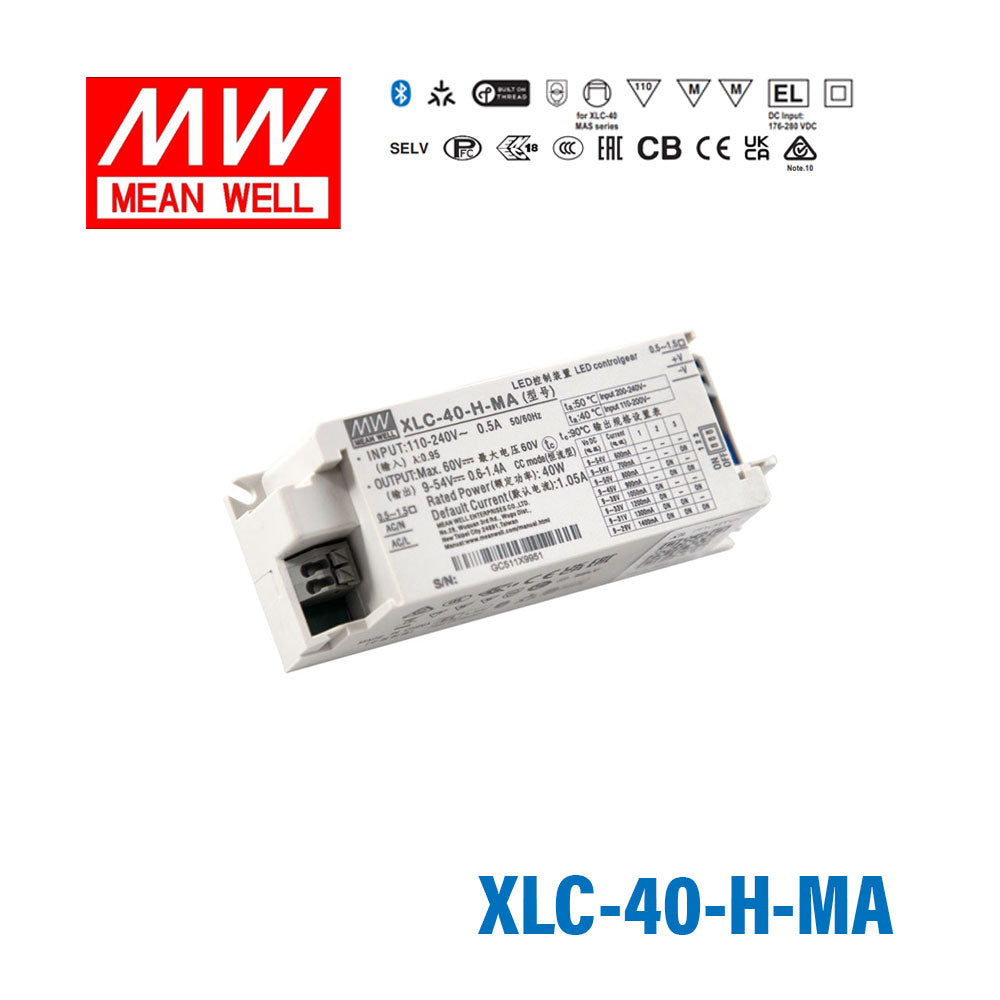

Mean Well XLC-40-H-MA LED Driver 40W 1050mA 9~54V Constant Power, Current Setting by Dip Switch, Matter Wireless Dimming
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well XLC-40-H-MA LED Driver 40W 1050mA 9~54V Constant Power, C...
Key Features
- ✓Constant power mode output with multiple stage selectable by DIP switch
- ✓Plastic housing with class II and PFC design
- ✓Flicker free, complying with CE ErP directive
- ✓Standby power consumption <0.5W
- ✓Meet emergency lighting (EL) function application
- ✓Minimum dimming level 0.5%
- ✓Matter over thread, Matter 1.3 specification
- ✓5 years warranty
-
BrandMean Well
-
SeriesMean Well XLC Series
-
Power Rating40 Watt
-
Output Voltage60 Volt
-
Rated Current1.05 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlDimmable
-
Standards MetCB,CCC,CE,EAC,ENEC,SELV
-
Operation ModeConstant Current
-
Operating Temperature-25°C~90°C
-
Warranty5 Year
-
Length4.21 in
-
Width1.26 in
-
Height1.57 in
-
Weight0.46 lb
::specification::
Frequently Asked Questions
Can I control the XLC-40-H-MA wirelessly from a smartphone or smart home hub?
Yes, the XLC-40-H-MA supports Matter 1.3 wireless dimming, enabling control from any Matter-compatible app, voice assistant, or smart home hub such as Apple Home, Amazon Alexa, or Google Home. It dims down to a minimum level specified in the Matter profile, and the current adjustment range spans 0.6–1.4A via dip switch for load matching.
Is the XLC-40-H-MA suitable for powering LED downlights in a Matter-based smart lighting installation?
The XLC-40-H-MA is a practical choice for smart downlight installations built on the Matter 1.3 protocol. It delivers 40W at 1050mA constant current with a CC voltage range of 9–54V, covering most common LED downlight modules. The flicker-free output is appropriate for living or office environments where light quality is important.
Can the XLC-40-H-MA power LED modules in a residential cove or accent lighting application with wireless dimming?
Yes, the XLC-40-H-MA suits cove and architectural LED accent lighting where scene-based wireless dimming is needed. Its 40W constant current output at 1050mA can drive LED arrays with forward voltages within the 9–54V CC range, and Matter 1.3 enables integration with automated scenes or occupancy controls without running a separate dimmer circuit.
Does the XLC-40-H-MA work at 100VAC input such as in Japan or on 100V circuits?
Yes, the XLC-40-H-MA accepts input from 100 to 305VAC, making it compatible with 100VAC supplies in Japan and other 100V markets, as well as standard 120VAC, 220VAC, and 230VAC mains. This broad input range makes it suitable for international projects without a separate step-up transformer.
What LED array voltage range is the XLC-40-H-MA designed to drive?
The XLC-40-H-MA operates with a CC output voltage range of 9–54V, accommodating a wide range of LED arrays and modules. The number of LEDs supportable in each string depends on the forward voltage of the individual LEDs — there is no fixed LED count. Always sum the forward voltages of your specific LEDs to verify they fall within the 9–54V window.
Can the XLC-40-H-MA be installed inside a recessed luminaire or ceiling fitting?
The XLC-40-H-MA is rated Class II for built-in installation inside a luminaire or enclosure. Its compact 107.0 × 32.0 × 40.0 mm body makes it easier to fit inside tighter recessed housings. It operates from -25°C to +90°C, covering elevated temperatures typical inside enclosed downlight fixtures.
