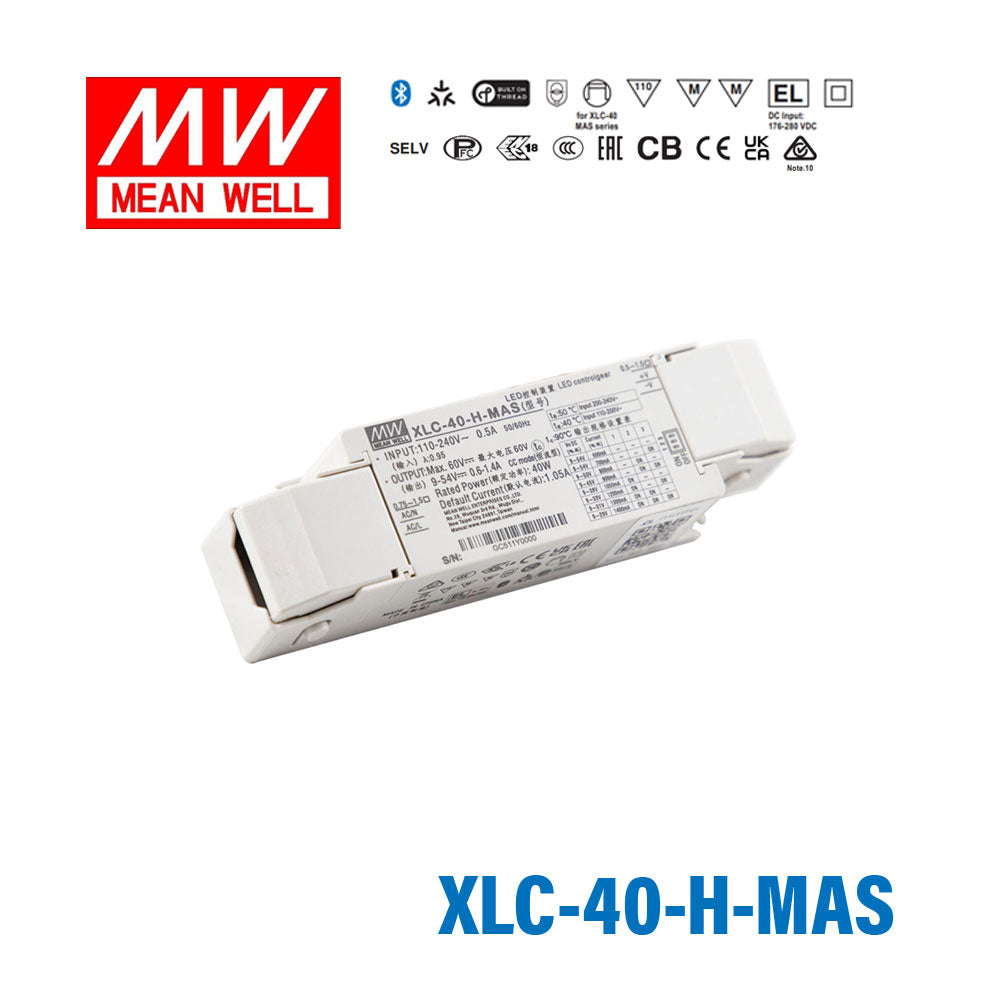

Mean Well XLC-40-H-MAS LED Driver 40W 1050mA 9~54V Constant Power, Current Setting by Dip Switch, Matter Wireless Dimming with Strain Relief

Features:

• Constant power mode output with multiple stage selectable by DIP switch
• Plastic housing with class II and PFC design
• Flicker free, complying with CE ErP directive
• Standby power consumption <0.5W
• Meet emergency lighting (EL) function application
• Minimum dimming level 0.5%
• Matter over thread, Matter 1.3 specification
• 5 years warranty

General Specification

AC input voltage range

100 - 305VAC 141 - 400VDC

AC inrush current (max.)

COLD START 10A(twidth= s measured at 50% Ipeak) at 230VAC 100μ ; Per NEMA 410

Short Circuit

Hiccup mode, recovers automatically after fault condition is removed

Over temperature protection

Stage 1: De-rating to 75% loading; Stage 2: De-rating to 50% loading. Recovers automatically after fault condition is removed.

Withstand voltage

I/P-O/P: 3.75KVAC

Working temperature

Tcase=-25 ~ 90 (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)

Safety standards

ENEC BS EN/EN61347-1, BS EN/EN61347-2-13(EL) appendix J suitable for emergency installations( DC); *B2-54!1 BS EN/EN62384, GB/T 19510.1, GB/T 19510.213, EAC TP TC 004 approved ; CSA C22.2 No. 250.13-12 ; Design refer to AS/NZS 61347-1, AS/NZS 61347-2-13;

Dimension (LxWxH)

147*40*32mm (L*W*H)
