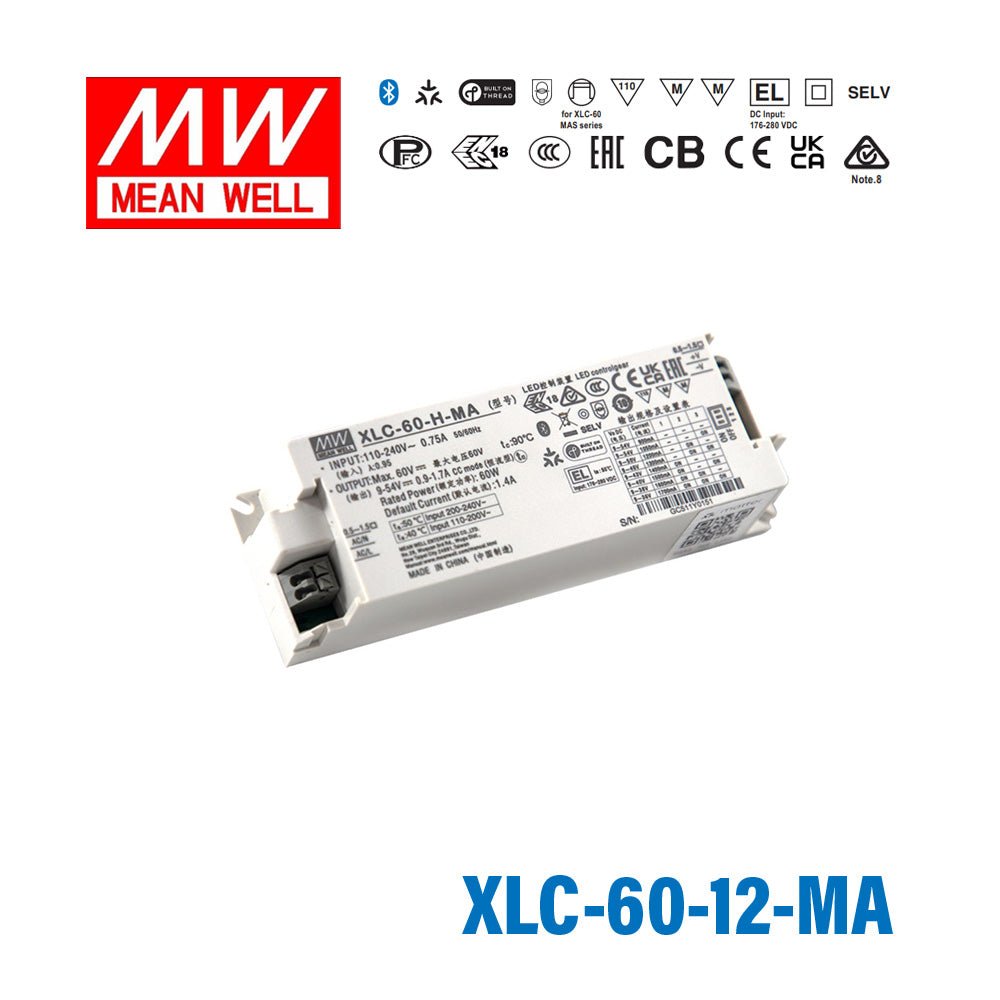

Mean Well XLC-60-12-MA LED Driver 60W 12V Constant Voltage LED Driver, Matter Wireless Dimming
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well XLC-60-12-MA LED Driver 60W 12V Constant Voltage LED Driv...
Description
Description
Key Features
- ✓Constant power mode output with multiple stage selectable by DIP switch (H-type)
- ✓Constant voltage mode output (12/24/48V)
- ✓Plastic housing with class II and PFC design
- ✓Flicker free, complying with CE ErP directive
- ✓Standby power consumption <0.5W
- ✓Meet emergency lighting (EL) application
- ✓Minimum dimming level 0.1% (12/24/48V)
- ✓Minimum dimming level 0.5% (H-type)
- ✓Matter over thread, Matter 1.3 specification
- ✓5 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well XLC Series
-
Power Rating60 Watt
-
Output Voltage12 Volt
-
Rated Current0.00 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlDimmable
-
Standards MetCB,CCC,CE,EAC,ENEC,SELV
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~90°C
-
Warranty5 Year
-
Length5.35 in
-
Width1.26 in
-
Height1.77 in
-
Weight0.71 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I control the XLC-60-12-MA wirelessly from a smart home hub?
Yes. The XLC-60-12-MA supports the Matter 1.3 specification, which is natively compatible with Apple Home, Google Home, Amazon Alexa, and other Matter-certified ecosystems. Once commissioned, you can dim the connected 12V LED load wirelessly without any additional dimming controller.
Is the XLC-60-12-MA suitable for dimmable 12V LED strip installations?
Yes. This driver provides constant voltage 12V output at up to 5A (60W) with a minimum dimming level of 0.1%, enabling very smooth low-end dimming of 12V LED strips. It is a good fit for architectural lighting, cove lighting, or accent strips where full dimming range is important.
Can the XLC-60-12-MA be used for 12V LED strips in a smart office lighting system?
Yes. The Matter 1.3 wireless dimming capability allows the driver to integrate directly into building automation or smart office systems without proprietary gateways. Its 60W output supports typical 12V LED strip runs; confirm the total strip load stays within 60W.
How much 12V LED strip can the XLC-60-12-MA power?
The maximum output is 60W at 12V and 5A. A 12V strip consuming 10W/m supports up to 6 meters; one rated at 14.4W/m supports approximately 4.1 meters. Always verify the strip's rated power per meter and keep the total load at or below 60W.
What input voltage range does the XLC-60-12-MA accept?
The XLC-60-12-MA accepts 100–305VAC input, covering worldwide mains voltages including 100V (Japan), 120V (North America), and 230V (Europe). The CC dimming function operates over a narrower 115–230V range.
Is the XLC-60-12-MA rated for outdoor or damp-location use?
No. The XLC-60-12-MA does not carry an IP ingress protection rating and is intended for dry or enclosed indoor installations. Exposure to moisture or rain should be avoided. For outdoor or damp environments, a driver with IP65 or higher protection is required.
What is the difference between the XLC-60-12-MA and XLC-60-12-MAS?
Both models share the same 60W, 12V, 5A output, Matter 1.3 wireless dimming, and 0.1% minimum dim level. The XLC-60-12-MAS adds a built-in strain-relief fitting and has a slightly larger footprint (176 × 32 × 45 mm vs. 136 × 32 × 45 mm) and higher weight (0.39 kg vs. 0.32 kg).
