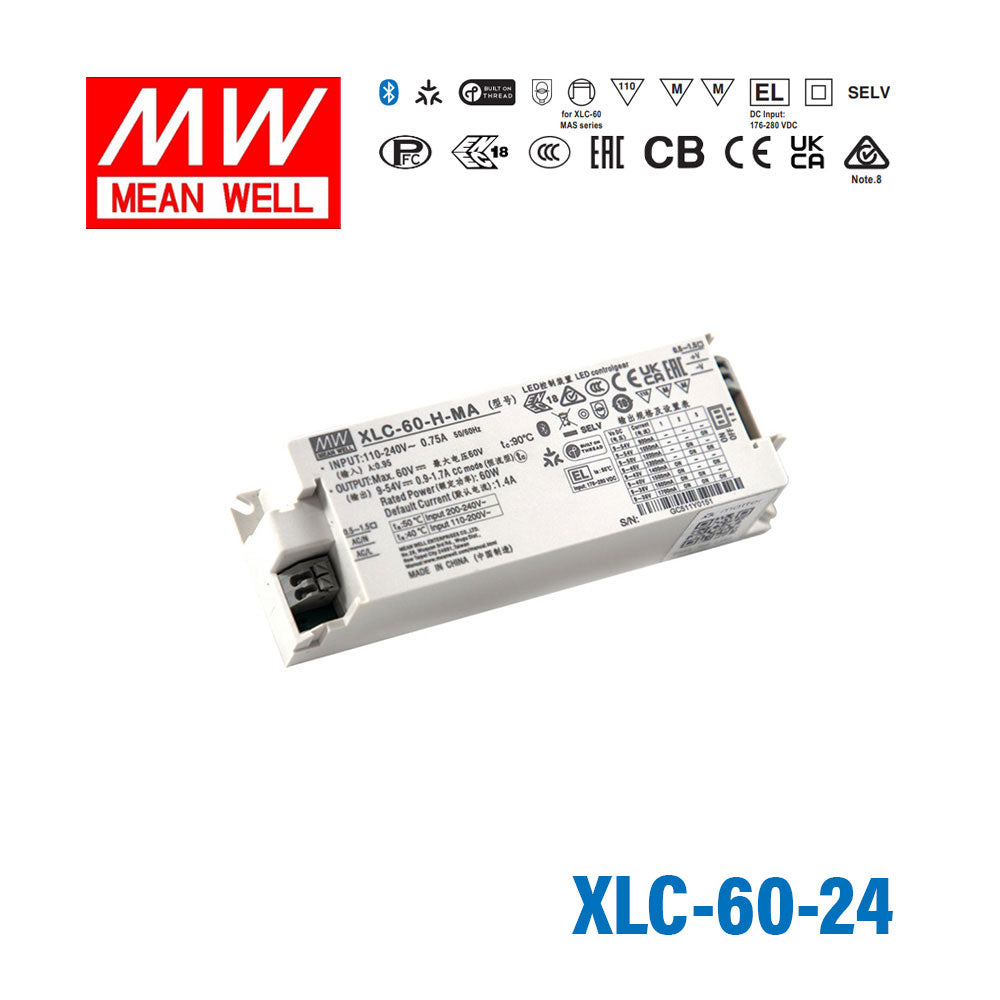

Mean Well XLC-60-24 LED Driver 60W 24V
Description
Description
Key Features
- ✓Constant power mode output with multiple stages selectable by dip switch or NFC setting(H-type)
- ✓Constant voltage mode output (12V/24V/48V)
- ✓Plastic housing with class II/2 and PFC design
- ✓Flicker-free, complying with IEEE1789/ErP
- ✓Standby power consumption <0.5W
- ✓Meet emergency lighting (EL) function application
- ✓Minimum dimming level 0.1% (DALI-2 DT6)
- ✓Dimming functions: 3 in 1 dimming (Dim-to-off) DALI-1 + Push dimming
- ✓5 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well XLC Series
-
Power Rating60 Watt
-
Output Voltage24 Volt
-
Rated Current2.5 Ampere
-
Input Voltage110V~305V
-
No of Output1
-
Dimming ControlNon Dimmable
-
Standards MetCB,CCC,CE,EAC,ENEC,SELV
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~90°C
-
Warranty5 Year
-
Length6.93 in
-
Width1.26 in
-
Height1.77 in
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the XLC-60-24 to power 24V LED strips in a retail shelf-edge lighting system?
Yes. The XLC-60-24 provides 60W at 24V constant voltage, which is the standard for many commercial-grade 24V LED strips. Its 2.5A output and flicker-free operation make it a practical fit for shelf-edge or display accent lighting. Keep the total strip load at or below 60W.
Is the XLC-60-24 suitable for powering 24V LED strips in architectural cove or linear lighting?
Yes. The constant voltage 24V output at 60W supports longer LED strip runs than 12V equivalents, making the XLC-60-24 well-suited for architectural cove, pelmet, or linear lighting applications. Its flicker-free feature ensures consistent light quality. Confirm total strip wattage is within 60W.
Can the XLC-60-24 drive 24V LED strips in illuminated signage?
Yes. The 60W/24V output is compatible with 24V LED strip modules commonly used in light boxes and illuminated signs. The wide input range of 110–305VAC allows use on North American 120V or European 230V mains. Verify the sign's total LED load stays within 60W.
How much 24V LED strip can the XLC-60-24 support?
The driver provides a maximum of 60W at 24V and 2.5A. For a 24V strip rated at 10W/m, that supports up to 6 meters; a strip rated at 14.4W/m supports approximately 4.1 meters. Check your specific strip's rated power per meter and do not exceed 60W total.
Is the XLC-60-24 rated for outdoor or damp-location use?
No. The XLC-60-24 does not carry an IP ingress protection rating and should only be installed in dry indoor or enclosed locations. It must be protected from moisture and rain. For outdoor or damp environments, a driver with IP65 or higher protection is required.
What is the operating temperature range of the XLC-60-24?
The XLC-60-24 operates from -25°C to +90°C. This range accommodates cold environments such as refrigerated cases as well as warm equipment enclosures. Adequate ventilation inside the mounting enclosure will help maintain temperatures within this range.
How does the XLC-60-24 compare to the XLC-60-12 for LED strip applications?
Both are 60W constant voltage drivers in the XLC-60 tier; the XLC-60-24 outputs 24V at 2.5A while the XLC-60-12 outputs 12V at 5A. The 24V variant supports longer strip runs with lower voltage drop over the same wire gauge. Choose based on the voltage requirement of your LED strip.
