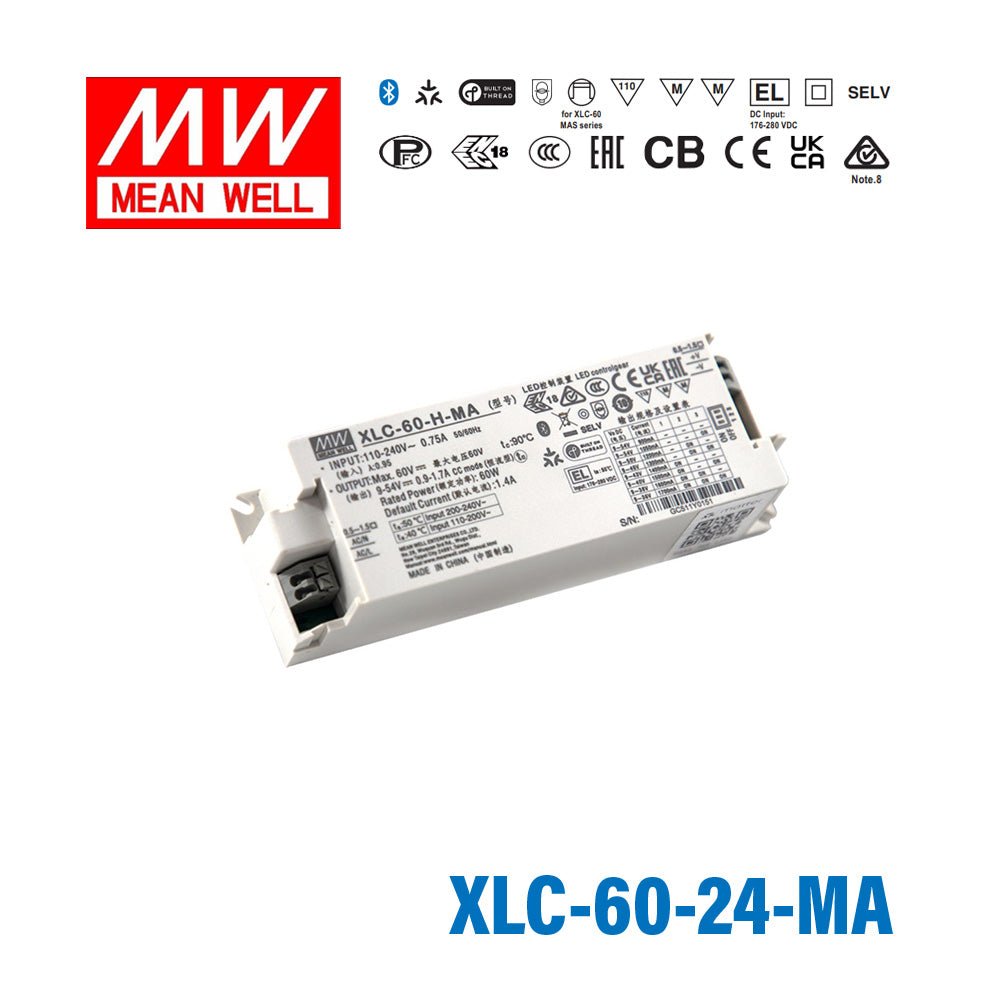

Mean Well XLC-60-24-MA LED Driver 60W 24V Constant Voltage LED Driver, Matter Wireless Dimming
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well XLC-60-24-MA LED Driver 60W 24V Constant Voltage LED Driv...
Description
Description
Key Features
- ✓Constant power mode output with multiple stage selectable by DIP switch (H-type)
- ✓Constant voltage mode output (12/24/48V)
- ✓Plastic housing with class II and PFC design
- ✓Flicker free, complying with CE ErP directive
- ✓Standby power consumption <0.5W
- ✓Meet emergency lighting (EL) application
- ✓Minimum dimming level 0.1% (12/24/48V)
- ✓Minimum dimming level 0.5% (H-type)
- ✓Matter over thread, Matter 1.3 specification
- ✓5 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well XLC Series
-
Power Rating60 Watt
-
Output Voltage24 Volt
-
Rated Current0.00 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlDimmable
-
Standards MetCB,CCC,CE,EAC,ENEC,SELV
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~90°C
-
Warranty5 Year
-
Length5.35 in
-
Width1.26 in
-
Height1.77 in
-
Weight0.71 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can the XLC-60-24-MA be used for wirelessly dimmable 24V LED strips in a smart home?
Yes. The XLC-60-24-MA supports Matter 1.3 wireless dimming, integrating natively with Apple Home, Google Home, Amazon Alexa, and other Matter-certified platforms. The 24V/2.5A (60W) constant voltage output is compatible with standard 24V dimmable LED strips.
Is the XLC-60-24-MA suitable for smart office 24V LED strip installations?
Yes. Matter 1.3 compatibility allows direct integration with building automation systems and smart lighting controllers, eliminating proprietary gateways. With 60W at 24V, it supports typical commercial 24V strip runs. The 0.1% minimum dim level provides a wide, smooth dimming range.
Can I use the XLC-60-24-MA to power 24V LED strips in a high-end residential project?
Yes. The combination of constant voltage 24V output, flicker-free operation, and Matter wireless dimming down to 0.1% makes this driver well-suited for residential installations where smooth, scene-configurable lighting is needed. Ensure total LED load is 60W or less.
How much 24V LED strip can the XLC-60-24-MA power?
The driver delivers a maximum of 60W at 24V and 2.5A. A 24V strip rated at 10W/m supports up to 6 meters; a 14.4W/m strip supports approximately 4.1 meters. Check your strip's rated power per meter and do not exceed 60W total load.
Does the XLC-60-24-MA work on both 120V and 230V mains?
Yes. The driver accepts 100–305VAC input, covering 120V North American and 230V European supplies. The Matter CC dimming function operates over the 115–230V range. Power output and dimming both function normally on standard residential and commercial mains voltages.
Can the XLC-60-24-MA be installed in a damp or outdoor location?
No. The XLC-60-24-MA has no IP ingress protection rating and is designed for dry, enclosed indoor installations only. Moisture exposure must be avoided. For outdoor or damp applications, select a driver with an IP65 or higher rating.
