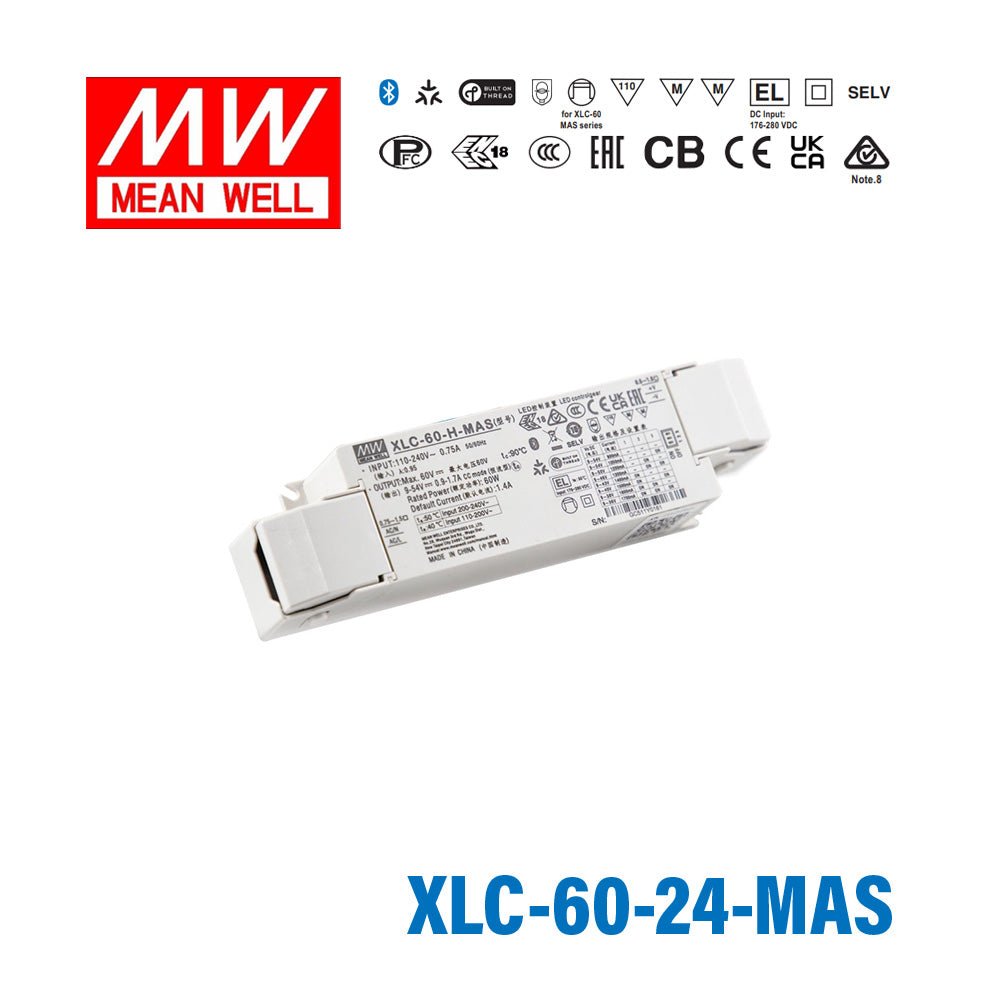

Mean Well XLC-60-24-MAS LED Driver 60W 24V Constant Voltage LED Driver, Matter Wireless Dimming with Strain Relief
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well XLC-60-24-MAS LED Driver 60W 24V Constant Voltage LED Dri...
Description
Description
Key Features
- ✓Constant power mode output with multiple stage selectable by DIP switch (H-type)
- ✓Constant voltage mode output (12/24/48V)
- ✓Plastic housing with class II and PFC design
- ✓Flicker free, complying with CE ErP directive
- ✓Standby power consumption <0.5W
- ✓Meet emergency lighting (EL) application
- ✓Minimum dimming level 0.1% (12/24/48V)
- ✓Minimum dimming level 0.5% (H-type)
- ✓Matter over thread, Matter 1.3 specification
- ✓5 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well XLC Series
-
Power Rating60 Watt
-
Output Voltage24 Volt
-
Rated Current0.00 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlDimmable
-
Standards MetCB,CCC,CE,EAC,ENEC,SELV
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~90°C
-
Warranty5 Year
-
Length6.93 in
-
Width1.26 in
-
Height1.77 in
-
Weight0.86 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can the XLC-60-24-MAS power 24V LED strips with full smart home dimming capability?
Yes. The XLC-60-24-MAS provides 60W at 24V constant voltage with Matter 1.3 wireless dimming, supporting ecosystems including Apple Home, Google Home, and Amazon Alexa. The 0.1% minimum dimming level delivers a broad, smooth range suitable for residential and commercial scenes.
Is the XLC-60-24-MAS suitable for 24V LED cove or wall-wash lighting in a hotel or restaurant?
Yes. The driver's constant voltage 24V output, wide operating temperature range (-25°C to +90°C), and matter-based wireless dimming make it a practical choice for hospitality lighting where scene control and light quality are priorities. Confirm total strip load remains within 60W.
Can the XLC-60-24-MAS be used in a smart retail display using 24V LED strips?
Yes. The 60W/24V output supports standard commercial 24V LED strip loads, and Matter 1.3 integration allows centralized dimming control without proprietary systems. Its strain-relief connector provides a secure cable termination suited for fixed retail fixtures.
How many meters of 24V LED strip can the XLC-60-24-MAS drive?
The maximum output is 60W at 24V and 2.5A. A 24V strip rated at 10W/m allows up to 6 meters; one rated at 14.4W/m allows approximately 4.1 meters. Always verify the strip's rated power per meter and keep total load at or below 60W.
What is the difference between the XLC-60-24-MA and XLC-60-24-MAS?
Both share the same 60W, 24V, 2.5A output, Matter 1.3 wireless dimming, and 0.1% minimum dim level. The XLC-60-24-MAS adds a built-in strain-relief connector and is physically larger (176 × 32 × 45 mm vs. 136 × 32 × 45 mm) and heavier (0.39 kg vs. 0.32 kg).
Is the XLC-60-24-MAS safe for installation in damp or outdoor environments?
No. The XLC-60-24-MAS does not have an IP ingress protection rating and is intended for dry, enclosed indoor locations only. It must be kept away from moisture, condensation, and rain. For outdoor or wet-rated installations, a driver with IP65 or higher protection is required.
